Toyota CELICA — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01210×4i199908-200208

SK20R11

main90919-01211×4i200208-200301

IFR6A11

main90919-01237×4i200301-200509

SK20R11

19500COIL ASSY, IGNITION

main90919-02238×4i199908-200208

91511K0625

main91511-K0625

3 parts on this diagram · 1 diagram in section

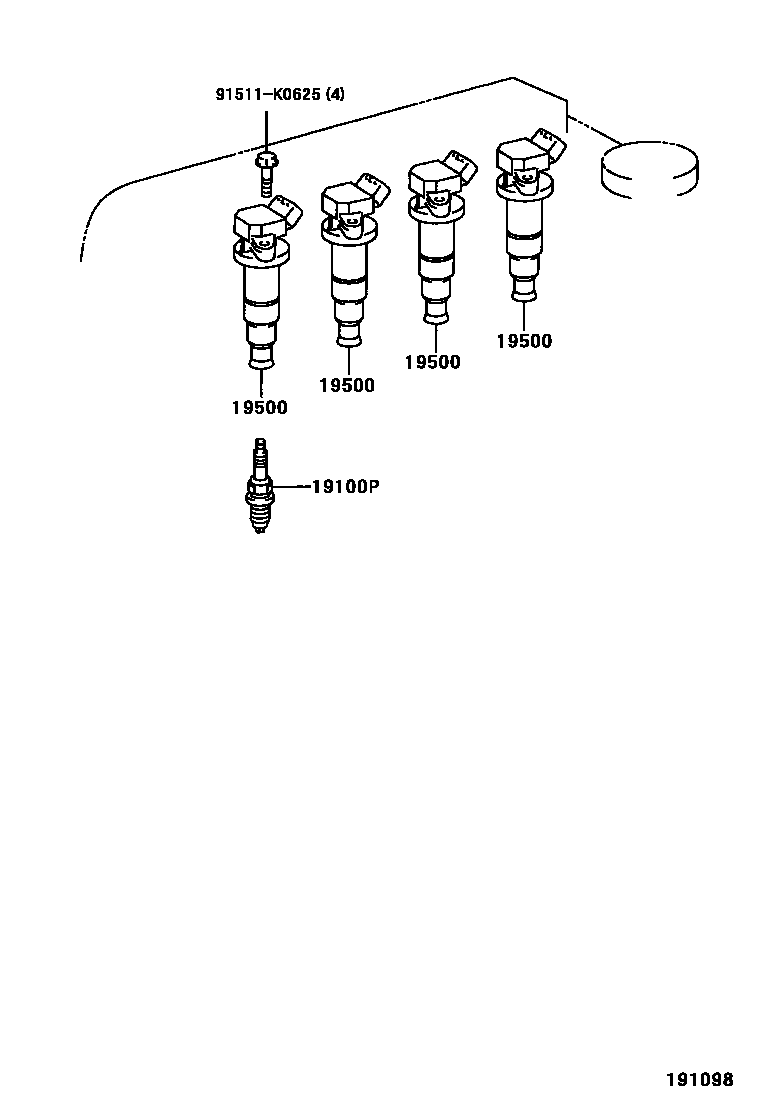

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota CELICA

This section contains 3 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota CELICA. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
