Toyota CELICA — IGNITION COIL & SPARK PLUG / GLOW PLUG

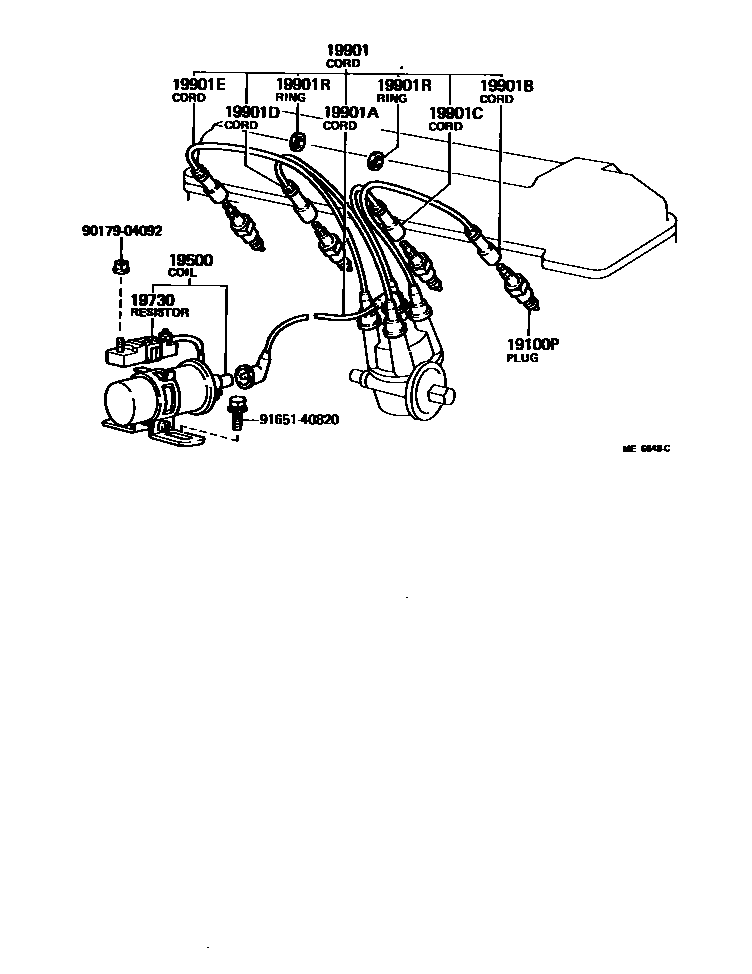

Parts diagram

19100PPLUG, SPARK

main90919-01045×4i197708-197908

W20EXR OR W20EXR-U,W20EXR

main90919-01051×4i197708-197908

W16EPR OR W16EXR-U,W16EPR

main90919-01059×4i197908-197909

W16EX-U,W16EX-U

main90919-01064×4i197908-197909

W16EXR-U,W16EXR-U

main90919-01084×4i197908-198107

W20EXR-U,W20EXR-U

19500COIL ASSY, IGNITION

main90919-02022i197708-197808

main90919-02033i197708-197908

main90919-02058i197804-197908

HONG KONG SPEC

main90919-02104i197808-198107

main90919-02111i197908-198107

main90919-02116i197908-198107

main90919-02118i197908-198107

19730RESISTOR, IGNITION COIL

main90919-04004i197708-197908

main90919-04027i197908-198107

main90919-04032i197708-198107

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90072-77614i197708-197908

main90072-77618i197708-197908

main90919-21002i197708-197808

main90919-21059i197708-197808

main90919-21151i197708-197811

main90919-21187i197808-198107

main90919-21191i197808-198107

main90919-21215i197811-198107

main90919-21219i197908-198107

main90919-21236i197908-198107

19901ACORD, COIL RESISTIVE

main90919-13023i197708-197908

main90919-13026i197708-197808

main90919-13070i197708-197811

main90919-13105i197808-198107

main90919-13117i197811-198107

main90919-13125i197908-198107

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90072-76840i197708-197908

main90072-76844i197708-197908

main90072-76848i197908-198107

main90919-12055i197708-197808

main90919-12146i197708-197811

main90919-12238i197908-198107

main90919-12265i197808-198107

main90919-12298i197811-198107

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90072-76841i197708-197908

main90072-76845i197708-197908

main90072-76849i197908-198107

main90919-12056i197708-197808

main90919-12146i197708-197811

main90919-12239i197908-198107

main90919-12266i197808-198107

main90919-12298i197811-198107

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90072-76842i197708-197908

main90072-76846i197708-197908

main90072-76850i197908-198107

main90919-12065i197708-197808

main90919-12146i197708-197811

main90919-12240i197908-198107

main90919-12267i197808-198107

main90919-12298i197811-198107

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90072-76843i197708-197908

main90072-76847i197708-197908

main90072-76851i197908-198107

main90919-12066i197708-197808

main90919-12080i197708-197808

main90919-12146i197708-197811

main90919-12241i197908-198107

main90919-12268i197808-198107

main90919-12269i197808-198107

main90919-12298i197811-198107

19901RRING, RUBBER SPARK PLUG RESISTIVE CORD

main90202-11067×2i197708-198107

9017904092

main90179-04092

9165140820

main91651-40820

12 parts on this diagram · 5 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota CELICA

This section contains 28 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota CELICA. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, RESISTOR, IGNITION COIL, CORD SET, COIL & SPARK, W/RESISTIVE, CORD, COIL RESISTIVE.
