Toyota CELICA — HORN

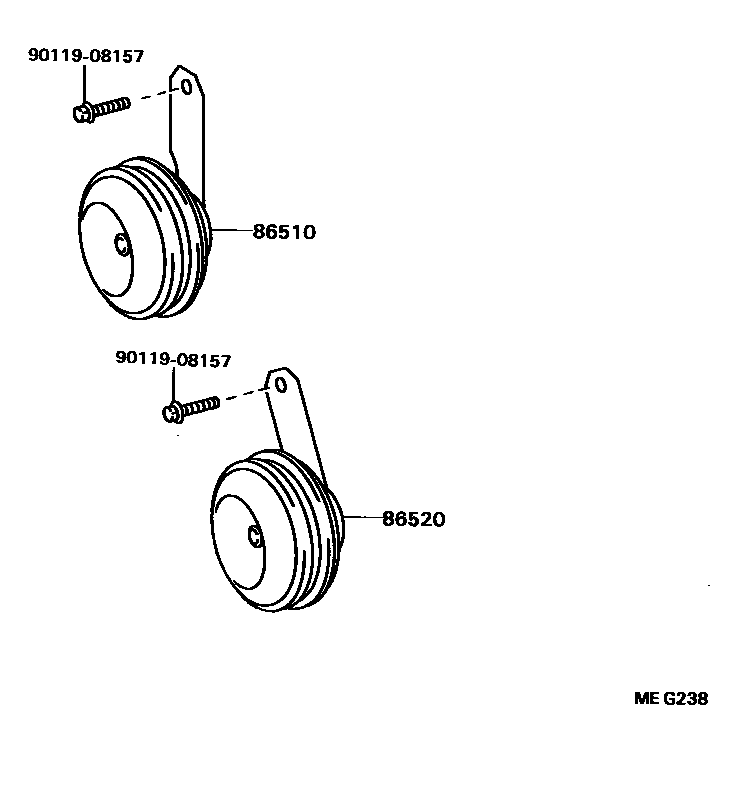

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-20150i198508-198605
MARUKO
main86510-20151i198605-198708
MARUKO
main86510-20160i198508-198708
DENSO
main86510-20190i198508-198708
RADIO;MW/SW OR MW/SW/FM
86520HORN ASSY, LOW PITCHED
main86520-20160i198508-198605
MARUKO
main86520-20161i198605-198708
MARUKO
main86520-20170i198508-198708
DENSO
main86520-20190i198508-198708
RADIO;MW/SW OR MW/SW/FM
9011908157
main90119-08157

3 parts on this diagram · 1 diagram in section

HORN for Toyota CELICA

This section contains 3 genuine Toyota parts for the HORN system of the Toyota CELICA. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
