Toyota CELICA — FUEL INJECTION SYSTEM

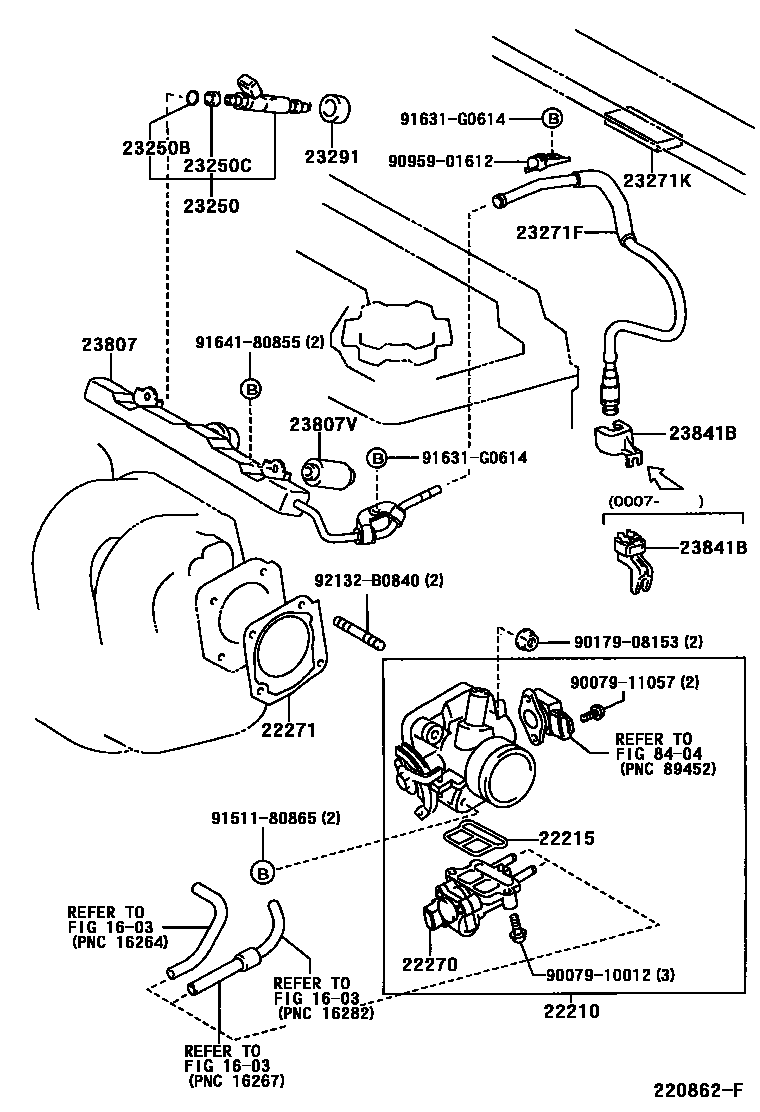

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22210BODY ASSY, THROTTLE

main22210-22040199908-200509

22215GASKET, THROTTLE BODY COVER

main22215-7A680199908-200509

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-22030199908-200303

main22270-22031200303-200509

22271GASKET, THROTTLE BODY

main22271-88600199908-200509

23250INJECTOR ASSY, FUEL

main23209-22060-01200208-200509

main23209-22060-02199908-200509

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024199908-200509

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005199908-200208

23271FHOSE, FUEL

main23271-88600199908-200008

main23271-88602200008-200509

23271KINSULATOR(FOR FUEL HOSE)

main27747-22010200007-200509

23291INSULATOR, INJECTOR VIBRATION

main23291-41010199908-200509

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-88600199908-200509

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08059199908-200509

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21020199908-200007

main23841-28010200007-200509

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9007910012

main90079-10012

9007911057

main90079-11057

9017908153

main90179-08153

9095901612

main90959-01612

9151180865

main91511-80865

91631G0614

main91631-G0614

9164180855

main91641-80855

92132B0840

main92132-B0840

23 parts on this diagram · 2 diagrams in section

FUEL INJECTION SYSTEM for Toyota CELICA

This section contains 33 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota CELICA. Key components include: RADIATOR & WATER OUTLET, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY COVER, VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY), GASKET, THROTTLE BODY.
