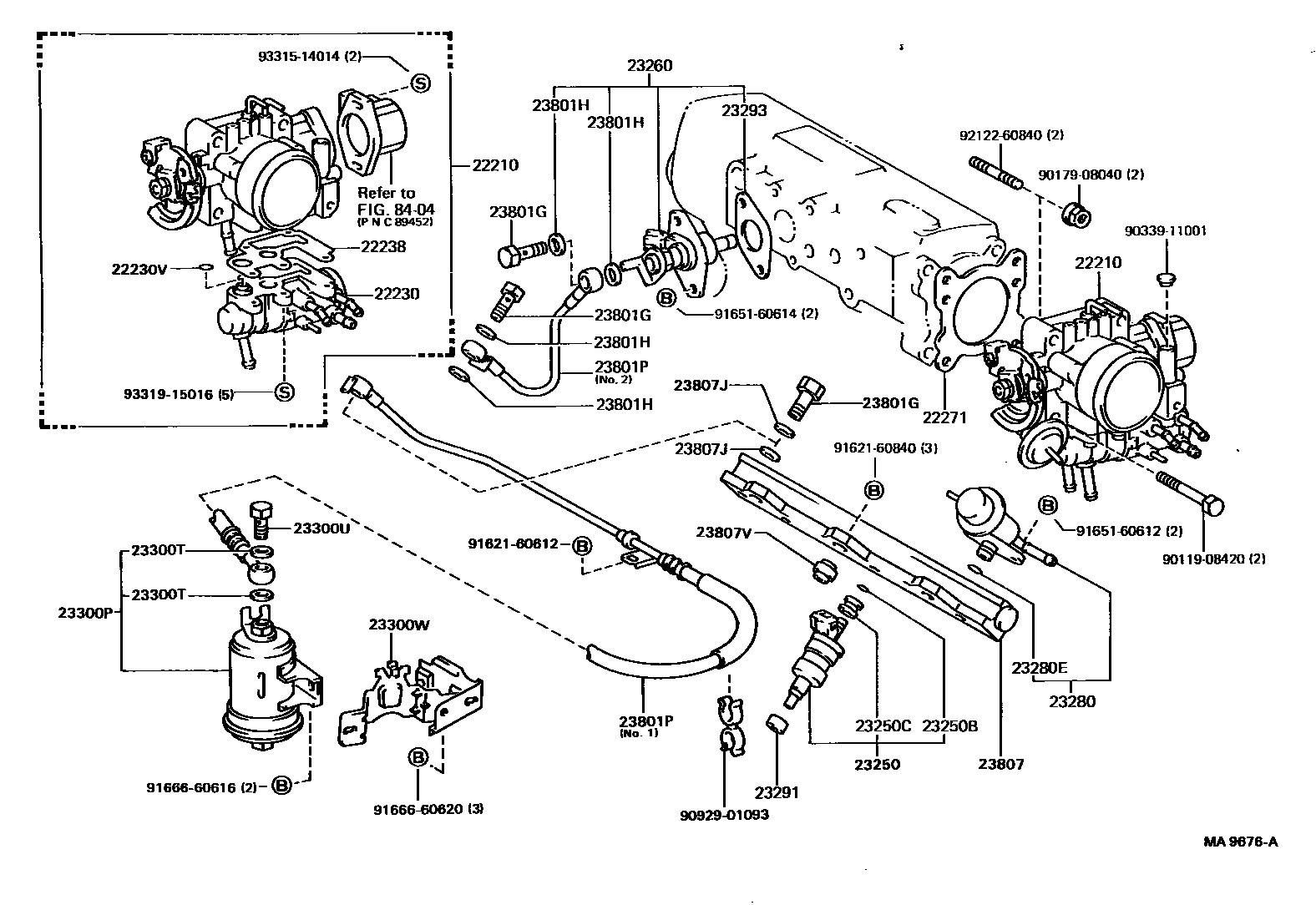

Toyota CELICA — FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

22210BODY ASSY, THROTTLE

main22210-16190i4AGEL..AT160198708-198908

main22210-74120i3SGELC..ST162;3SGEL..ST162..4FC198708-198908

main22210-74161i3SGEL..ST162..5F198708-198908

main22210-74220i3SFE..ST162..4FC198708-198908

main22210-74270i3SFE..ST162..5F198708-198908

22230VALVE ASSY, AUXILIARY AIR

main22230-16110i4AGEL..AT160198708-198908

main22230-74030i3SG#..ST162198708-198908

22230VRING, O(FOR AUXILIARY AIR VALVE)

main96711-19009i4AGEL..AT160198708-198908

22238GASKET, AUXILIARY AIR VALVE

main22238-16010i4AGEL..AT160198708-198908

sub22238-16020

main22238-74010i3SG#..ST162198708-198908

sub22238-74011

22271GASKET, THROTTLE BODY

main22271-16020i4AGEL..AT160198708-198908

main22271-74020i3SFE..ST162198708-198907

sub22271-74021

main22271-74021i3SFE..ST162198907-198908

sub22271-74022

main22271-88360i3SG#..ST162198708-198908

23250INJECTOR ASSY, FUEL

main23209-16070i4AGEL..AT160198708-198908

main23209-74020i3SGEL..ST162198708-198908

main23209-74050i3SGELC..ST162198708-198908

main23209-74060i3SFE..ST162198708-198908

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i4AGEL..AT160198708-198908

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i4AGEL..AT160198708-198908

23260INJECTOR ASSY, COLD START FUEL

main23260-19095i4AGEL..AT160198708-198908

main23260-79065i3SG#..ST162198708-198908

main23260-79105i3SFE..ST162198708-198908

23280REGULATOR ASSY, FUEL PRESSURE

main23280-16070i4AGEL..AT160198708-198908

main23280-74020i3SG#..ST162198708-198908

main23280-74031i3SFE..ST162198708-198908

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4AGEL..AT160198708-198908

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i3SFE,3SG#..ST162198708-198908

23293GASKET, COLD START INJECTOR

main23293-16010i4AGEL..AT160198708-198908

sub23293-16020

main23293-62020i3SFE,3SGELC..ST162198907-198908

main23293-74010i3SFE,3SG#..ST162198708-198908

sub23293-42010

23300PFILTER, FUEL(FOR EFI)

main23300-79095i3SFE,3SG#..ST162198708-198908

sub23300-79105

main23300-79155i4AGEL..AT160198708-198908

23300TGASKET(FOR FUEL FILTER)

main90430-12005i4AGEL..AT160198708-198908

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i4AGEL..AT160198708-198908

23300WBRACKET, FUEL FILTER

main23264-74020i3SFE,3SG#..ST162198708-198908

main23264-74030i4AGEL..AT160198708-198908

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-08003i4AGEL..AT160198708-198908

23801HGASKET(FOR FUEL PIPE)

main90430-08005i4AGEL..AT160198708-198908

main90430-08009i3SFE,3SGELC..ST162198708-198908

sub90430-08014

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-74021i3SFE..ST162198708-198908

main23801-88360i3SG#..ST162198708-198908

main23901-16060i4AGEL..AT160198708-198808

NO.2

sub23901-16070

main23901-16070i4AGEL..AT160198810-198908

NO.2

main23902-16070i4AGEL..AT160..LB198803-198908

NO.1

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-16060i4AGEL..AT160198708-198908

sub23807-16051

main23807-74030i3SFE..ST162198708-198908

main23814-88360i3SGELC..ST162198708-198908

sub23814-88361

main23814-88361i3SGEL..ST162198708-198908

23807JGASKET, PIPE FUEL DELIVARY INLET

main90201-12109i4AGEL..AT160198708-198908

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90560-11020i3SFE..ST162198708-198908

main90561-08009i4AGEL..AT160198708-198908

main90561-08024i3SG#..ST162198708-198908

8404

9011908420

main90119-08420

9017908040

main90179-08040

9033911001

main90339-11001

9092901093

main90929-01093

9162160612

main91621-60612

9162160840

main91621-60840

9165160612

main91651-60612

9165160614

main91651-60614

9166660616

main91666-60616

9166660620

main91666-60620

9212260840

main92122-60840

9331514014

main93315-14014

9331915016

main93319-15016

37 parts on this diagram · 4 diagrams in section
