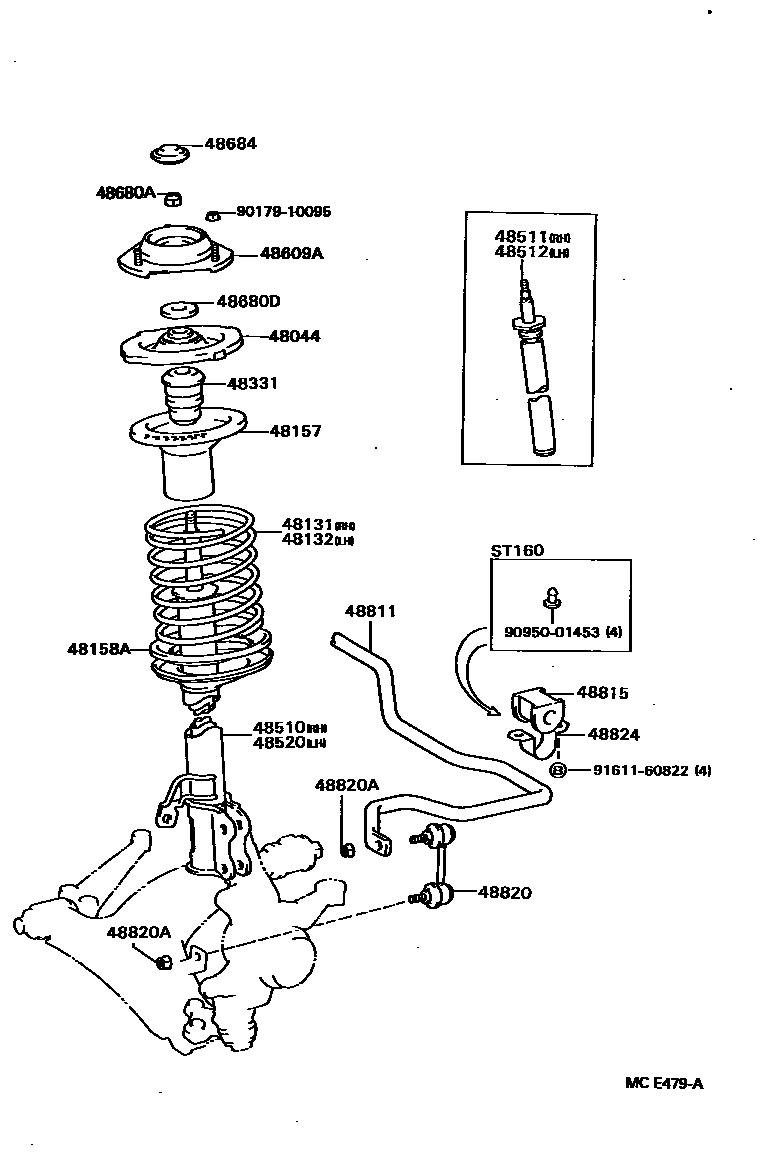

Toyota CELICA — FRONT SPRING & SHOCK ABSORBER
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157INSULATOR, FRONT COIL SPRING, UPPER
48158AINSULATOR, FRONT COIL SPRING, LOWER
48331BUMPER, FRONT SPRING, NO.1
48510ABSORBER ASSY, SHOCK, FRONT RH
HARSH ROAD PACKAGE
HARSH ROAD PACKAGE
48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
HARSH ROAD PACKAGE
48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
HARSH ROAD PACKAGE
48520ABSORBER ASSY, SHOCK, FRONT LH
HARSH ROAD PACKAGE
HARSH ROAD PACKAGE
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820LINK ASSY, FRONT STABILIZER
48820ANUT(FOR FRONT STABILIZER LINK)
48824BRACKET, STABILIZER, FRONT
9017910095
main90179-10095
9095001453
main90950-01453
9161160822
main91611-60822
22 parts on this diagram · 1 diagram in section
FRONT SPRING & SHOCK ABSORBER for Toyota CELICA
This section contains 22 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota CELICA. Key components include: SEAT SUB-ASSY, FRONT SPRING, NO.1, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER, INSULATOR, FRONT COIL SPRING, LOWER.
