Toyota CELICA — FRONT MOULDING

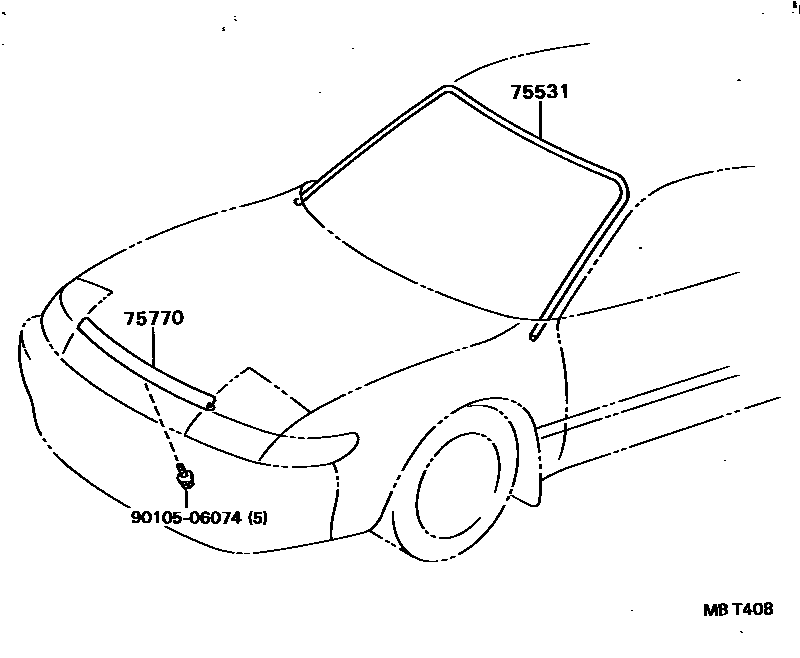

Parts diagram
75531MOULDING, WINDSHIELD, OUTER UPPER
main75531-20340i198910-199108
sub75531-20350
main75531-20350i199108-199311
75770MOULDING ASSY, HOOD, FRONT
main75770-20080i199108-199311
main75770-20100i198910-199108
sub75770-20080
9010506074
main90105-06074

3 parts on this diagram · 1 diagram in section
