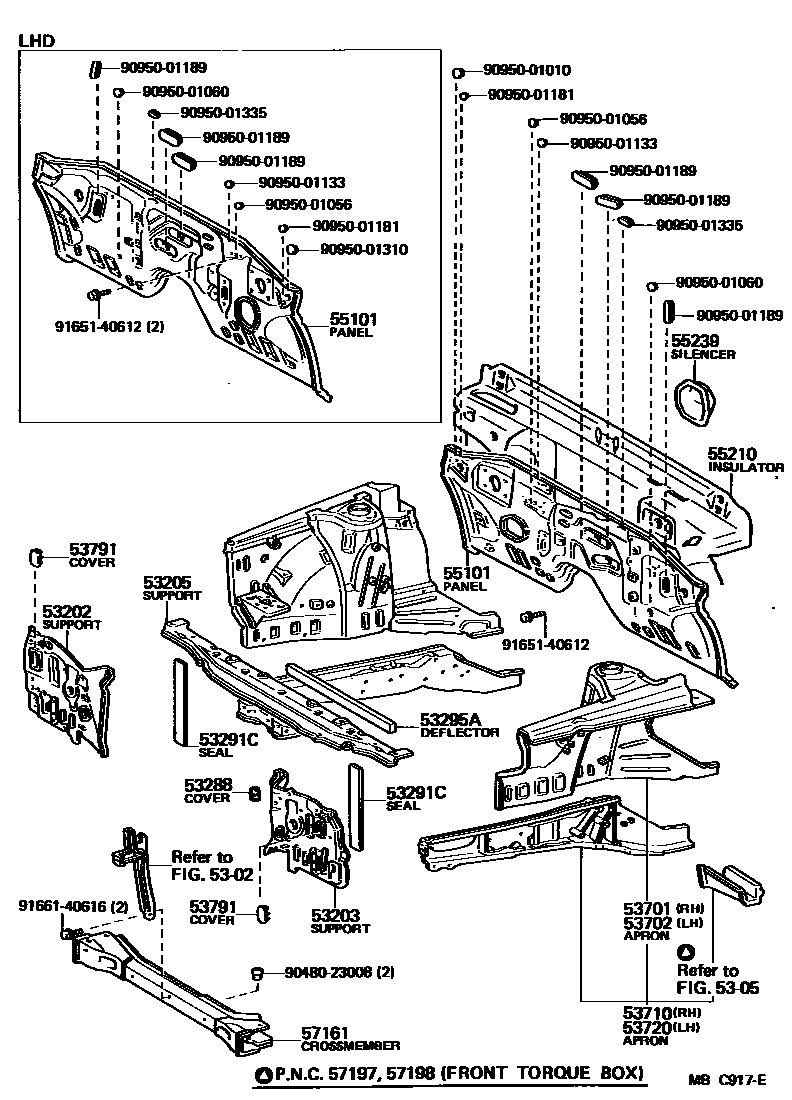

Toyota CELICA — FRONT FENDER APRON & DASH PANEL
5302HOOD & FRONT FENDER
5305FLOOR SIDE MEMBER
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53288COVER, POWER STEERING PIPE HOLE
main53288-14050iAA63,RA60;RA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198108-198507
53291CSEAL, RADIATOR SUPPORT TO FRAME
main53291-14020iRA61..RHD;AA63,RA60,65;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198108-198507
53295DEFLECTOR, RADIATOR LOWER AIR
53295ADEFLECTOR, RADIATOR UPPER AIR
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53710APRON ASSY, W/FRONT SIDE MEMBER, RH
53720APRON ASSY, W/FRONT SIDE MEMBER, LH
53791COVER, COOL AIR INTAKE HOLE
main53791-14010iRA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA);AA63,RA60,63,65,SA63,TA60198108-198507
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55239SILENCER, STEERING COLUMN HOLE COVER
57161CROSSMEMBER, FRONT
9048023008
main90480-23008
9095001010
main90950-01010
9095001056
main90950-01056
9095001060
main90950-01060
9095001133
main90950-01133
9095001181
main90950-01181
9095001189
main90950-01189
9095001310
main90950-01310
9095001335
main90950-01335
9165140612
main91651-40612
9166140616
main91661-40616
29 parts on this diagram · 2 diagrams in section
FRONT FENDER APRON & DASH PANEL for Toyota CELICA
This section contains 44 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CELICA. Key components include: HOOD & FRONT FENDER, FLOOR SIDE MEMBER, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER.
