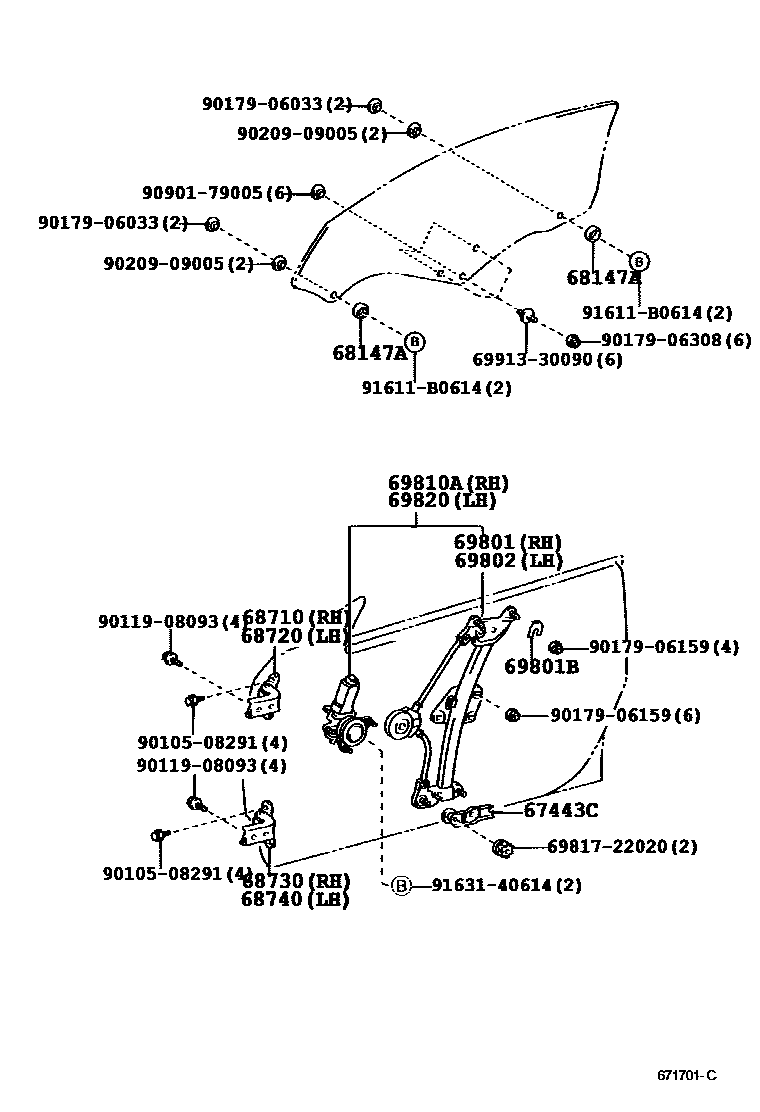

Toyota CELICA — FRONT DOOR WINDOW REGULATOR & HINGE

67443CPLATE, FRONT DOOR WINDOW GUIDE, LOWER

main67443-20110×2i200208-200509

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-20040×2i199908-200208

REAR

main68147-22010×2i199908-200208

FRONT

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150i199908-200208

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150i199908-200208

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12110i199908-200208

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12110i200208-200509

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20290i199908-200208

69801BSHIM, WINDOW REGULATOR

main63277-20030i199908-200208

T=1.0

main63277-20050i199908-200208

T=2.0

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20310i199908-200208

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-20410i199908-200208

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-20420i199908-200208

6981722020PLATE, QUARTER WINDOW REGULATOR BASE, RH

main69817-22020

6991330090BOLT, FRONT DOOR GLASS SETTING

main69913-30090

9010508291

main90105-08291

9011908093

main90119-08093

9017906033

main90179-06033

9017906159

main90179-06159

9017906308

main90179-06308

9020909005

main90209-09005

9090179005

main90901-79005

91611B0614

main91611-B0614

9163140614

main91631-40614

22 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota CELICA

This section contains 22 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota CELICA. Key components include: PLATE, FRONT DOOR WINDOW GUIDE, LOWER, STOP, FRONT DOOR GLASS, UPPER, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH.
