Toyota CELICA — FRONT DOOR PANEL & GLASS

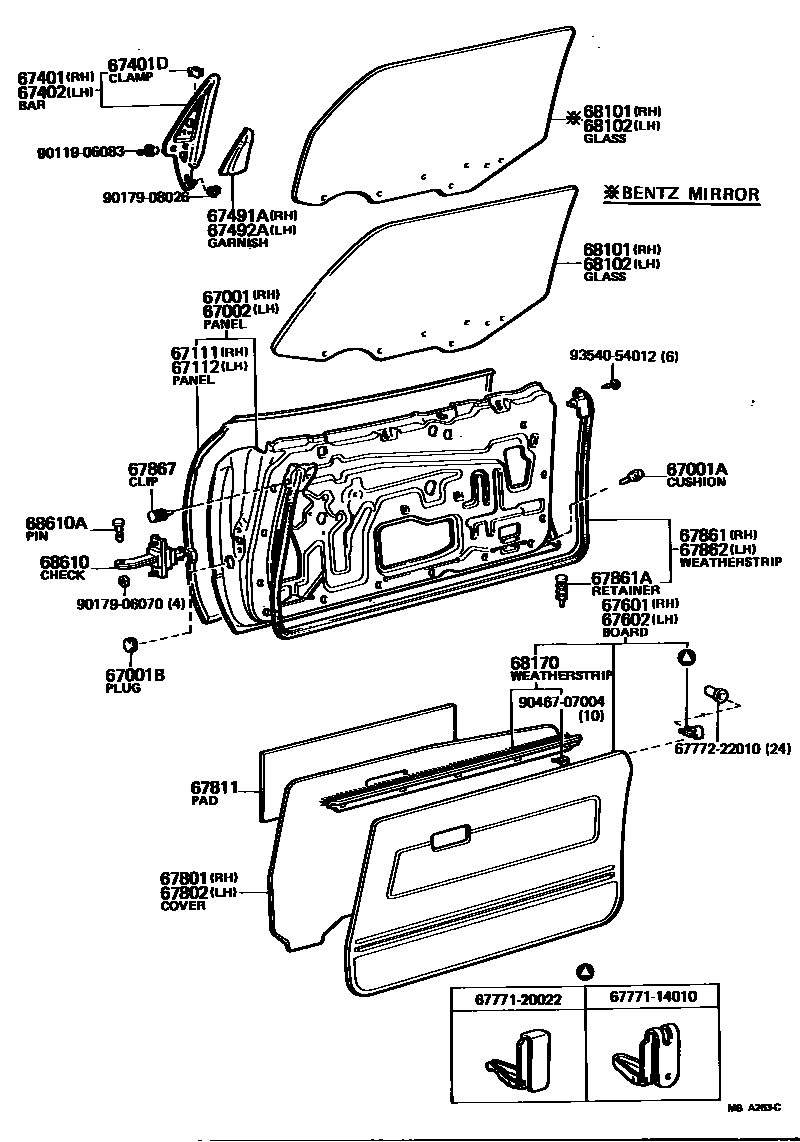

Parts diagram
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-14160i197708-197907
W/O MIRROR HOLE
main67001-14161i197908-198107
main67001-14162i197907-197908
W/O MIRROR HOLE
main67001-14171i198012-198107
SAUDI ARABIA SPEC
main67001-14180i197708-197907
main67001-14182i197907-197908
main67001-14190i197708-197907
W/MIRROR HOLE
main67001-14191i197907-197908
W/MIRROR HOLE
67001ACUSHION, FRONT DOOR PANEL
main90541-09121×4i197708-198107
67001BPLUG, HOLE(FOR FRONT DOOR PANEL)
main90950-01061i197708-198107
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-14180i197708-197907
W/O MIRROR HOLE
main67002-14181i197908-198107
main67002-14182i197907-197908
W/O MIRROR HOLE
main67002-14191i198012-198107
SAUDI ARABIA SPEC
main67002-14200i197708-197907
W/MIRROR HOLE
main67002-14201i197907-197908
W/MIRROR HOLE
main67002-14210i197708-197907
main67002-14211i197907-197908
67111PANEL, FRONT DOOR, OUTER RH
main67111-14110i197708-197907
main67111-14111i197907-198107
main67111-14140i197708-197907
main67111-14141i198012-198107
SAUDI ARABIA SPEC
67112PANEL, FRONT DOOR, OUTER LH
main67112-14120i197708-197907
main67112-14121i197907-198107
main67112-14150i197708-197907
main67112-14151i198012-198107
SAUDI ARABIA SPEC
67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
main67401-14080i197908-198107
main67401-14090i197908-198107
W/HOLE COVER PLATE
67401DCLAMP(FOR FRONT DOOR WINDOW BAR)
main90463-05021×6i197908-198107
67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
main67402-14080i197908-198107
main67402-14090i197908-198107
W/HOLE COVER PLATE
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-14010i197908-198107
main67491-14020i197908-198107
REMOTE CONTROL MIRROR
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-14010i197908-198107
main67492-14020i197908-198107
REMOTE CONTROL MIRROR
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-14660-01i197908-198107
BLACK,BLACK,TRIM2#
main67610-14660-06i197908-198107
LIGHT BROWN,BROWN,TRIM4#
main67610-14660-14i197908-198107
BLUE,BLUE,TRIM8#
main67610-14681-01i198008-198107
SPECIAL PACKAGE,BLACK,BLACK,TRIM2#
main67610-14681-04i198008-198107
SPECIAL PACKAGE,BLUE,BLUE,TRIM8#
main67610-14681-06i198008-198107
SPECIAL PACKAGE,LIGHT BROWN,BROWN,TRIM4#
main67610-14690-01i197708-198107
BLACK,BLACK,TRIM2#
main67610-14690-04i197708-197908
BLUE,BLUE,TRIM8#
main67610-14690-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main67610-14690-14i197908-198107
BLUE,BLUE,TRIM8#
main67610-14700-01i197708-197908
BLACK,BLACK,TRIM2#
main67610-14700-04i197708-197908
BLUE,BLUE,TRIM8#
main67610-14700-06i197708-197908
LIGHT BROWN,BROWN,TRIM4#
main67610-14701-01i197908-198107
BLACK,BLACK,TRIM2#
main67610-14701-04i197908-198107
BLUE,BLUE,TRIM8#
main67610-14701-06i197908-198107
LIGHT BROWN,BROWN,TRIM4#
main67610-14710-01i197708-197908
BLACK,BLACK,TRIM2#
main67610-14710-04i197708-197908
BLUE,BLUE,TRIM8#
main67610-14710-06i197708-197908
LIGHT BROWN,BROWN,TRIM4#
main67610-14711-01i197908-198107
BLACK,BLACK,TRIM2#
main67610-14711-04i198003-198003
SPECIAL CAMPAIGN,BLUE,BLUE,TRIM8#
main67610-14711-06i198003-198003
SPECIAL CAMPAIGN,LIGHT BROWN,BROWN,TRIM4#
main67610-14720-01i197708-197908
BLACK,BLACK,TRIM2#
main67610-14720-04i197708-197908
BLUE,BLUE,TRIM8#
main67610-14720-06i197708-197908
LIGHT BROWN,BROWN,TRIM4#
main67610-14880-01i197802-197908
FABRIC SEAT,BLACK,BLACK,TRIM2#
main67610-14880-04i197802-197908
FABRIC SEAT,BLUE,BLUE,TRIM8#
main67610-14880-06i197802-197908
FABRIC SEAT,LIGHT BROWN,BROWN,TRIM4#
main67610-14881-01i197908-198107
FABRIC SEAT,BLACK,BLACK,TRIM2#
main67610-14881-04i197908-198107
FABRIC SEAT,BLUE,BLUE,TRIM8#
main67610-14881-06i197908-198107
FABRIC SEAT,LIGHT BROWN,BROWN,TRIM4#
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-14410-01i197708-198107
BLACK,BLACK,TRIM2#
main67620-14410-04i197708-197908
BLUE,BLUE,TRIM8#
main67620-14410-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main67620-14410-14i197908-198107
BLUE,BLUE,TRIM8#
main67620-14420-01i197708-198107
BLACK,BLACK,TRIM2#
main67620-14420-04i197708-197908
BLUE,BLUE,TRIM8#
main67620-14420-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main67620-14420-14i197908-198107
BLUE,BLUE,TRIM8#
main67620-14440-01i197708-197908
BLACK,BLACK,TRIM2#
main67620-14440-04i197708-197908
BLUE,BLUE,TRIM8#
main67620-14440-06i197708-197908
LIGHT BROWN,BROWN,TRIM4#
main67620-14480-01i197708-197908
BLACK,BLACK,TRIM2#
main67620-14480-04i197708-197908
BLUE,BLUE,TRIM8#
main67620-14480-06i197708-197908
LIGHT BROWN,BROWN,TRIM4#
main67620-14481-01i197908-198107
BLACK,BLACK,TRIM2#
main67620-14481-04i197908-198107
BLUE,BLUE,TRIM8#
main67620-14481-06i197908-198107
LIGHT BROWN,BROWN,TRIM4#
main67620-14670-01i197802-197908
FABRIC SEAT,BLACK,BLACK,TRIM2#
main67620-14670-04i197802-197908
FABRIC SEAT,BLUE,BLUE,TRIM8#
main67620-14670-06i197802-197908
FABRIC SEAT,LIGHT BROWN,BROWN,TRIM4#
main67620-14671-01i197908-198107
FABRIC SEAT,BLACK,BLACK,TRIM2#
main67620-14671-04i197908-198107
FABRIC SEAT,BLUE,BLUE,TRIM8#
main67620-14671-06i197908-198107
FABRIC SEAT,LIGHT BROWN,BROWN,TRIM4#
main67620-14800-01i198003-198003
SPECIAL CAMPAIGN,BLACK,BLACK,TRIM2#
main67620-14800-04i197908-198107
BLUE,BLUE,TRIM8#
main67620-14800-06i198003-198003
SPECIAL CAMPAIGN,LIGHT BROWN,BROWN,TRIM4#
main67620-1B050-01i198008-198107
SPECIAL PACKAGE,BLACK,BLACK,TRIM2#
main67620-1B050-04i198008-198107
SPECIAL PACKAGE,BLUE,BLUE,TRIM8#
main67620-1B050-06i198008-198107
SPECIAL PACKAGE,LIGHT BROWN,BROWN,TRIM4#
67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
main67831-14080i197708-198107
67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
main67831-14080i197708-198107
67811PAD, FRONT DOOR SILENCER
main67811-20060×2i197708-197710
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-14150i197708-198107
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
main67868-30040×48i197708-198107
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-14150i197708-198107
67867CLIP, DOOR WEATHERSTRIP
main67869-30020×2i197708-198107
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68111-14160i197708-198107
*TT,T=5.0
main68111-14170i197708-197908
*TEM,T=5.0
main68111-14180i197708-198107
*TT,T=5.0
main68111-14210i197708-197908
*TEM,T=5.0
main68111-14220i197908-198107
*TT,T=5.0,BENTZ MIRROR
main68111-14230i197908-198107
*TT,T=5.0,BENTZ MIRROR
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68112-14170i197708-197908
*TT,T=5.0
main68112-14180i197708-197908
*TEM,T=5.0
main68112-14190i197908-198107
*TT,T=5.0
main68112-14220i197708-197908
*TEM,T=5.0
main68112-14230i197908-198107
*TT,T=5.0,BENTZ MIRROR
main68112-14240i197908-198107
*TT,T=5.0,BENTZ MIRROR
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68170-14100i197708-198005
RH
main68170-14101i198005-198107
RH
main68220-14080i197708-198005
LH
main68220-14081i198005-198107
LH
68610CHECK ASSY, FRONT DOOR
main68610-14020×2i197708-198107
68610APIN(FOR FRONT DOOR CHECK)
main68617-22010×2i197708-198107
6777114010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-14010
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9011906083
main90119-06083
9017906070
main90179-06070
9017908026
main90179-08026
9046707004
main90467-07004
9354054012
main93540-54012

33 parts on this diagram · 1 diagram in section

FRONT DOOR PANEL & GLASS for Toyota CELICA

This section contains 33 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota CELICA. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PLUG, HOLE(FOR FRONT DOOR PANEL), PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH.
