Toyota CELICA — FRONT DOOR LOCK & HANDLE

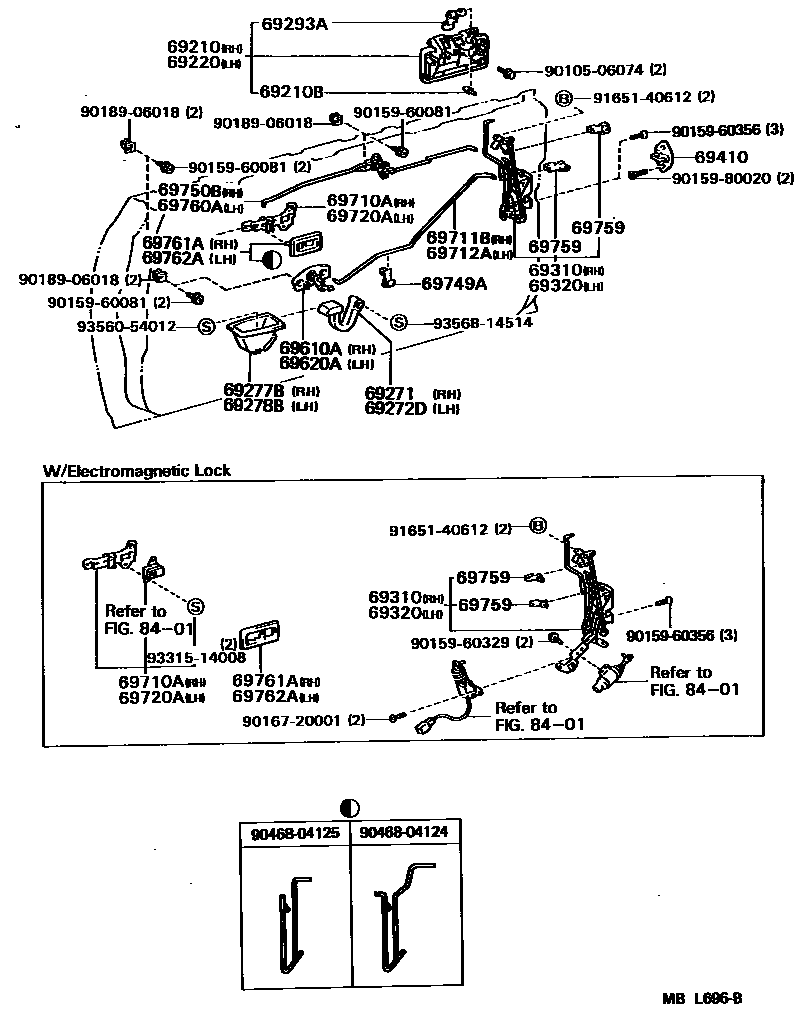

Parts diagram
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-20140i198708-198908
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
main90541-03021i198708-198908
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-20140i198708-198908
69271HANDLE, FRONT DOOR INSIDE, RH
main69271-20090-01i198708-198908
NEW BLACK,TRIM2#
sub69271-20090
main69271-20090-04i198708-198908
DEEP BLUE,TRIM8#
sub69271-20090
main69271-20090-05i198708-198908
DARK BEIGE,TRIM4#
sub69271-20090
69272DHANDLE, FRONT DOOR INSIDE, LH
main69272-20060-01i198708-198908
NEW BLACK,TRIM2#
sub69272-20060
main69272-20060-04i198708-198908
DEEP BLUE,TRIM8#
sub69272-20060
main69272-20060-05i198708-198908
DARK BEIGE,TRIM4#
sub69272-20060
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69277-20030-01i198708-198908
BLACK,TRIM2#
sub69277-20030
main69277-20030-04i198708-198908
DEEP BLUE,TRIM8#
sub69277-20030
main69277-20030-05i198708-198908
DARK BEIGE,TRIM4#
sub69277-20030
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69278-20030-01i198708-198908
BLACK,TRIM2#
sub69278-20030
main69278-20030-04i198708-198908
DEEP BLUE,TRIM8#
sub69278-20030
main69278-20030-05i198708-198908
DARK BEIGE,TRIM4#
sub69278-20030
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12030i198708-198908
RH
main69293-12040i198708-198908
LH
69310LOCK ASSY, FRONT DOOR, RH
main69310-20310i198708-198908
main69310-20341i198708-198908
W(ELECTROMAGNETIC LOCK)
main69310-20350i198708-198908
W(ELECTROMAGNETIC LOCK)
main69310-20390i198708-198908
main69310-20400i198708-198908
W(ELECTROMAGNETIC LOCK)
69320LOCK ASSY, FRONT DOOR, LH
main69320-20320i198708-198908
main69320-20341i198708-198908
W(ELECTROMAGNETIC LOCK)
main69320-20350i198708-198908
W(ELECTROMAGNETIC LOCK)
main69320-20390i198708-198908
main69320-20400i198708-198908
W(ELECTROMAGNETIC LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-12050i198708-198908
69610ACONTROL ASSY, FRONT DOOR LOCK REMOTE, RH
main69610-20090i198708-198908
69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH
main69620-20060i198708-198908
69710ALEVER ASSY, FRONT DOOR LOCK CONTROL, RH
main69710-20050-01i198708-198908
W(ELECTROMAGNETIC LOCK),NEW BLACK,TRIM2#
main69710-20050-04i198708-198908
W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8#
main69710-20050-05i198708-198908
W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4#
main69710-20060-01i198708-198908
NEW BLACK,TRIM2#
main69710-20060-04i198708-198908
DEEP BLUE,TRIM8#
main69710-20060-05i198708-198908
DARK BEIGE,TRIM4#
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
main69711-20100i198708-198908
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
main69712-20100i198708-198908
69720ALEVER ASSY, FRONT DOOR LOCK CONTROL, LH
main69720-20050-01i198708-198908
NEW BLACK,TRIM2#
main69720-20050-01i198708-198908
W(ELECTROMAGNETIC LOCK),NEW BLACK,TRIM2#
main69720-20050-04i198708-198908
DEEP BLUE,TRIM8#
main69720-20050-04i198708-198908
W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8#
main69720-20050-05i198708-198908
DARK BEIGE,TRIM4#
main69720-20050-05i198708-198908
W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4#
main69720-20060-01i198708-198908
NEW BLACK,TRIM2#
main69720-20060-04i198708-198908
DEEP BLUE,TRIM8#
main69720-20060-05i198708-198908
DARK BEIGE,TRIM4#
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
main69749-20020i198708-198908
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-20010i198708-198908
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-20190i198708-198908
OPEN LINK,RH
sub69759-20200
main69759-20200i198708-198908
OPEN LINK,LH
main69759-24050i198708-198908
LOCKING LINK,RH
main69759-24060i198708-198908
LOCKING LINK,LH
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
main69760-20010i198708-198908
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
main69761-14010-01i198708-198908
W(ELECTROMAGNETIC LOOK),NEW BLACK,TRIM2#
sub69761-14010
main69761-14010-04i198708-198908
W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8#
sub69761-14010
main69761-14010-05i198708-198908
W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4#
sub69761-14010
main69761-14020-01i198708-198908
BLACK,TRIM2#
sub69761-14020
main69761-14020-04i198708-198908
DEEP BLUE,TRIM8#
sub69761-14020
main69761-14020-05i198708-198908
DARK BEIGE,TRIM4#
sub69761-14020
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
main69762-14010-01i198708-198908
W(ELECTROMAGNETIC LOOK),NEW BLACK,TRIM2#
sub69762-14010
main69762-14010-04i198708-198908
W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8#
sub69762-14010
main69762-14010-04i198708-198908
W(ELECTROMAGNETIC LOOK),DEEP BLUE,TRIM8#
sub69762-14010
main69762-14010-05i198708-198908
W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4#
sub69762-14010
main69762-14010-05i198708-198908
W(ELECTROMAGNETIC LOOK),DARK BEIGE,TRIM4#
sub69762-14010
main69762-14020-01i198708-198908
BLACK,TRIM2#
sub69762-14020
main69762-14020-04i198708-198908
DEEP BLUE,TRIM8#
sub69762-14020
main69762-14020-05i198708-198908
DARK BEIGE,TRIM4#
sub69762-14020
8401
9010506074
main90105-06074
9015960081
main90159-60081
9015960329
main90159-60329
9015960356
main90159-60356
9015980020
main90159-80020
9016720001
main90167-20001
9018906018
main90189-06018
9046804124
main90468-04124
9046804125
main90468-04125
9165140612
main91651-40612
9331514008
main93315-14008
9356054012
main93560-54012
9356814514
main93568-14514

37 parts on this diagram · 1 diagram in section
