Toyota CELICA — FRONT BUMPER & BUMPER STAY

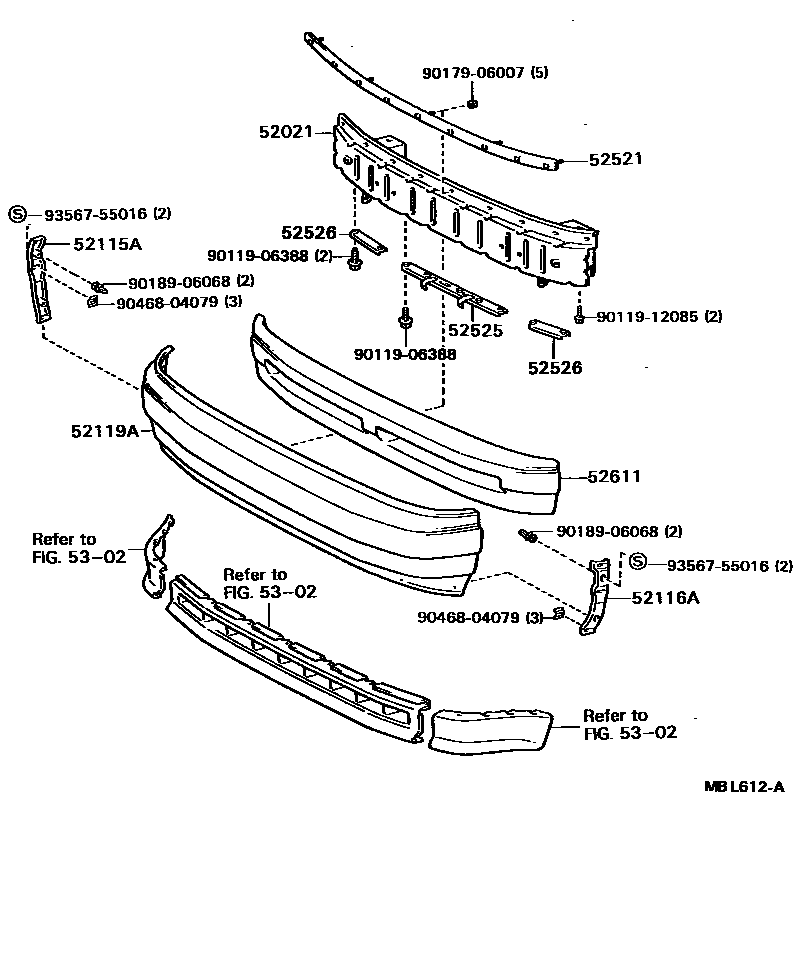

Parts diagram

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20110i198708-198808

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20170i198708-198808

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-20150i198708-198808

52119ACOVER, FRONT BUMPER

main52119-20907i198708-198808

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-20070i198708-198808

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52506-20090i198708-198808

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-20040×2i198708-198808

52611ABSORBER, FRONT BUMPER ENERGY

main52611-20070i198708-198808

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9011906388

main90119-06388

9011912085

main90119-12085

9017906007

main90179-06007

9018906068

main90189-06068

9046804079

main90468-04079

9356755016

main93567-55016

15 parts on this diagram · 1 diagram in section

FRONT BUMPER & BUMPER STAY for Toyota CELICA

This section contains 15 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota CELICA. Key components include: REINFORCEMENT SUB-ASSY, FRONT BUMPER, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER, RETAINER, FRONT BUMPER, UPPER CENTER.
