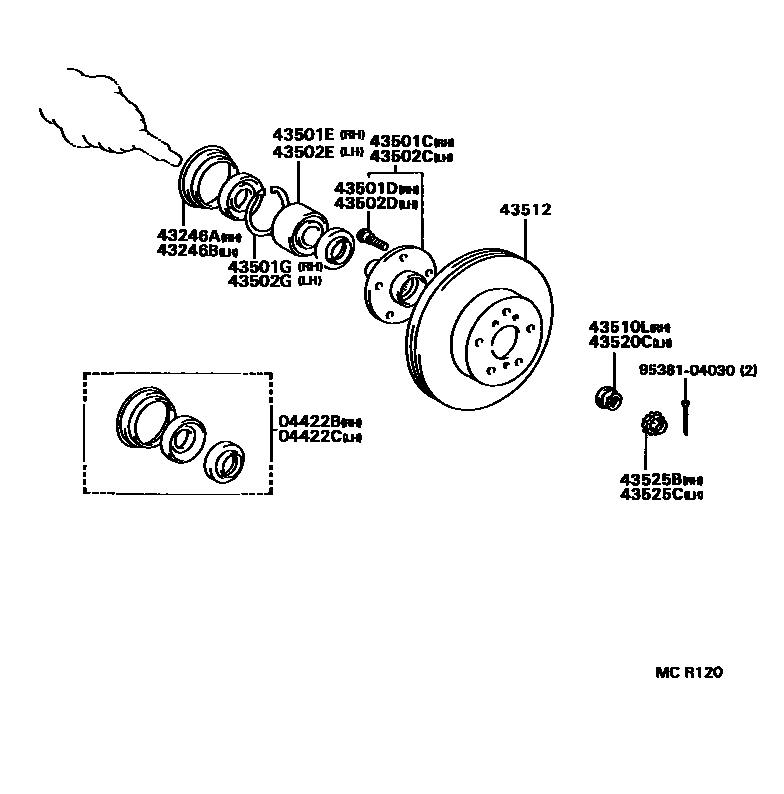

Toyota CELICA — FRONT AXLE HUB
04422BSEAL KIT, FRONT AXLE OIL, RH
W(ABS & SUPER STRUT SUSPENSION)
W(ABS)
04422CSEAL KIT,FRONT AXLE OIL, LH
W(ABS & SUPER STRUT SUSPENSION)
W(ABS)
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
W(ABS)
W(ABS & SUPER STRUT SUSPENSION)
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
W(ABS)
W(ABS & SUPER STRUT SUSPENSION)
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
sub90942-02049
43501EBEARING (FOR FRONT AXLE HUB RH)
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
W(SUPER STRUT SUSPENSION)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
sub90942-02049
43502EBEARING (FOR FRONT AXLE HUB LH)
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
W(SUPER STRUT SUSPENSION)
43520CNUT (FOR STEERING KNUCKLE LH)
W(ABS)
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
9538104030
main95381-04030
18 parts on this diagram · 2 diagrams in section
