Toyota CELICA — FOG LAMP

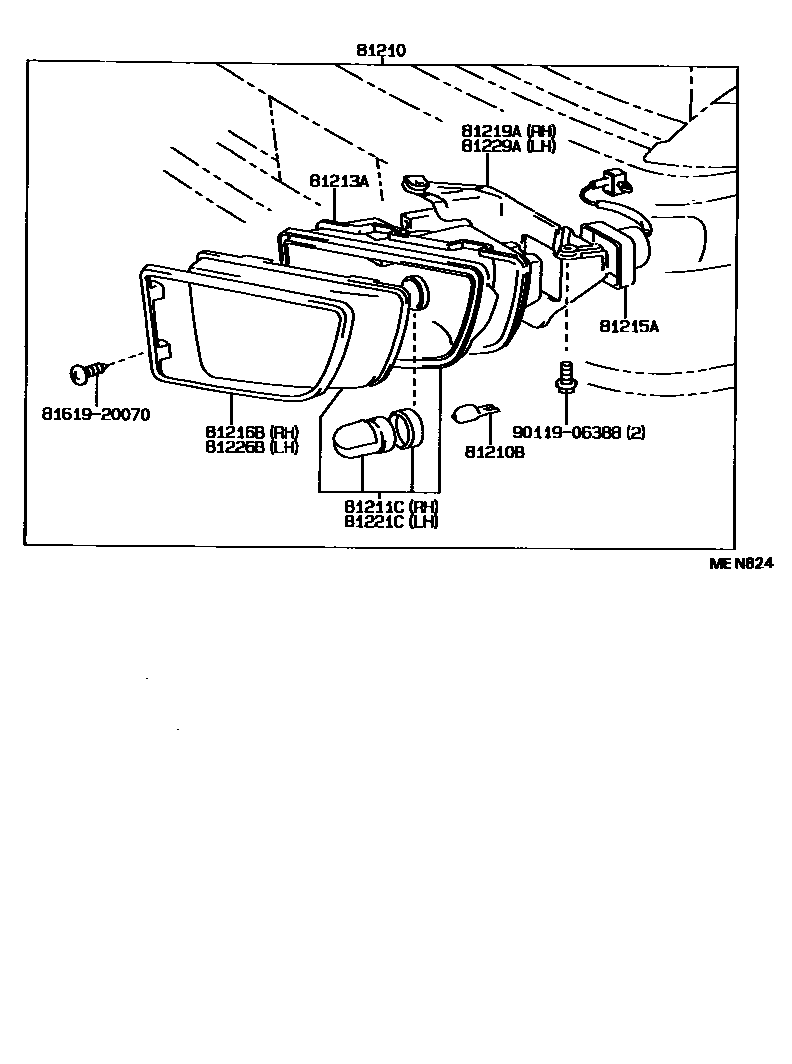

Parts diagram

81210LAMP ASSY, FOG

main81210-20300i199108-199311

RH

main81210-20310i199108-199311

RH

main81210-29165i198910-199108

RH

main81210-29215i199108-199311

RH

main81220-20290i199108-199311

LH

main81220-20300i199108-199311

LH

main81220-29115i198910-199108

LH

main81220-29165i199108-199311

LH

81210BBULB, FOG LAMP

main90981-13018×2i199108-199311

12V 55W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-20130i198910-199108

main81211-20210i199108-199311

main81211-20300i199108-199311

main81211-20310i199108-199311

81213ABODY, FOG LAMP

main81213-20130i198910-199311

RH

main81223-20130i199108-199311

LH

81215ASOCKET & WIRE, FOG LAMP

main81215-20120×2i199108-199311

main81215-20170×2i198910-199108

81216BRIM, FOG LAMP, RH NO.1

main81216-20130i198910-199108

81219ABRACKET, FOG LAMP, RH

main81219-20120i199108-199311

main81219-20140i198910-199108

81221CLAMP UNIT, FOG LAMP, LH

main81221-20120i199108-199311

main81221-20130i198910-199108

main81221-20290i199108-199311

main81221-20300i199108-199311

81226BRIM, FOG LAMP, LH

main81226-20130i198910-199311

81229ABRACKET, FOG LAMP, LH

main81229-20110i199108-199311

main81229-20140i199108-199311

8161920070

main81619-20070

9011906388

main90119-06388

12 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota CELICA

This section contains 14 genuine Toyota parts for the FOG LAMP system of the Toyota CELICA. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, BODY, FOG LAMP, SOCKET & WIRE, FOG LAMP.
