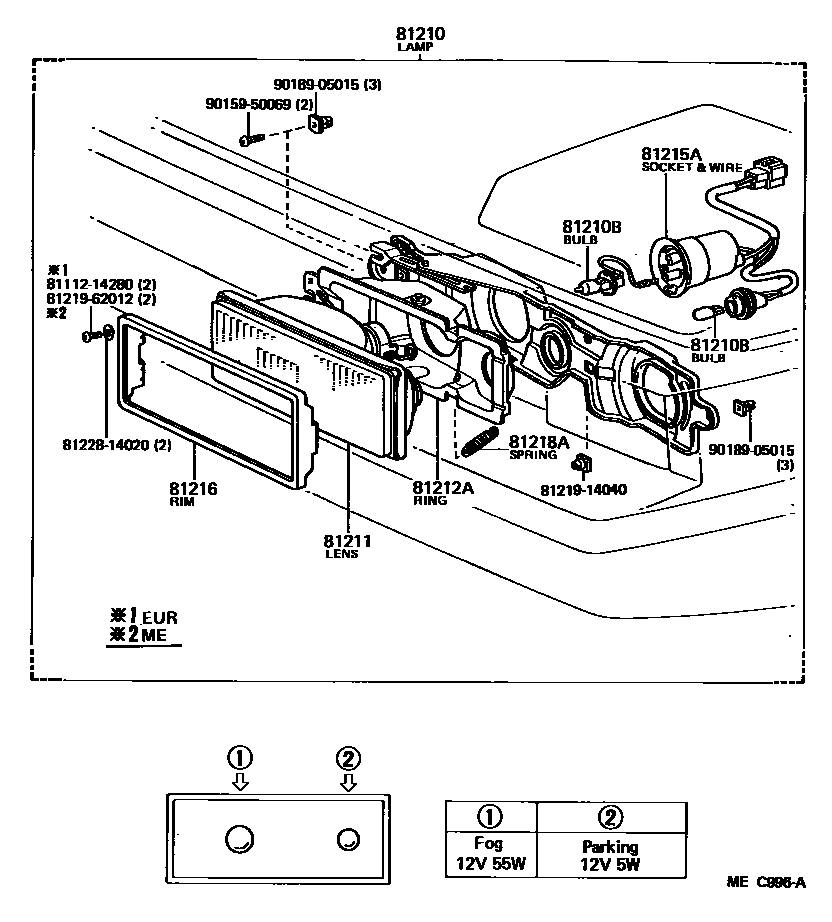

Toyota CELICA — FOG LAMP

81210LAMP ASSY, FOG

main81210-19065i198209-198308

RH; RH,GENERAL COUNTRIES SPEC

main81210-19066i198308-198512

main81210-19095i198112-198209

main81210-19096i198209-198308

main81210-19097i198308-198512

main81210-19145i198209-198308

RH,GENERAL COUNTRIES SPEC

main81210-19146i198308-198512

main81210-19165i198308-198512

main81220-19035i198209-198308

LH; LH,GENERAL COUNTRIES SPEC

main81220-19036i198308-198512

main81220-19055i198112-198209

main81220-19056i198209-198308

main81220-19057i198308-198512

main81220-19065i198209-198308

LH,GENERAL COUNTRIES SPEC

main81220-19066i198308-198512

main81220-19085i198308-198512

81210BBULB, FOG LAMP

main90981-13018×2i198112-198512

12V 55W,HALOGEN,12V 55W

main90981-13025×2i198209-198308

12V 55W,COUNTRIES GENERAL SPEC

main99132-12050×2i198112-198512

12V 5W,12V 5W

81211LENS, FOG LAMP

main81211-14040×2i198112-198308

main81211-14041×2i198308-198512

main81211-14070×2i198209-198308

GENERAL COUNTRIES SPEC

main81211-14071×2i198308-198512

main81211-14080×2i198308-198512

81212ARING, FOG LAMP MOUNTING

main81212-14040i198112-198512

main81222-14020i198112-198512

81215ASOCKET & WIRE, FOG LAMP

main81215-14040×2i198209-198308

GENERAL COUNTRIES SPEC

main81215-14050×2i198209-198308

GENERAL COUNTRIES SPEC

main81215-14060×2i198308-198512

81216RIM, FOG LAMP, NO.1

main81216-14040×2i198112-198512

81218ASPRING, TENSION(FOR FOG LAMP)

main81218-14040×2i198112-198512

8111214280RING, SEALED BEAM RETAINING, NO.2 RH

main81112-14280

8121914040BOLT, FOG LAMP

main81219-14040

8121962012BOLT, FOG LAMP

main81219-62012

8122814020STOPPER, LENS

main81228-14020

9015950069

main90159-50069

9018905015

main90189-05015

13 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota CELICA

This section contains 13 genuine Toyota parts for the FOG LAMP system of the Toyota CELICA. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LENS, FOG LAMP, RING, FOG LAMP MOUNTING, SOCKET & WIRE, FOG LAMP.
