Toyota CELICA — EXHAUST GAS RECIRCULATION SYSTEM

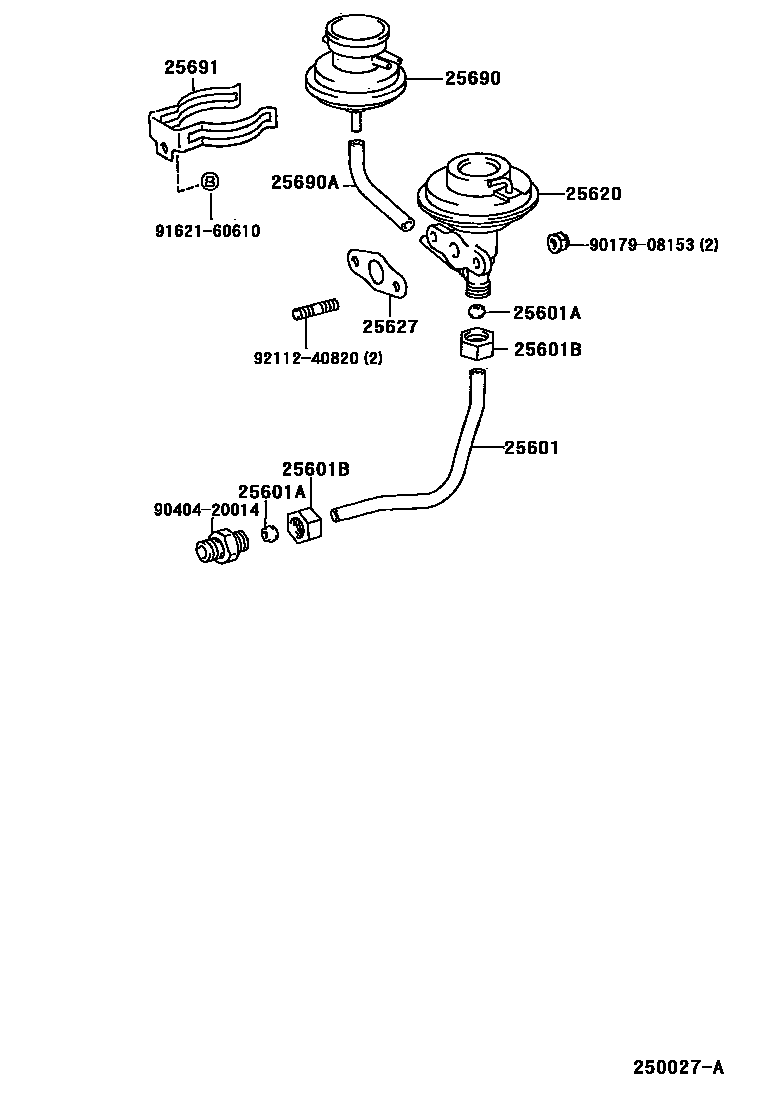

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25601-88480i199402

main25611-74030i199712

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i199402

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20009i199712

UNION SIDE

main90402-20073i199712

EGR VALVE SIDE

25620VALVE ASSY, EGR

main25620-74270i199402

main25620-74300i199712

main25620-74310i199712

25627GASKET, EGR VALVE

main25627-74011i199712

main25627-74060i199402

25690MODULATOR ASSY, EGR VACUUM

main25690-88480i199402

main25870-74090i199712

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-88480i199402

main90445-11065i199712

25691BRACKET, EGR VACUUM MODULATOR

main25691-74080i199712

9017908153

main90179-08153

9040420014

main90404-20014

9162160610

main91621-60610

9211240820

main92112-40820

12 parts on this diagram · 2 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota CELICA

This section contains 16 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CELICA. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR, GASKET, EGR VALVE.
