Toyota CELICA — EXHAUST GAS RECIRCULATION SYSTEM

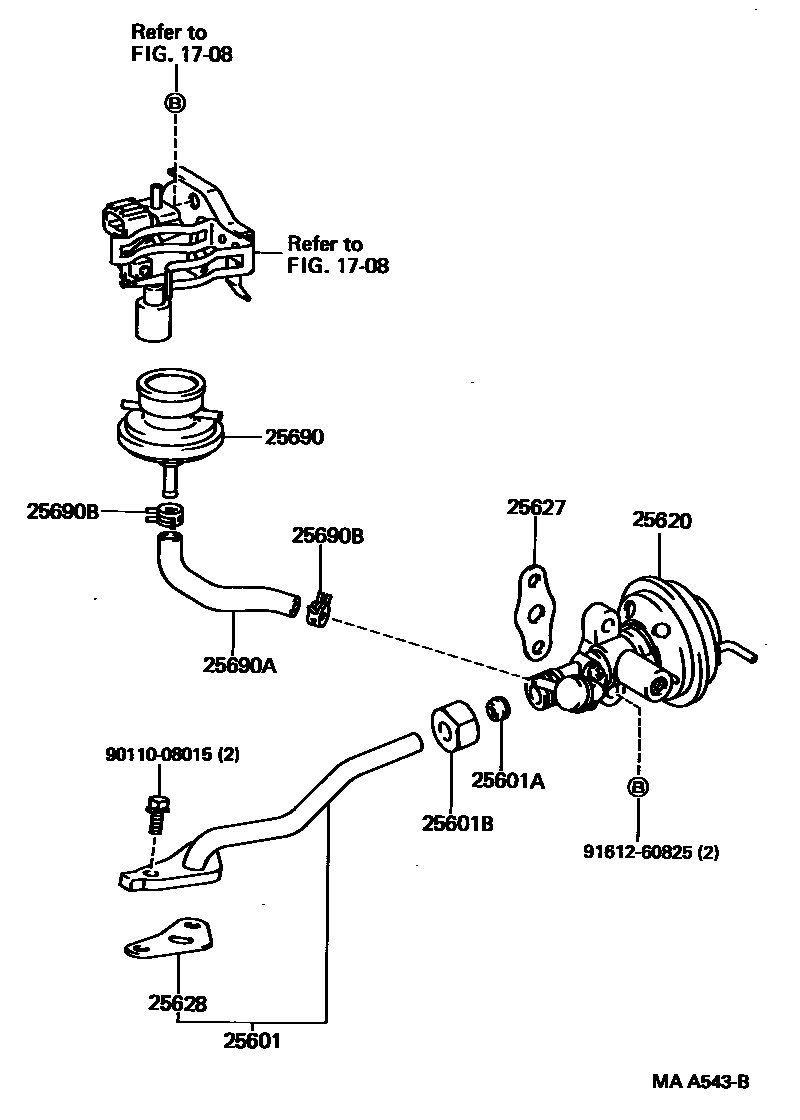

Parts diagram

1708VACUUM PIPING

→ Go to FIG 17-08

25601PIPE SUB-ASSY, EGR, NO.1

main25601-88381i198910-199003

main25601-88382i199003-199311

main25611-74030i198910-199311

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042×2i198910-199311

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20009i198910-199108

main90402-20073i199108-199311

25620VALVE ASSY, EGR

main25620-74200i198910-199106

main25620-74201i199106-199209

main25620-74210i198910-199106

main25620-74211i199106-199209

main25620-74220i198910-199311

main25620-74250i199209-199311

main25620-74260i199209-199311

25627GASKET, EGR VALVE

main25627-74011i198910-199311

main25627-74060i198910-199311

25628GASKET, EGR INLET

main25634-74040i198910-199004

main25634-74050i199004-199311

25690MODULATOR ASSY, EGR VACUUM

main25690-88380i198910-199311

main25870-74090i198910-199208

main25870-74100i198910-199208

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-88381i198910-199311

main90445-11065i198910-199311

25690BCLIP(FOR EGR VACUUM MODULATOR)

main90467-10049i198910-199311

EGR VALVE SIDE

main90467-11009i198910-199311

EGR VACUUM MODULATOR

9011008015

main90110-08015

9161260825

main91612-60825

12 parts on this diagram · 2 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota CELICA

This section contains 19 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CELICA. Key components include: VACUUM PIPING, PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, UNION(FOR EGR PIPE, NO.1).
