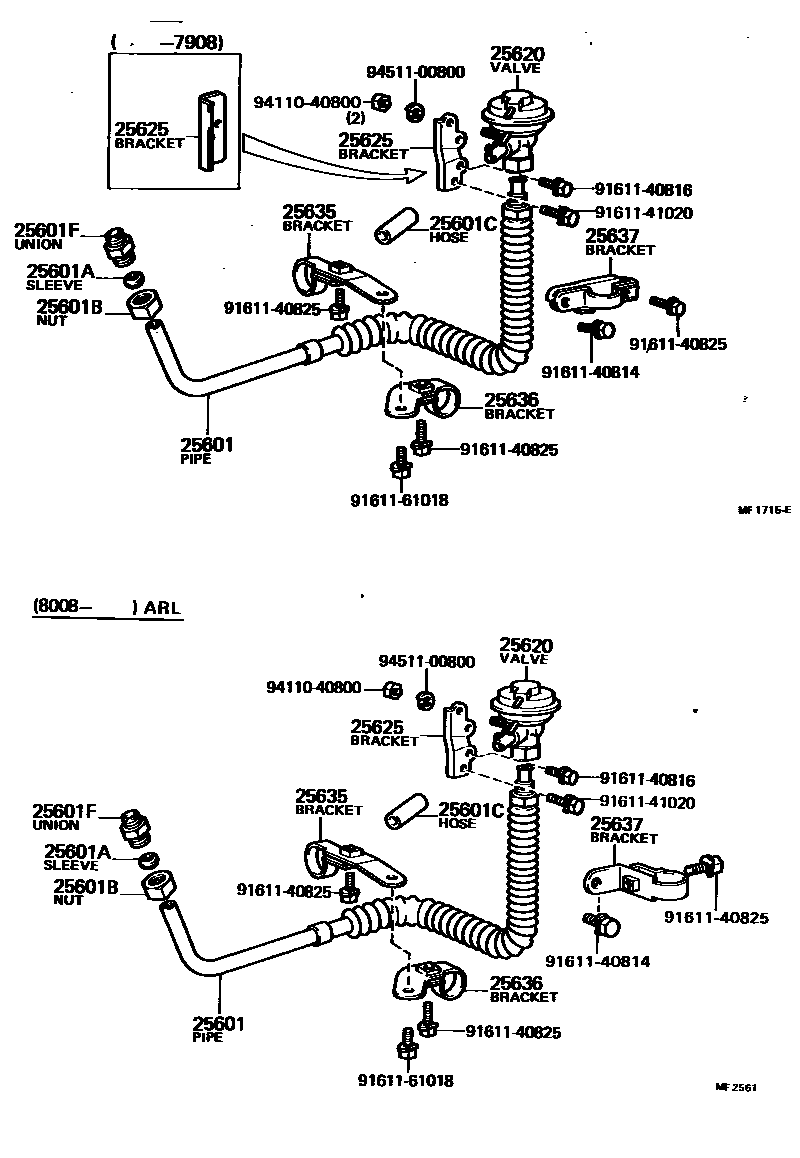

Toyota CELICA — EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
25601CHOSE(FOR EGR PIPE, NO.1)
25601FUNION(FOR EGR PIPE, NO.1)
25620VALVE ASSY, EGR
main25620-34140i18RC..RA40..5F..ARL; 18RG..RA40..RHD..EUG;18R..RA40..LB..LHD..3FC..EUG;18R..RA40..CP..RHD..3FC..EUG;18R..RA40..LB..LHD..5F..XT..GEN; 2T..TA40..RHD..5F;2T..TA40..5F..EUG;2TB..TA40..LB..RHD..4F;2TB..TA40..LB..RHD..EUG;2TB..TA40..CP..LHD..5F..GEN197710-197908
25625BRACKET, EGR VALVE
25635BRACKET, EGR PIPE, NO.1
25636BRACKET, EGR PIPE, NO.2
25637BRACKET, EGR PIPE, NO.3
9161140814
main91611-40814
9161140816
main91611-40816
9161140825
main91611-40825
9161141020
main91611-41020
9161161018
main91611-61018
9411040800
main94110-40800
9451100800
main94511-00800
17 parts on this diagram · 1 diagram in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota CELICA
This section contains 17 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CELICA. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, HOSE(FOR EGR PIPE, NO.1), UNION(FOR EGR PIPE, NO.1).
