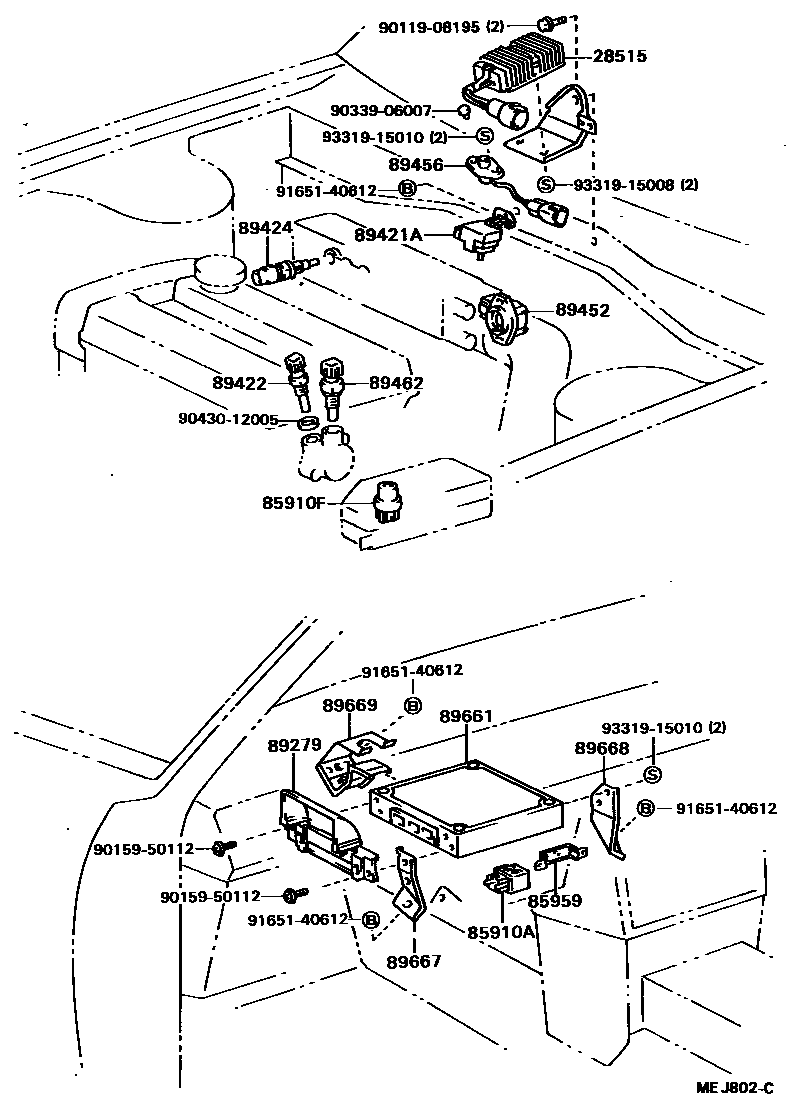

Toyota CELICA — ELECTRONIC FUEL INJECTION SYSTEM
28515RESISTOR, SOLENOID
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
85959HOLDER, RELAY
89279COVER, ENGINE CONTROL COMPUTER
89421ASENSOR, TURBO PRESSURE
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
DENSO
AISAN
89456RESISTOR, VARIABLE
89462SWITCH, START INJECTOR TIME
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9011908195
main90119-08195
9015950112
main90159-50112
9033906007
main90339-06007
9043012005
main90430-12005
9165140612
main91651-40612
9331915008
main93319-15008
9331915010
main93319-15010
22 parts on this diagram · 3 diagrams in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota CELICA
This section contains 22 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota CELICA. Key components include: RESISTOR, SOLENOID, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI), HOLDER, RELAY, COVER, ENGINE CONTROL COMPUTER.
