Toyota CELICA — ELECTRONIC CONTROLLED TRANSMISSION

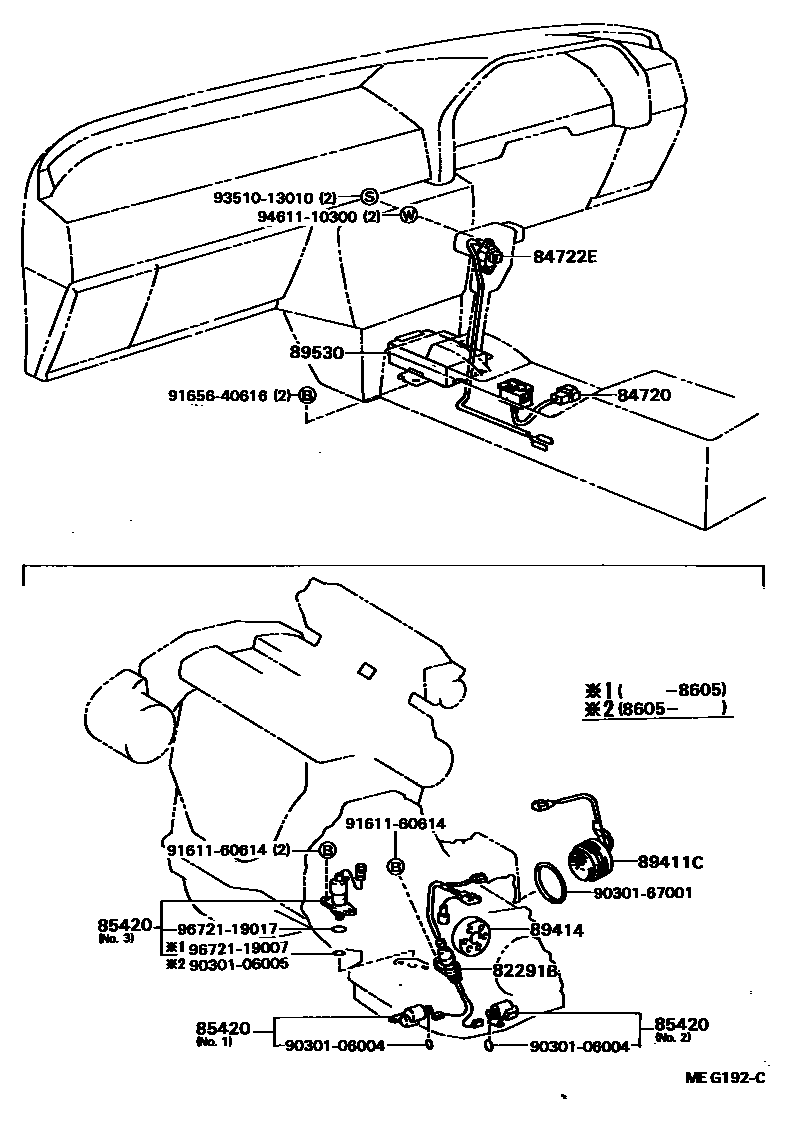

Parts diagram
82291BWIRE, TO SOLENOID (FOR TRANSMISSION)
main82125-20090i198508-198708
84720SWITCH ASSY, PATTERN SELECT
main84720-20060i198508-198708
84722ESWITCH, TRANSMISSION CONTROL
main84722-20040-03i198508-198708
GRAY,GRAY
main84722-20040-05i198508-198708
BEIGE,BEIGE
main84722-20040-24i198508-198708
BLUE,BLUE
85420SOLENOID ASSY, TRANSMISSION
main85420-32020i198508-198708
NO.1,AISIN
main85420-32030i198508-198708
NO.1,DENSO
main85420-32040i198508-198708
NO.2,AISIN
main85420-32050i198508-198708
NO.2,DENSO
main85420-32070i198508-198605
NO.3
main85420-32071i198605-198708
NO.3
89411CSENSOR, SPEED
main89411-20020i198508-198708
89414ROTOR, SENSOR
main89414-32010i198508-198708
89530COMPUTER ASSY, TRANSMISSION CONTROL
main89530-20090i198508-198708
main89530-20100i198508-198708
main89530-20190i198508-198708
*ME
9030106004
main90301-06004
9030106005
main90301-06005
9030167001
main90301-67001
9161160614
main91611-60614
9165640616
main91656-40616
9351013010
main93510-13010
9461110300
main94611-10300
9672119007
main96721-19007
9672119017
main96721-19017

16 parts on this diagram · 1 diagram in section

ELECTRONIC CONTROLLED TRANSMISSION for Toyota CELICA

This section contains 16 genuine Toyota parts for the ELECTRONIC CONTROLLED TRANSMISSION system of the Toyota CELICA. Key components include: WIRE, TO SOLENOID (FOR TRANSMISSION), SWITCH ASSY, PATTERN SELECT, SWITCH, TRANSMISSION CONTROL, SOLENOID ASSY, TRANSMISSION, SENSOR, SPEED.
