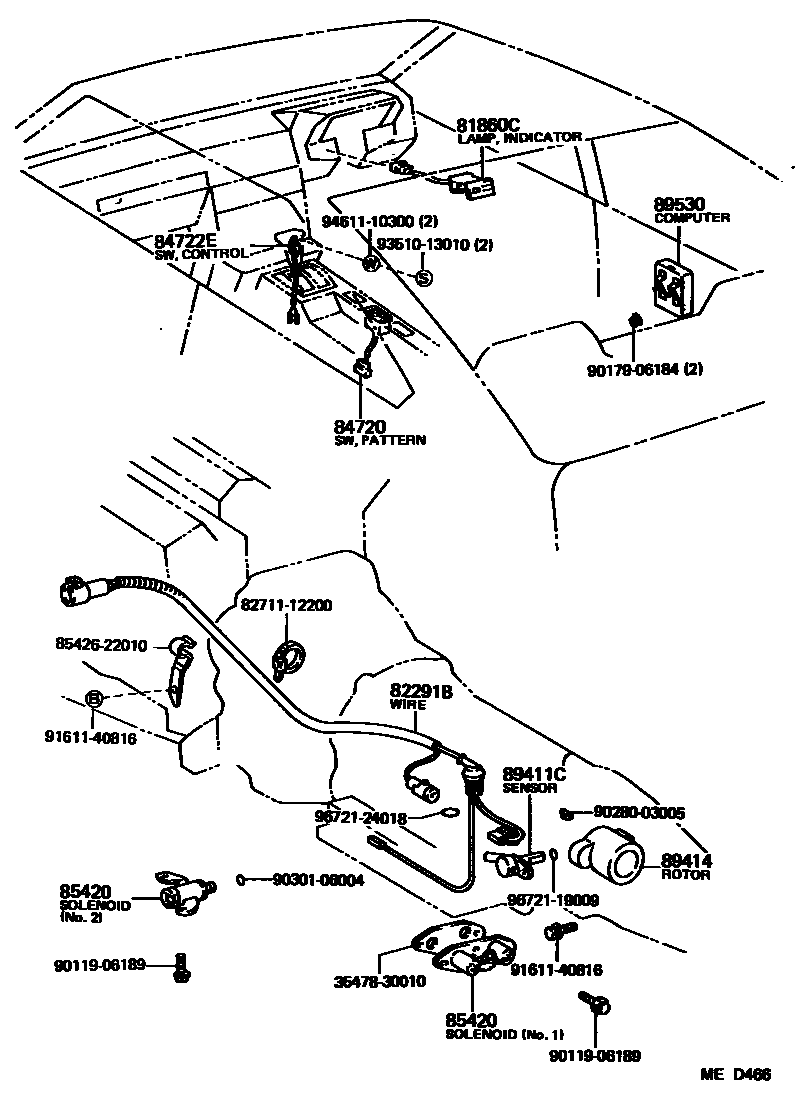

Toyota CELICA — ELECTRONIC CONTROLLED TRANSMISSION
81860CLAMP ASSY, TRANSMISSION INDICATOR
82291BWIRE, TO SOLENOID (FOR TRANSMISSION)
84720SWITCH ASSY, PATTERN SELECT
84722ESWITCH, TRANSMISSION CONTROL
BLACK,BLACK,TRIM2#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
85420SOLENOID ASSY, TRANSMISSION
NO.1
NO.2
89411CSENSOR, SPEED
89414ROTOR, SENSOR
89530COMPUTER ASSY, TRANSMISSION CONTROL
DENSO
AISIN
3547830010GASKET, ACCUMULATOR COVER
main35478-30010
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
8542622010CLAMP, OVER DRIVE SOLENOID
main85426-22010
9011906189
main90119-06189
9017906184
main90179-06184
9028003005
main90280-03005
9030106004
main90301-06004
9161140816
main91611-40816
9351013010
main93510-13010
9461110300
main94611-10300
9672119009
main96721-19009
9672124018
main96721-24018
20 parts on this diagram · 1 diagram in section
ELECTRONIC CONTROLLED TRANSMISSION for Toyota CELICA
This section contains 20 genuine Toyota parts for the ELECTRONIC CONTROLLED TRANSMISSION system of the Toyota CELICA. Key components include: LAMP ASSY, TRANSMISSION INDICATOR, WIRE, TO SOLENOID (FOR TRANSMISSION), SWITCH ASSY, PATTERN SELECT, SWITCH, TRANSMISSION CONTROL, SOLENOID ASSY, TRANSMISSION.
