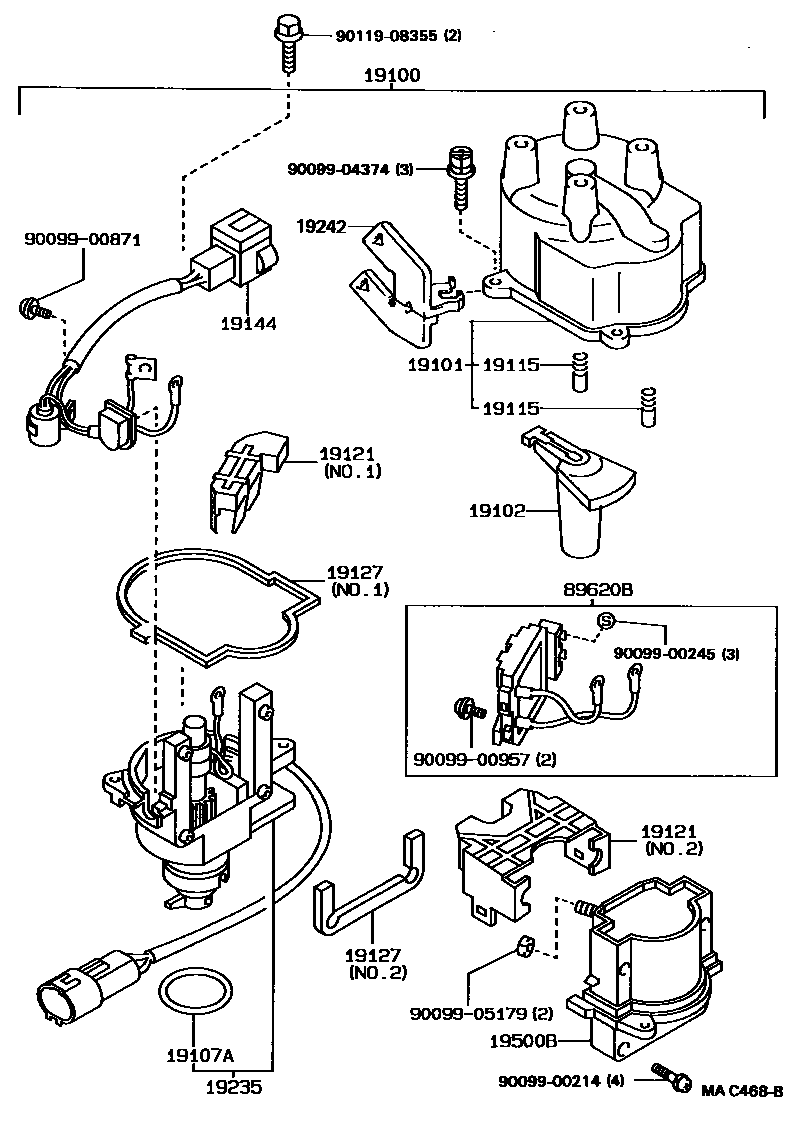

Toyota CELICA — DISTRIBUTOR

0001 1 0002 1 0003 1 0004 1

19100DISTRIBUTOR ASSY

main19020-16190i4AFE..AT180198911-199311

main19050-74020i5SFE..ST184199108-199308

sub19050-74030

main19050-74050i5SFE..ST184199308-199311

main19100-74050i5SFE..ST184198910-199004

main19100-74060i5SFE..ST184199004-199108

main19100-88363i3SG#..ST182,185198910-199108

main19100-88364i3SG#..ST182,185199108-199311

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-15140i4AFE..AT180198911-199311

main19101-74090i5SFE..ST184198910-198911

sub19101-74150

main19101-74110i5SFE..ST184198911-199108

main19101-74180i5SFE..ST184199108-199311

main19101-88363i3SG#..ST182,185198910-199108

main19101-88364i3SG#..ST182,185199108-199311

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i4AFE..AT180198911-199108

sub19102-11370

main19102-74040i3SG#,5SFE..ST18#198910-199108

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14090i3SG#..ST182,185199103-199311

main90099-14091i5SFE..ST184199103-199311

main90099-14106i3SG#..ST182,185198910-199103

main96711-35030i4AFE..AT180198911-199103

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i4AFE..AT180198911-199108

main19115-88280i3SG#..ST182,185199108-199311

19121COVER, DUST PROOF

main19121-11080i5SFE..ST184199108-199311

main19121-63040i4AFE..AT180198911-199311

NO.2

main19121-63090i4AFE..AT180198911-199311

NO.1

19127PACKING, DUST PROOF

main19127-63010i4AFE..AT180198911-199311

NO.1

main19127-63020i4AFE..AT180198911-199311

NO.2

main19127-74040i3SG#,5SFE..ST18#198910-199108

main19127-74050i5SFE..ST184199108-199311

19144LEAD, DISTRIBUTOR BREAKER

main19144-16190i4AFE..AT180198911-199309

main19144-16200i4AFE..AT180199309-199311

main19144-74100i5SFE..ST184199108-199311

19235HOUSING, DISTRIBUTOR

main19235-15130i4AFE..AT180198911-199311

main19235-74070i5SFE..ST184198910-199004

main19235-74110i5SFE..ST184199004-199108

main19235-74180i5SFE..ST184199108-199308

main19235-74210i5SFE..ST184199308-199311

main19235-88363i3SG#..ST182,185198910-199311

19242CLAMP, CORD

main19242-15140i4AFE..AT180198911-199311

19500BCOIL ASSY, IGNITION

main90919-02139×2i4AFE..AT180198911-199103

main90919-02163i5SFE..ST184199108-199311

89620BIGNITER ASSY

main89620-12430iAT180198911-199108

9009900214

main90099-00214

9009900245

main90099-00245

9009900871

main90099-00871

9009900957

main90099-00957

9009904374

main90099-04374

9009905179

main90099-05179

9011908355

main90119-08355

19 parts on this diagram · 4 diagrams in section
