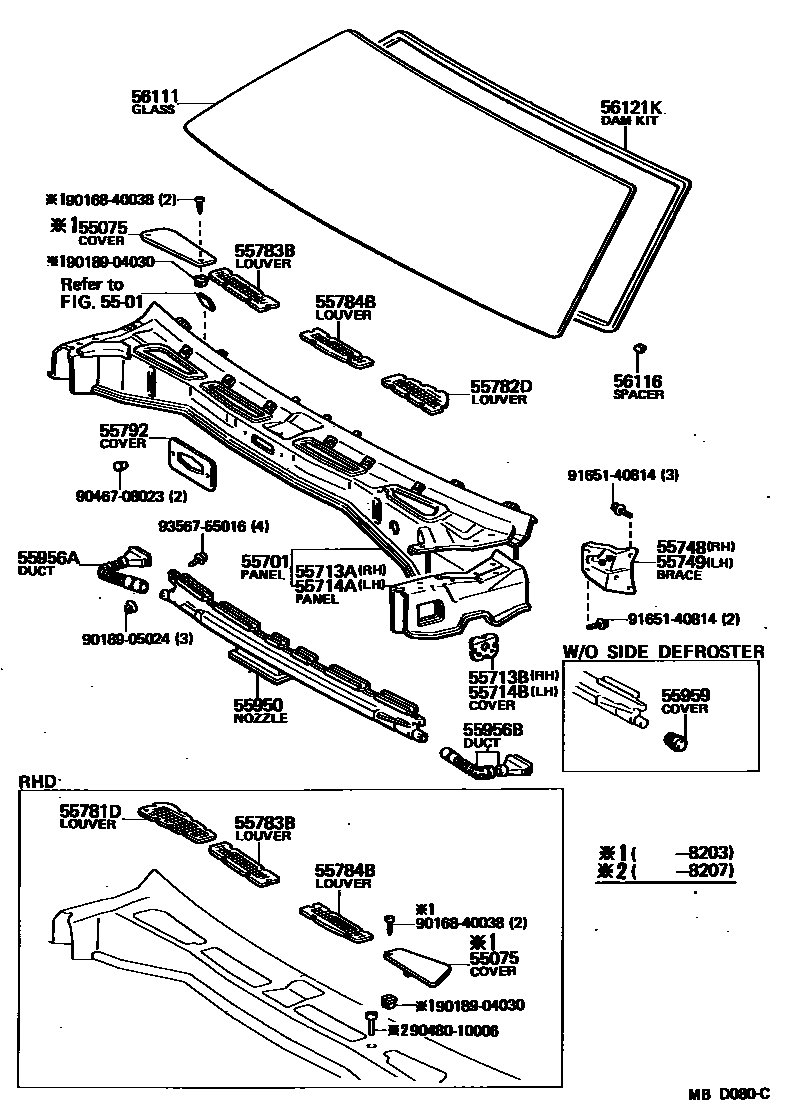

Toyota CELICA — COWL PANEL & WINDSHIELD GLASS
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
55075COVER SUB-ASSY, HEATER AIR DUCT HOLE
55701PANEL SUB-ASSY, COWL
GENERAL COUNTRIES SPEC
55713APANEL, COWL TOP SIDE, RH
55713BCOVER, COWL SIDE PANEL HOLE, RH
55714APANEL, COWL TOP SIDE, LH
55714BCOVER, COWL SIDE PANEL HOLE, LH
55748BRACE, COWL TOP TO PILLAR, RH
55749BRACE, COWL TOP TO PILLAR, LH
GENERAL COUNTRIES SPEC
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
55792COVER, WIPER MOTOR SERVICE HOLE
55950NOZZLE ASSY, DEFROSTER
55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2
55959COVER, DEFROSTER NOZZLE OPENING, NO.1
56111GLASS, WINDSHIELD
main56111-14310iRA61..RHD;RA61..5F..XT..GEN;RA61..LHD..5F..EUG;MA61..TWC..(EUR,GEN);RA61..LHD..4FC..(EUR,GEN);AA63,RA60,63,TA60..EUR,GEN198108-198512
T=5.0,*TZT
T=5.3,*TL
main56111-14340iMA61..TWC;RA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA);AA63,RA60,63,TA60..EUR,GEN,ME198108-198512
T=5.3,W/SUN SHADE,*TL
T=5.3,*LAM,W/SUN SHADE
56116SPACER, WINDSHIELD GLASS
LWR,20 X 7.5 X 11.5
SIDE,20 X 8 X 9.2
56121KDAM KIT, WINDSHIELD GLASS
9016840038
main90168-40038
9018904030
main90189-04030
9018905024
main90189-05024
9046708023
main90467-08023
9048010006
main90480-10006
9165140814
main91651-40814
9356755016
main93567-55016
28 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota CELICA
This section contains 28 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CELICA. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, COVER SUB-ASSY, HEATER AIR DUCT HOLE, PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH, COVER, COWL SIDE PANEL HOLE, RH.
