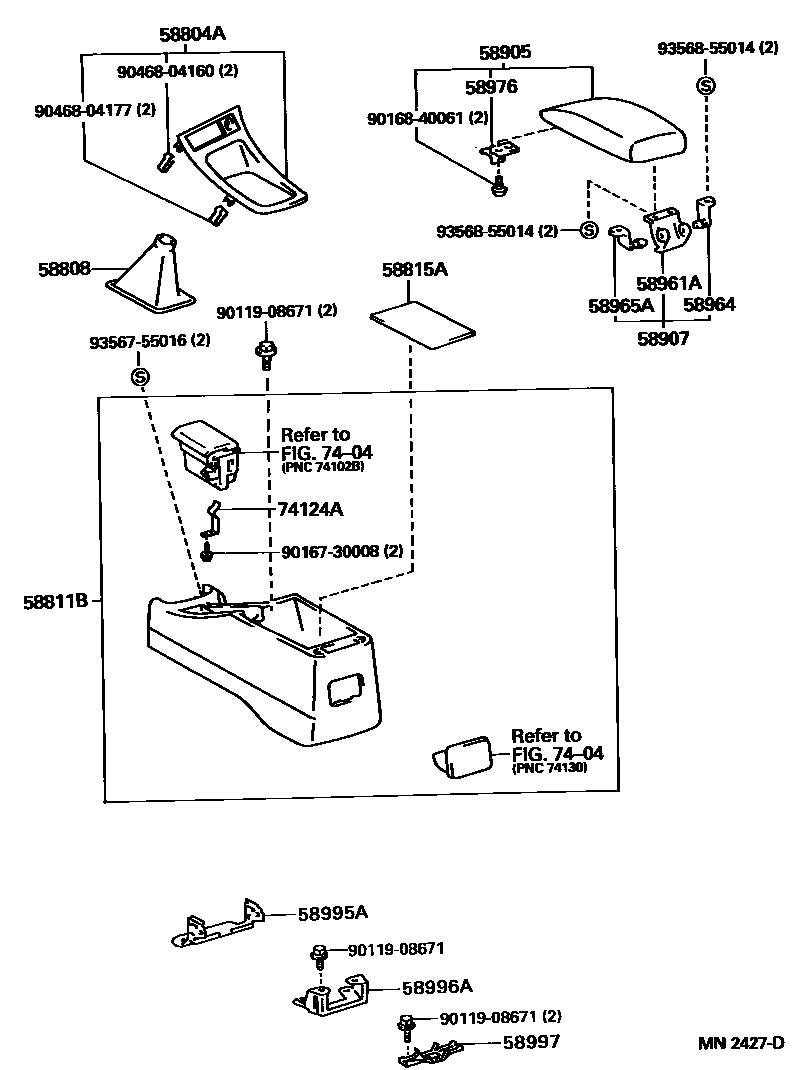

Toyota CELICA — CONSOLE BOX & BRACKET

0001 1 0002 1

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-20150iST204..ATM199311

main58804-20160-C0iST20#..RHD..MTM199311

BLACK,TRIM2#

main58804-20170iST202..ATM199311

main58804-20180-C0iST202..LHD..MTM199311

BLACK,TRIM2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20120-C0iST20#..MTM199311-199908

BLACK,TRIM2#

58811BBOX, CONSOLE

main58801-20230-C0iST20#..RHD199311-199508

BLACK,TRIM2#

main58801-20240-C0iST202..LHD199311

BLACK,TRIM2#

main58801-20250-C0iST20#..RHD199508

BLACK,TRIM2#

58815ACARPET, CONSOLE BOX

main58815-20040iST20#..RHD199311-199508

main58815-20050iST202..LHD199311-199508

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20220-C0iST20#..RHD199311

BLACK,TRIM2#

main58905-20230-C0iST202..LHD199311

BLACK,TRIM2#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-20030-C0iST20#199311

BLACK,TRIM2#

sub58907-12050

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-20030iST20#199311

sub58907-12050

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20030-C0iST20#199311

BLACK,TRIM2#

sub58964-0K020

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-20040-C0iST20#199311

BLACK,TRIM2#

sub58965-0K040

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020iST20#199311

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-20070iST20#..MTM199311

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-20060iST202..LHD199311

main58996-20070iST20#..RHD199508

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-20050iST20#199311

7404

74124ASPRING, ASH RECEPTACLE

main74124-20120iST20#199311

9011908671

main90119-08671

9016730008

main90167-30008

9016840061

main90168-40061

9046804160

main90468-04160

9046804177

main90468-04177

9356755016

main93567-55016

9356855014

main93568-55014

22 parts on this diagram · 2 diagrams in section
