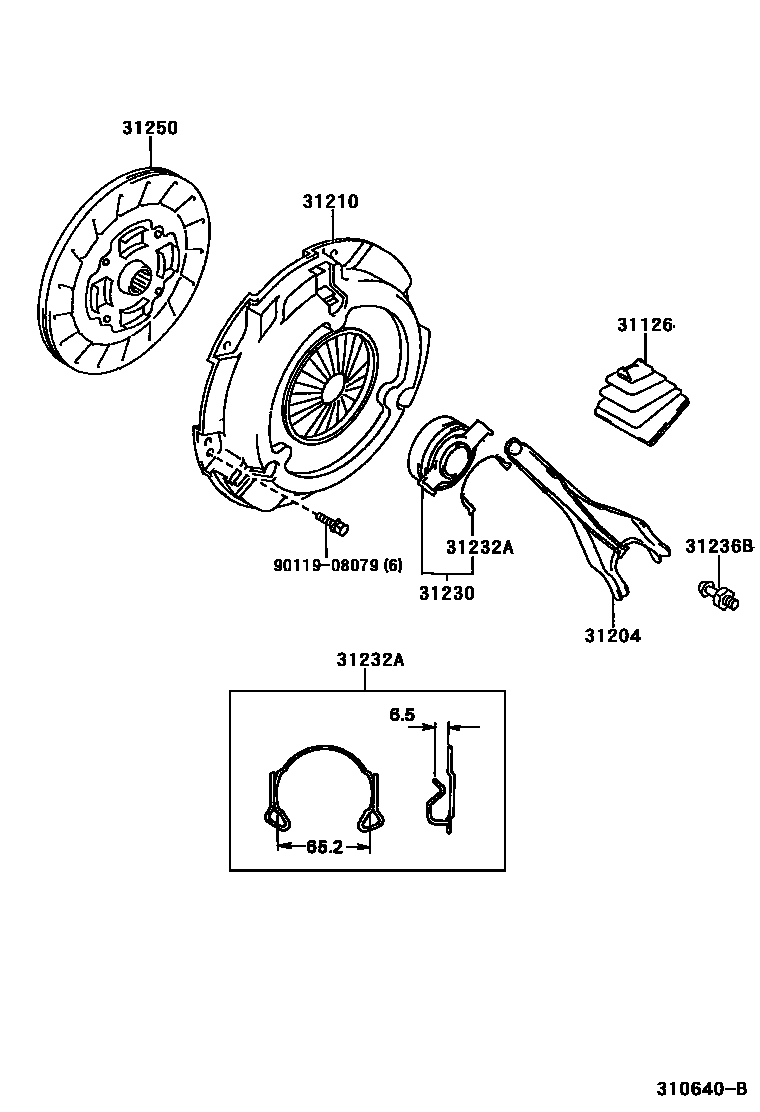

Toyota CELICA — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iZZT231..6F200208-200509

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iZZT231..6F199908-200208

31210COVER ASSY, CLUTCH

main31210-12250iZZT231..6F200507-200509

sub31210-12251

main31210-20380iZZT231..6F199908-199910

31230BEARING ASSY, CLUTCH RELEASE

main31230-12170iZZT231..6F199908-200101

main31230-12171iZZT231..6F200101-200201

main31230-12191iZZT231..6F200201-200208

31232ACLIP, RELEASE BEARING HUB

main31232-12070iZZT231..6F199908-200208

31236BSUPPORT, RELEASE FORK

main31236-12020iZZT231..6F199908-200208

31250DISC ASSY, CLUTCH

main31250-12360iZZT231..6F199908-200208

sub31250-12361

main31250-20340iZZT231..6F200307-200509

sub31250-52100

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
