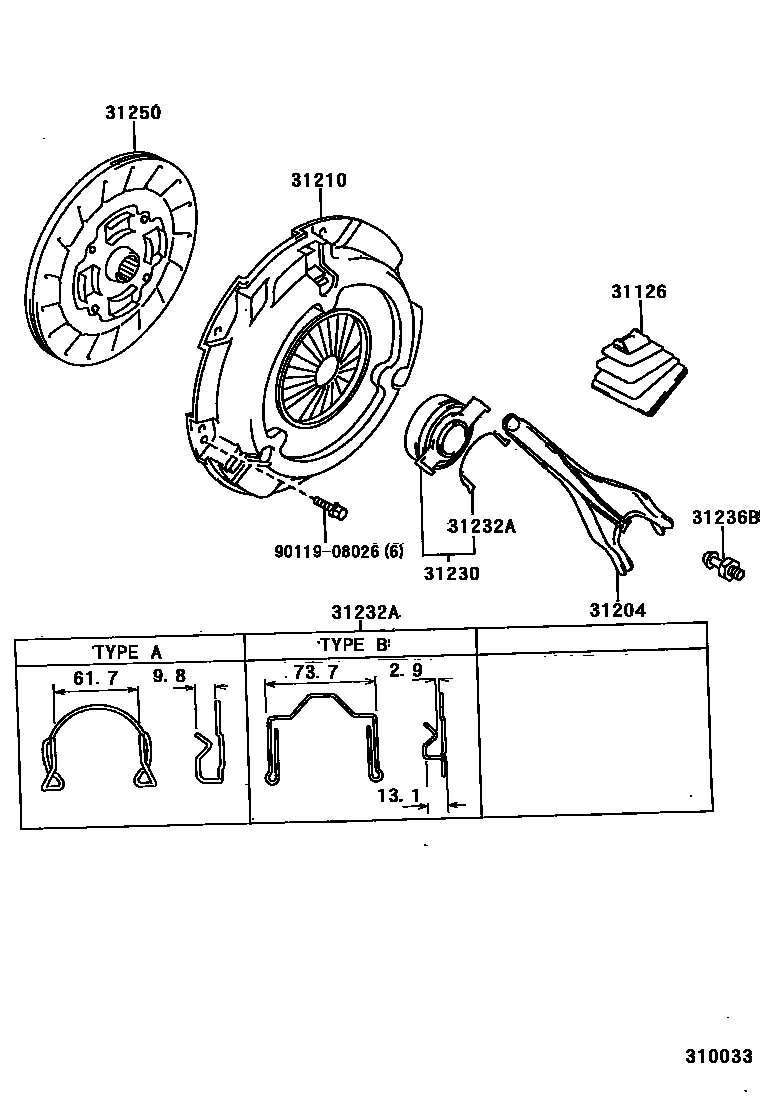

Toyota CELICA — CLUTCH & RELEASE FORK

0001 1S54 0002 1E154F

31126BOOT, CLUTCH RELEASE FORK

main31126-20080iST205199402

main31126-32010iST202,204..MTM199311

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iST202,204..MTM199311

main31204-20110iST205199402-199602

main31204-20111iST205199602

31210COVER ASSY, CLUTCH

main31210-20350iST205199402

main31210-32130iST202,204..MTM199311

31230BEARING ASSY, CLUTCH RELEASE

main31230-20190iST205199402-199811

main31230-20191iST205199811

main31230-32060iST202,204..MTM199311

31232ACLIP, RELEASE BEARING HUB

main31232-20020iST202,204..MTM199311

TYPE A:REFER TO ILLUSTRATION

main31232-20031iST205199402

TYPE A:REFER TO ILLUSTRATION

main31232-32050iST202,204..MTM199311

TYPE B:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-20070iST205199402

main31236-32010iST202,204..MTM199311

31250DISC ASSY, CLUTCH

main31250-17040iST202,204..MTM199311-199607

main31250-17051iST205199402-199703

main31250-17052iST205199703

main31250-20250iST202..MTM199607-199812

main31250-20251iST202..MTM199812

main31250-20330iST204..MTM199712-199812

main31250-20331iST204..MTM199812

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section
