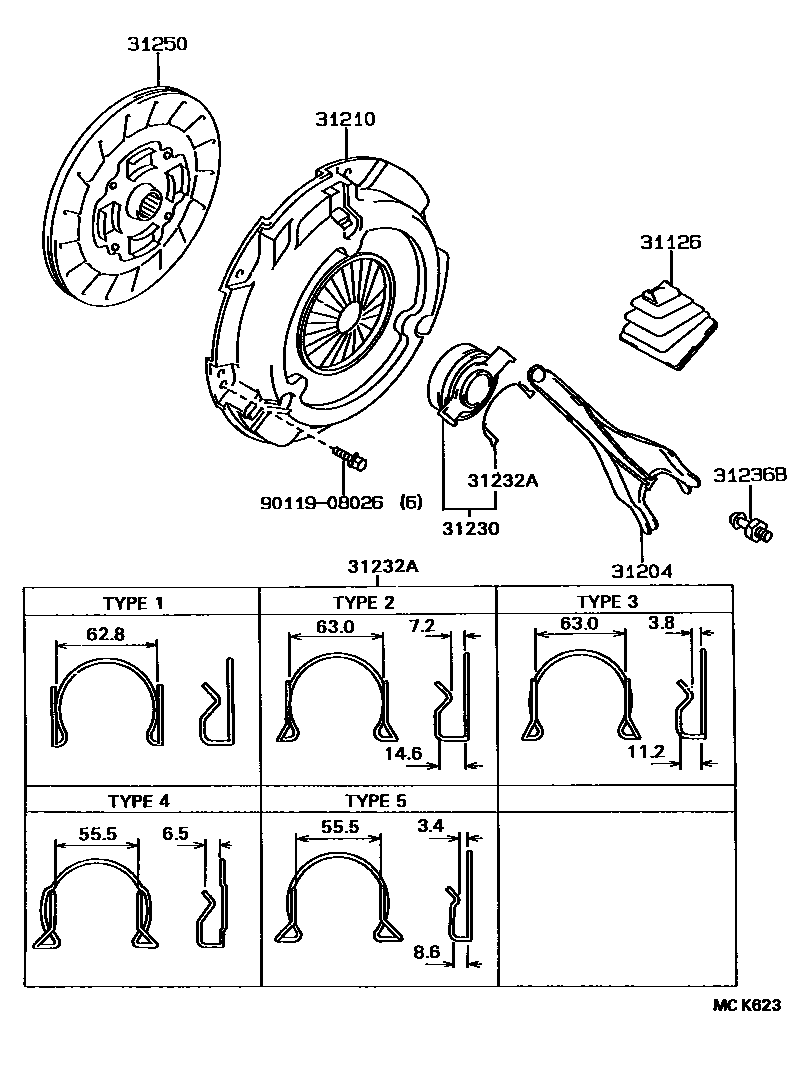

Toyota CELICA — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAT160198708-198908

main31126-32010iST162..5F198708-198908

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iAT160198708-198908

main31204-32010iST162..5F198708-198908

31210COVER ASSY, CLUTCH

main31210-16100iAT160..CBR198708-198812

main31210-32050iST162..5F..ST198708-198906

main31210-32051iST162..5F..ST198906-198908

main31210-32070iST162..5F..(GT,SX)198708-198712

main31210-32071iST162..5F..(GT,SX)198712-198808

main31210-32072iST162..5F..(GT,SX)198808-198906

main31210-32073iST162..5F..(GT,SX)198906-198908

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iAT160198708-198908

main31230-32020iST162..5F198708-198908

31232ACLIP, RELEASE BEARING HUB

main31232-12040iAT160198812-198908

TYPE 5

main31232-16031iAT160198810-198908

TYPE 4

main31232-32010iST162..5F..ARL198708-198908

TYPE 1

main31232-32020iST162..5F198708-198908

TYPE 2

main31232-32030iST162..5F198708-198908

TYPE 3

31236BSUPPORT, RELEASE FORK

main31236-12011iAT160198708-198908

main31236-30030iST162..5F198708-198908

31250DISC ASSY, CLUTCH

main31250-12200iAT160..CBR198708-198908

main31250-17010iAT160..TWC198708-198908

main31250-32041iST162..5F198708-198908

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
