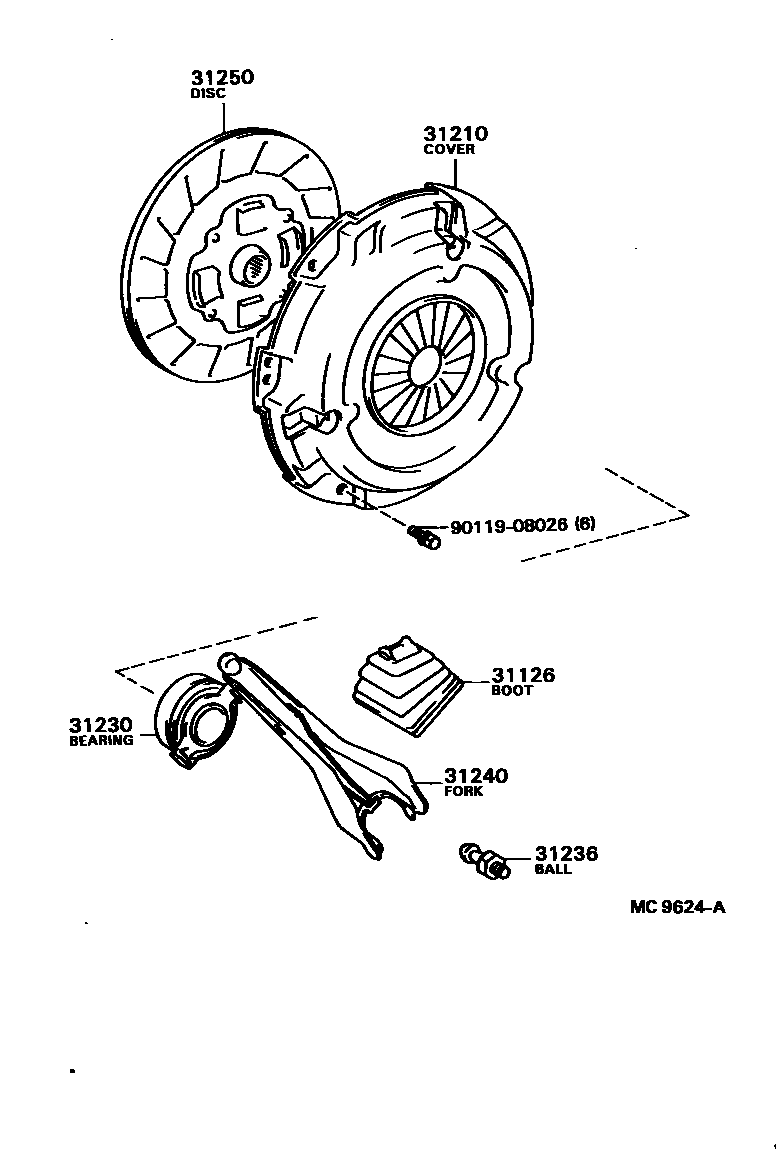

Toyota CELICA — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12050iAT160..5F198508-198701

main31126-12051iAT160..5F198701-198708

main31126-32010iST162,182..5F198508-198708

31210COVER ASSY, CLUTCH

main31210-12080iAT160..TWC198508-198704

main31210-12120iAT160..TWC198704-198708

sub31210-12121

main31210-16100iAT160..5F..CBR198704-198708

sub31210-16101

main31210-20200iAT160..5F..CBR198508-198704

main31210-32040iST162,182..5F198508-198608

main31210-32050iST162..5F..ARL198608-198708

sub31210-32051

main31210-32070iST162,182..5F..(GT,SX)198608-198708

sub31210-32071

31230BEARING ASSY, CLUTCH RELEASE

main31230-12100iAT160..5F198608-198708

sub31230-12140

main31230-12130iAT160..5F198508-198608

main31230-32020iST162,182..5F198607-198708

sub31230-32100

main31230-32040iST162..5F198508-198607

31236BALL, RELEASE FORK

main31236-12011iAT160..5F198508-198708

main31236-30030iST162,182..5F198508-198708

31240FORK ASSY, CLUTCH RELEASE

main31204-12050iAT160..5F198508-198708

main31204-32010iST162,182..5F198508-198708

31250DISC ASSY, CLUTCH

main31250-12143iAT160..5F..CBR198508-198601

main31250-12144iAT160..5F..CBR198601-198708

sub31250-12200

main31250-17010iAT160..TWC198508-198708

sub31250-12290

main31250-32032iST162..5F..ARL198608-198708

main31250-32041iST162,182..5F..(GT,SX)198508-198708

sub31250-32042

9011908026

main90119-08026

7 parts on this diagram · 2 diagrams in section
