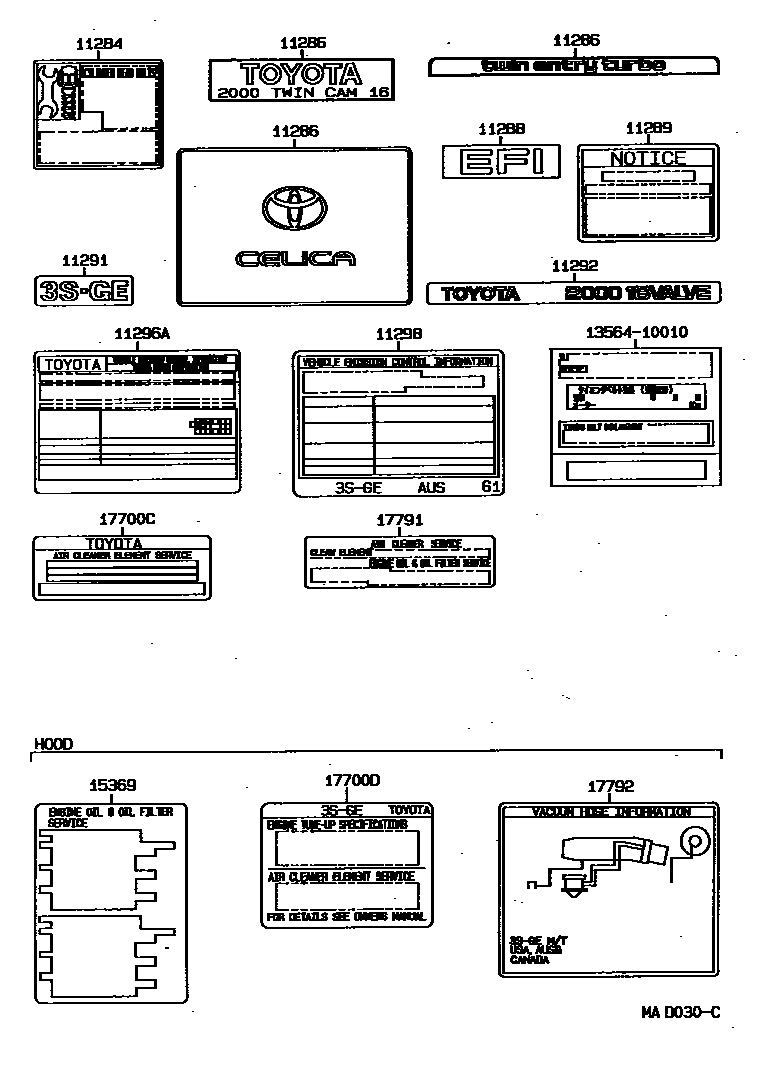

Toyota CELICA — CAUTION PLATE & NAME PLATE (ENGINE)
11284PLATE, ENGINE BOLT INFORMATION
11286PLATE, ENGINE SPECIFICATION
11288PLATE, ENGINE SYSTEM
11289PLATE, SPARK PLUG CAUTION
11291PLATE, ENGINE NAME
11296ALABEL, ENGINE SERVICE INFORMATION
11298PLATE, EMISSION CONTROL INFORMATION
15369PLATE, ENGINE OIL CAUTION
17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)
17700DPLATE, ENGINE CAUTION
17791LABEL, MAINTENANCE INFORMATION
17792PLATE, ENGINE VACUUM HOSE INFORMATION
1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION
main13564-10010
14 parts on this diagram · 1 diagram in section
