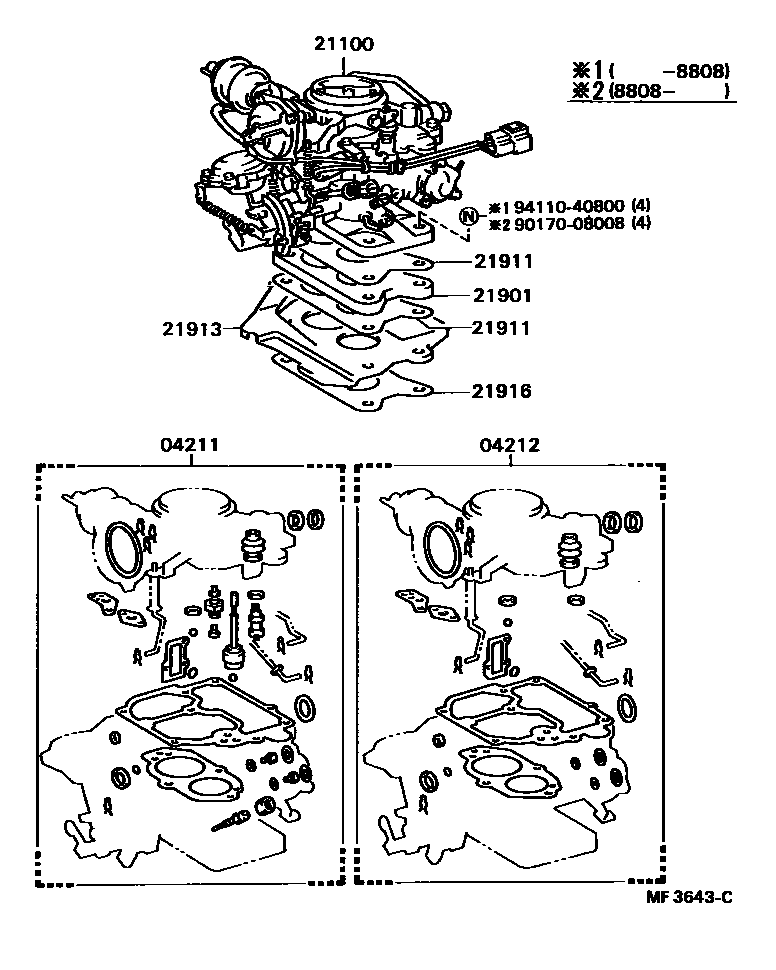

Toyota CELICA — CARBURETOR ASSEMBLY

04211CARBURETOR KIT

main04211-16070i198708-198908

04212GASKET KIT, CARBURETOR

main04212-14020i198708-198908

21100CARBURETOR ASSY

main21100-16062i198708-198908

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-15012i198708-198908

21911GASKET, CARBURETOR

main21916-15030×2i198708-198908

21913INSULATOR, CARBURETOR HEAT, NO.2

main21913-15030i198708-198908

21916GASKET, CARBURETOR, NO.2

main21914-15020i198708-198908

9017008008

main90170-08008

9411040800

main94110-40800

9 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota CELICA

This section contains 9 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota CELICA. Key components include: CARBURETOR KIT, GASKET KIT, CARBURETOR, CARBURETOR ASSY, INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1, GASKET, CARBURETOR.
