Toyota CELICA — CARBURETOR ASSEMBLY

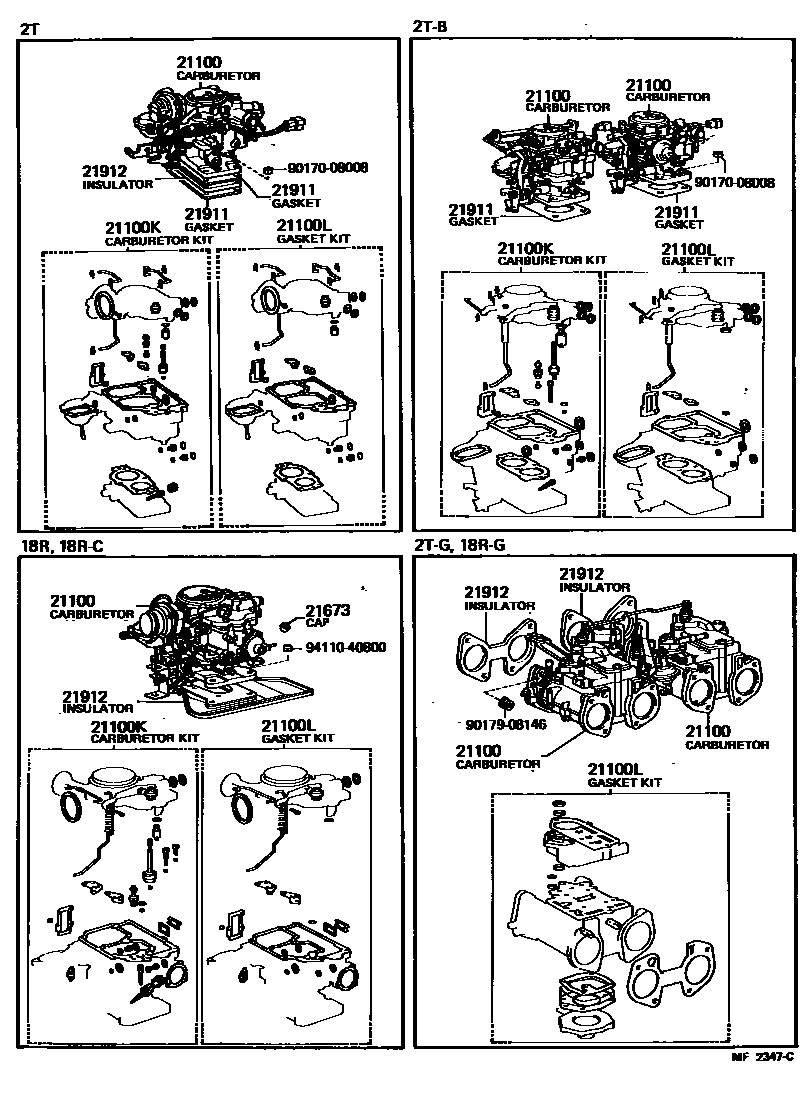

Parts diagram

21100CARBURETOR ASSY

main21100-26232i197708-197908

RR CARBURETOR

main21100-26342i197708-197908

FR CARBURETOR

main21100-26495i197708-197805

main21100-26496i197805-197908

main21100-26504i197708-197805

main21100-26505i197805-197908

main21100-26720i197708-197805

main21100-26830i197908-198107

main21100-26840i197908-198107

main21100-26850i197908-198107

FR CARBURETOR

main21100-26860i197908-198107

RR CARBURETOR

main21100-26890i197908-198107

main21100-34400i197708-197809

main21100-34401i197809-197908

main21100-34410i197708-197809

main21100-34411i197809-197908

main21100-34420i197804-197809

HONG KONG SPEC

main21100-34421i197809-197903

main21100-34422i197903-197908

main21100-34430i197708-197809

main21100-34431i197809-197908

main21100-34432i197908-198107

main21100-34530i197809-197908

main21100-34531i197908-198107

main21100-34540i197809-197903

HONG KONG SPEC

main21100-34541i197903-197908

HONG KONG SPEC

main21100-34580i197908-198107

main21100-34590i197908-198107

HONG KONG SPEC

main21100-34600i197908-198107

main21100-34610i197908-198107

main21100-88229i197708-197908

FR CARBURETOR

main21100-88236i197708-197908

FR CARBURETOR

main21100-88240i197708-197908

RR CARBURETOR

main21100-88243i197908-198107

FR CARBURETOR

main21100-88244i197908-198107

RR CARBURETOR

main21100-88253i197708-197908

RR CARBURETOR

main21100-88256i197908-198107

FR CARBURETOR

main21100-88257i197908-198107

RR CARBURETOR

21100KCARBURETOR KIT

main04211-26140×2i197708-197908

main04211-26150i197708-197908

main04211-26200i197908-198004

main04211-26201i198004-198107

main04211-26220×2i197908-198004

main04211-26221×2i198004-198107

main04211-34200i197804-198107

HONG KONG SPEC

main04211-34210i197708-198107

21100LGASKET KIT, CARBURETOR

main04212-26020×2i197708-197908

main04212-26040i197708-197908

main04212-26070×2i197908-198107

main04212-28012i197908-198107

main04212-36010i197708-198107

main04212-37011×2i197708-197908

main04212-37022×2i197908-198107

21673CAP, IDLE LIMIT

main21673-38020i197708-198107

21911GASKET, CARBURETOR

main21911-25010×2i197708-198107

main21911-26010×2i197708-198107

21912INSULATOR, CARBURETOR HEAT

main21912-26020i197708-197908

main21912-26021i197908-198107

main21912-34062i197708-197908

main21912-34063i197908-198107

main21912-88210×2i197708-198107

main21912-88250×2i197708-198107

9017008008

main90170-08008

9017908146

main90179-08146

9411040800

main94110-40800

9 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota CELICA

This section contains 9 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota CELICA. Key components include: CARBURETOR ASSY, CARBURETOR KIT, GASKET KIT, CARBURETOR, CAP, IDLE LIMIT, GASKET, CARBURETOR.
