E
EPC Data

Toyota CELICA — BODY STRIPE

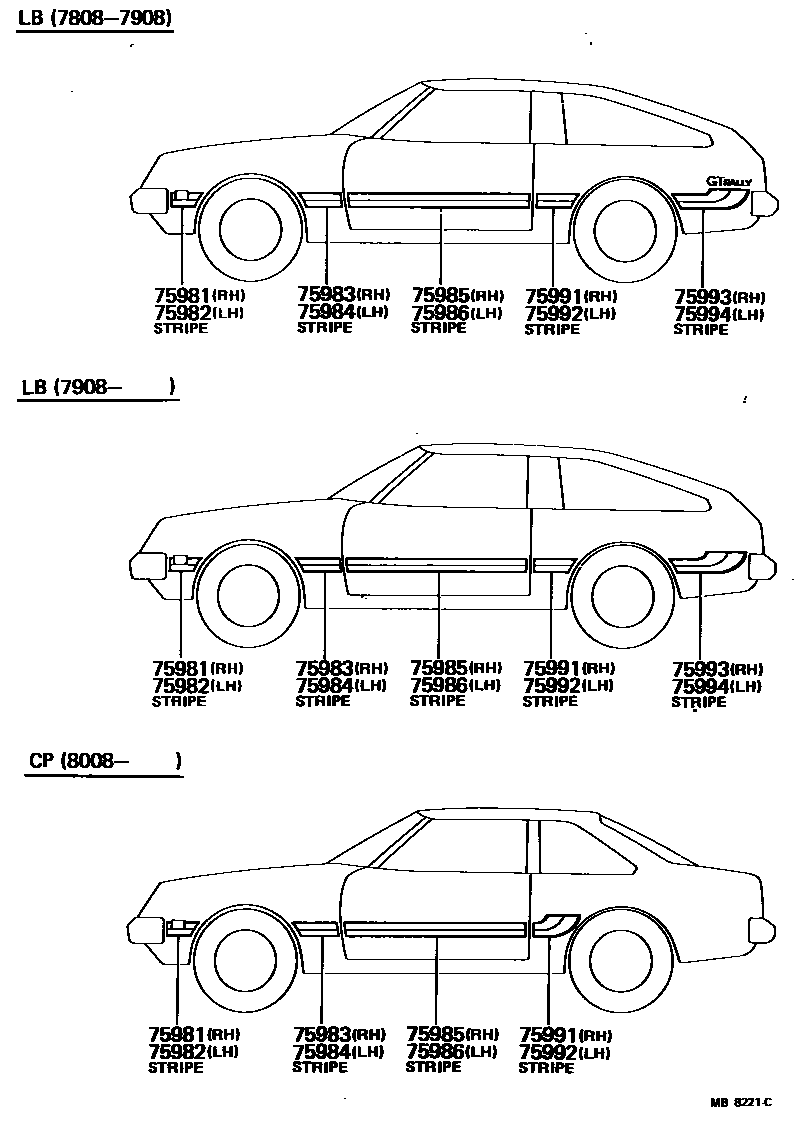

Parts diagram
75981STRIPE, FRONT FENDER, RH NO.1
main75981-14110-02i197808-197908
RED & GOLD,RED/MAROON
main75981-14110-08i197808-197908
WHITE & GOLD,IVORY
main75981-14111-02i197908-198008
RED & GOLD,RED/MAROON
main75981-14111-08i198008-198011
WHITE & GOLD,IVORY
main75981-14112-02i198011-198107
RED & GOLD,RED/MAROON
main75981-14112-08i198011-198107
WHITE & GOLD,IVORY
75982STRIPE, FRONT FENDER, LH NO.1
main75982-14110-02i197808-197908
RED & GOLD,RED/MAROON
main75982-14110-08i197808-197908
WHITE & GOLD,IVORY
main75982-14111-02i197908-198008
RED & GOLD,RED/MAROON
main75982-14111-08i198008-198011
WHITE & GOLD,IVORY
main75982-14112-02i198011-198107
RED & GOLD,RED/MAROON
main75982-14112-08i198011-198107
WHITE & GOLD,IVORY
75983STRIPE, FRONT FENDER, RH NO.2
main75983-14100-02i198008-198011
RED & GOLD,RED/MAROON
main75983-14100-08i198008-198011
WHITE & GOLD,IVORY
main75983-14101-02i198011-198107
RED & GOLD,RED/MAROON
main75983-14101-08i198011-198107
WHITE & GOLD,IVORY
75984STRIPE, FRONT FENDER, LH NO.2
main75984-14100-02i198008-198011
RED & GOLD,RED/MAROON
main75984-14100-08i198008-198011
WHITE & GOLD,IVORY
main75984-14101-02i198011-198107
RED & GOLD,RED/MAROON
main75984-14101-08i198011-198107
WHITE & GOLD,IVORY
75985STRIPE, FRONT DOOR, RH
main75985-14090-02i198008-198011
RED & GOLD,RED/MAROON
main75985-14090-08i198008-198011
WHITE & GOLD,IVORY
main75985-14091-02i198011-198107
RED & GOLD,RED/MAROON
main75985-14091-08i198011-198107
WHITE & GOLD,IVORY
75986STRIPE, FRONT DOOR, LH
main75986-14080-02i198003-198003
SPECIAL CAMPAIGN,RED & GOLD,RED/MAROON
main75986-14080-08i198008-198011
WHITE & GOLD,IVORY
main75986-14081-02i198011-198107
RED & GOLD,RED/MAROON
main75986-14081-08i198011-198107
WHITE & GOLD,IVORY
75991STRIPE, QUARTER, RH NO.1
main75991-14060-02i198008-198011
RED & GOLD,RED/MAROON
main75991-14060-08i198008-198011
WHITE & GOLD,IVORY
main75991-14061-02i198011-198107
RED & GOLD,RED/MAROON
main75991-14061-08i198011-198107
WHITE & GOLD,IVORY
main75991-14070-02i198008-198011
RED & GOLD,RED/MAROON
main75991-14070-08i198008-198011
WHITE & GOLD,IVORY
main75991-14071-02i198011-198107
RED & GOLD,RED/MAROON
main75991-14071-08i198011-198107
WHITE & GOLD,IVORY
75992STRIPE, QUARTER, LH NO.1
main75992-14060-02i198008-198011
RED & GOLD,RED/MAROON
main75992-14060-08i198008-198011
WHITE & GOLD,IVORY
main75992-14061-02i198011-198107
RED & GOLD,RED/MAROON
main75992-14061-08i198011-198107
WHITE & GOLD,IVORY
main75992-14070-02i198008-198011
RED & GOLD,RED/MAROON
main75992-14070-08i198008-198011
WHITE & GOLD,IVORY
main75992-14071-02i198011-198107
RED & GOLD,RED/MAROON
main75992-14071-08i198011-198107
WHITE & GOLD,IVORY
75993STRIPE, QUARTER, RH NO.2
main75993-14050-02i198008-198011
RED & GOLD,RED/MAROON
main75993-14050-08i198008-198011
WHITE & GOLD,IVORY
main75993-14051-02i198011-198107
RED & GOLD,RED/MAROON
main75993-14051-08i198011-198107
WHITE & GOLD,IVORY
main75993-14060-02i197808-197908
RED & GOLD,RED/MAROON
main75993-14060-08i197808-197908
WHITE & GOLD,IVORY
75994STRIPE, QUARTER, LH NO.2
main75994-14050-02i198008-198011
RED & GOLD,RED/MAROON
main75994-14050-08i198008-198011
WHITE & GOLD,IVORY
main75994-14051-02i198011-198107
RED & GOLD,RED/MAROON
main75994-14051-08i198011-198107
WHITE & GOLD,IVORY
main75994-14060-02i197808-197908
RED & GOLD,RED/MAROON
main75994-14060-08i197808-197908
WHITE & GOLD,IVORY

10 parts on this diagram · 1 diagram in section

BODY STRIPE for Toyota CELICA

This section contains 10 genuine Toyota parts for the BODY STRIPE system of the Toyota CELICA. Key components include: STRIPE, FRONT FENDER, RH NO.1, STRIPE, FRONT FENDER, LH NO.1, STRIPE, FRONT FENDER, RH NO.2, STRIPE, FRONT FENDER, LH NO.2, STRIPE, FRONT DOOR, RH.
