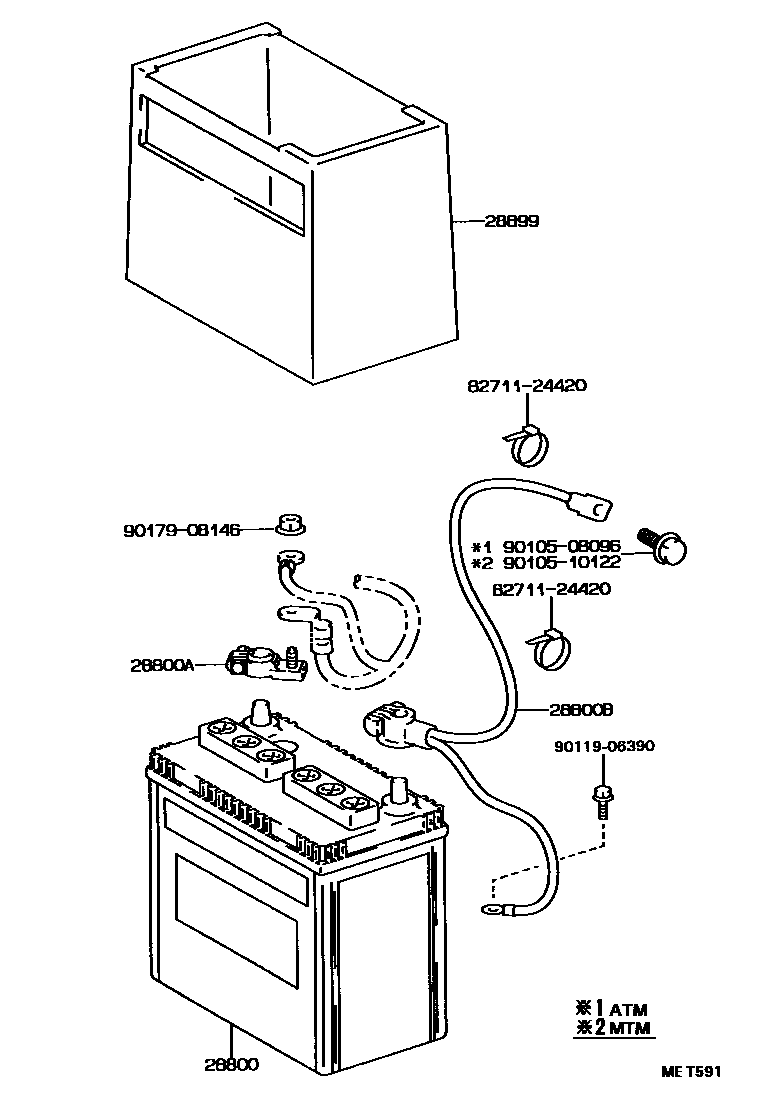

Toyota CELICA — BATTERY & BATTERY CABLE

28800BATTERY

main28800-31021i198911-199311

32C24L

main28800-42030i198911-199311

55D23L

main28800-74060i198911-199311

34B19L

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i198911-199311

main90982-05030i198911-199311

W(32C24L BATTERY); W(32C24L BATTERY) OR W(55D23L BATTERY)

28800BCABLE, BATTERY TO GROUND

main82123-20120i198910-199108

main82123-20121i199108-199311

W(32C24L BATTERY); W(32C24L BATTERY) OR W(55D23L BATTERY)

main82123-20170i198911-199311

28899INSULATOR, BATTERY

main28899-74050i198911-199311

main28899-74070i198911-199311

W(55D23L BATTERY)

main28899-74080i198911-199108

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

9010508096

main90105-08096

9010510122

main90105-10122

9011906390

main90119-06390

9017908146

main90179-08146

9 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota CELICA

This section contains 9 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota CELICA. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND, INSULATOR, BATTERY, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
