Toyota CELICA — BATTERY & BATTERY CABLE

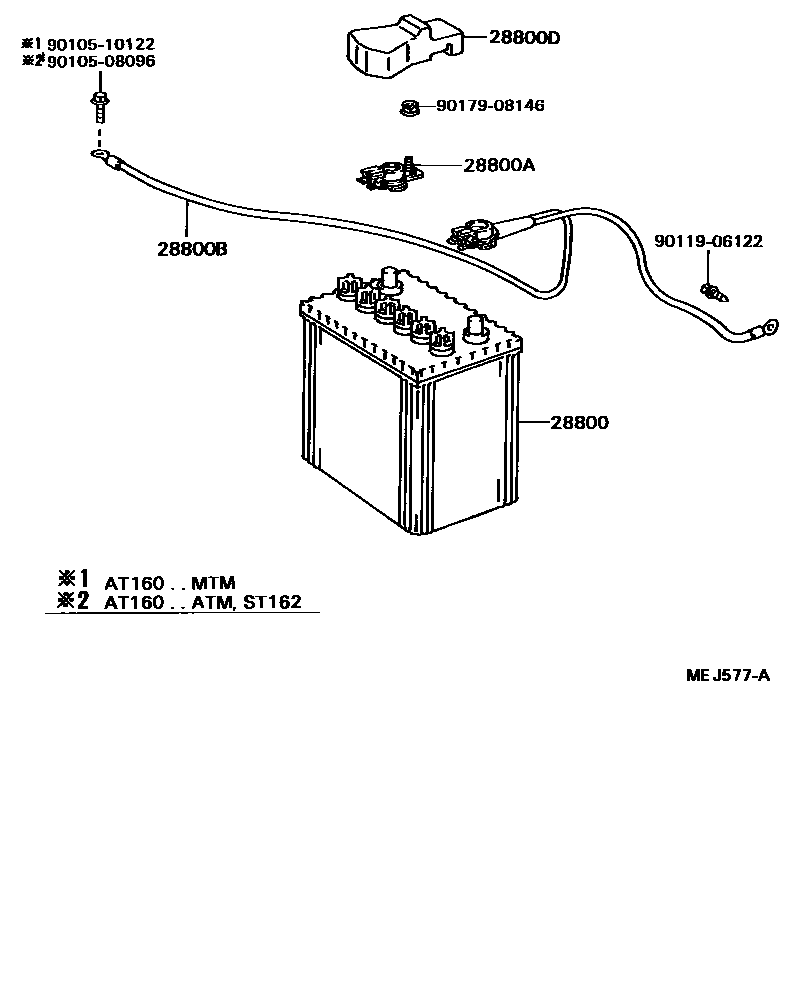

Parts diagram
28800BATTERY
main28800-15050i198708-198908
55D23L,GS
main28800-15060i198708-198908
55D23L,YUASA
main28800-15070i198708-198908
55D23L,KOBE
main28800-15080i198708-198908
55D23L,PANASONIC
main28800-15090i198708-198908
55D23L,FB(FURUKAWA)
main28800-31020i198708-198908
32C24L,KOBE
main28800-31031i198708-198908
32C24L,GS
main28800-70011i198708-198908
34B19L
28800ATERMINAL, BATTERY POSITIVE
main90982-05028i198708-198908
W(BATTERY=34B19L)
main90982-05030i198708-198908
W(BATTERY=32C24L OR 55D23L); W(BATTERY=32C24L)
28800BCABLE, BATTERY TO GROUND
main82123-20080i198708-198805
W(BATTERY=34B19L)
main82123-20081i198805-198908
W(BATTERY=34B19L)
main82123-20090i198708-198805
W(BATTERY=32C24L OR 55D23L); W(BATTERY=32C24L)
main82123-20091i198805-198808
W(BATTERY=32C24L)
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
main82821-12190i198708-198908
9010508096
main90105-08096
9010510122
main90105-10122
9011906122
main90119-06122
9017908146
main90179-08146

8 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota CELICA

This section contains 8 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota CELICA. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND, COVER, CONNECTOR(FOR BATTERY TERMINAL).
