Toyota CELICA — BATTERY & BATTERY CABLE

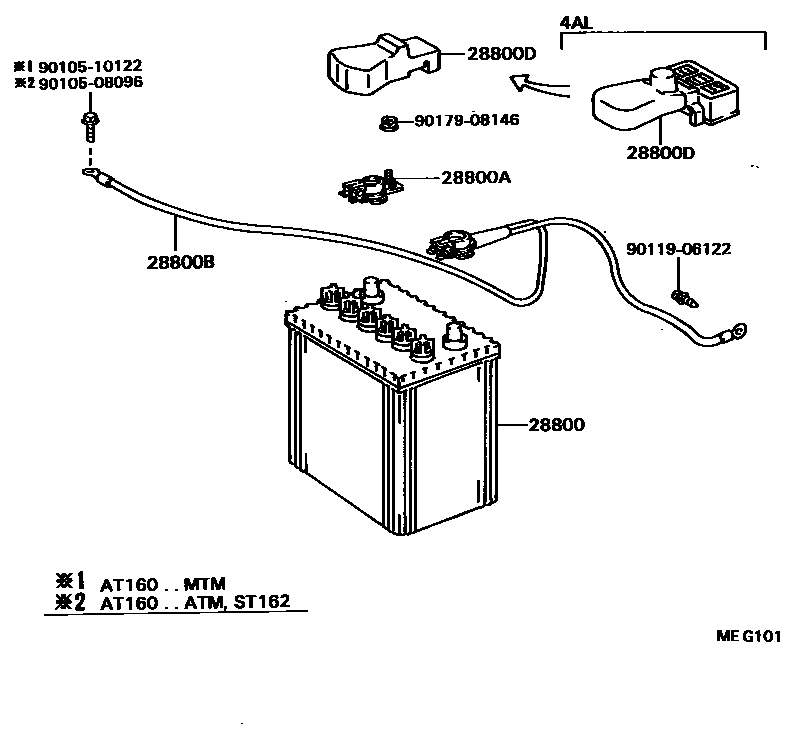

Parts diagram
28800BATTERY
main28800-31031i198508-198708
32C24L,32C24L(N40L)
main28800-43220i198508-198608
55D23L,55D23L-MF
main28800-70011i198508-198708
34B19L,34B19L(NS40ZAL-MF)
28800ATERMINAL, BATTERY POSITIVE
main90982-05028i198508-198708
BATTERY;34B19L(NS40ZAL)
main90982-05029i198608-198708
BATTERY;32C24L(N40L)
main90982-05030i198508-198708
BATTERY;32C24L(N40L) OR 55D23L
28800BCABLE, BATTERY TO GROUND
main82123-20080i198508-198708
BATTERY;34B19L(NS40ZAL)
main82123-20090i198508-198708
BATTERY;32C24L(N40L) OR 55D23L
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
main82821-12190i198508-198708
main82821-20100i198508-198612
9010508096
main90105-08096
9010510122
main90105-10122
9011906122
main90119-06122
9017908146
main90179-08146

8 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota CELICA

This section contains 8 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota CELICA. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND, COVER, CONNECTOR(FOR BATTERY TERMINAL).
