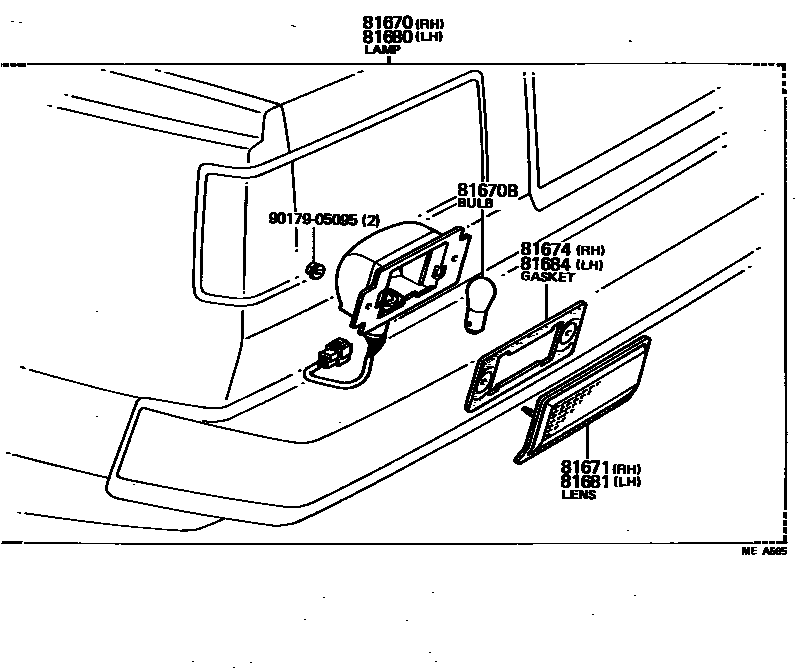

Toyota CELICA — BACK UP LAMP
81670LAMP ASSY, BACK-UP, RH
81670BBULB(FOR BACK-UP LAMP)
12V 21W,12V 21W(ECE SPEC)
12V 23W,12V 23W
81671LENS, BACK-UP LAMP, RH
81674GASKET, BACK-UP LAMP BODY, RH
81680LAMP ASSY, BACK UP, LH
81681LENS, BACK-UP LAMP, LH
81684GASKET, BACK UP LAMP BODY, LH
9017905095
main90179-05095
8 parts on this diagram · 1 diagram in section
BACK UP LAMP for Toyota CELICA
This section contains 8 genuine Toyota parts for the BACK UP LAMP system of the Toyota CELICA. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, GASKET, BACK-UP LAMP BODY, RH, LAMP ASSY, BACK UP, LH.
