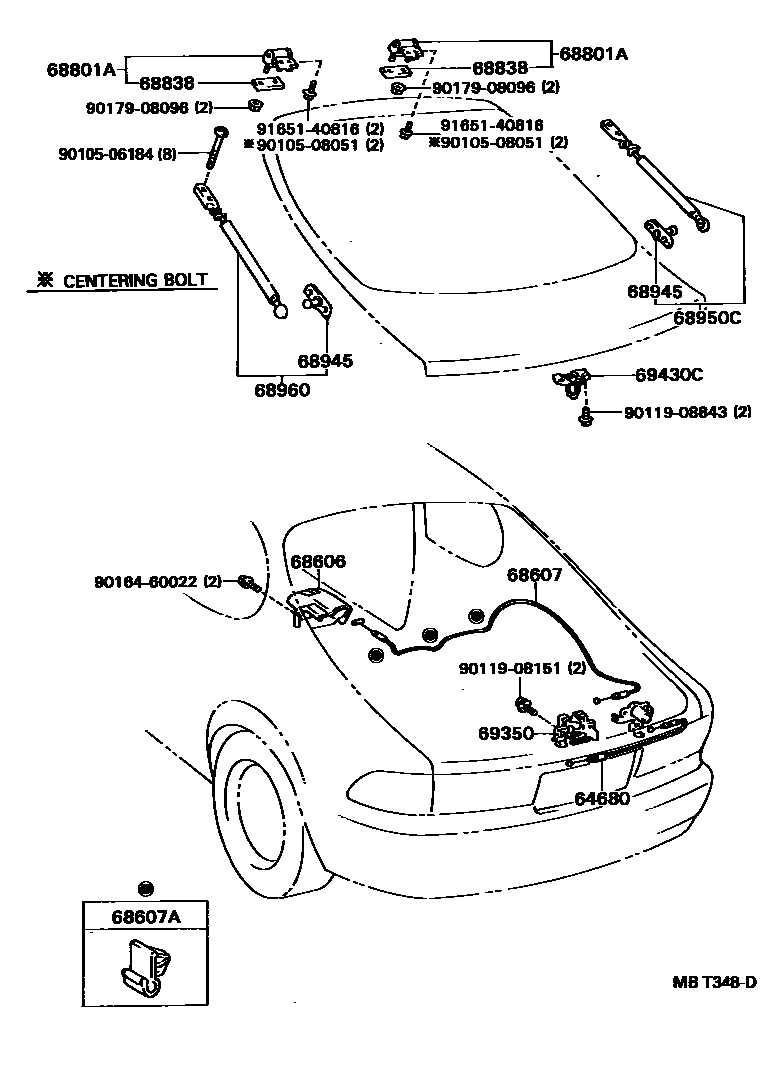

Toyota CELICA — BACK DOOR LOCK & HANDLE
64680CABLE ASSY, BACK DOOR LOCK CONTROL
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
68801AHINGE SUB-ASSY, BACK DOOR, UPPER
68838PAD, BACK DOOR HINGE, NO.1
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68950CSTAY ASSY, BACK DOOR, RH
W(REAR WINDOW WIPER)
W(REAR WINDOW WIPER)
KAYABA; W(REAR SPOILER) OR W(REAR SPOILER & REAR WINDOW WIPER),KAYABA
GAS SPRING; W(REAR SPOILER) OR W(REAR SPOILER & REAR WINDOW WIPER),GAS SPRING
KAYABA; W(REAR SPOILER),KAYABA
68960STAY ASSY, BACK DOOR, LH
W(REAR WINDOW WIPER)
W(REAR WINDOW WIPER)
KAYABA
KAYABA; W(REAR SPOILER),KAYABA
GAS SPRING; W(REAR SPOILER) OR W(REAR SPOILER & REAR WINDOW WIPER),GAS SPRING
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506184
main90105-06184
9010508051
main90105-08051
9011908151
main90119-08151
9011908843
main90119-08843
9016460022
main90164-60022
9017908096
main90179-08096
9165140816
main91651-40816
18 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota CELICA
This section contains 18 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota CELICA. Key components include: CABLE ASSY, BACK DOOR LOCK CONTROL, LEVER SUB-ASSY, BACK DOOR LOCK OPEN, CABLE SUB-ASSY, BACK DOOR LOCK CONTROL, CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE), HINGE SUB-ASSY, BACK DOOR, UPPER.
