Toyota CELICA — BACK DOOR LOCK & HANDLE

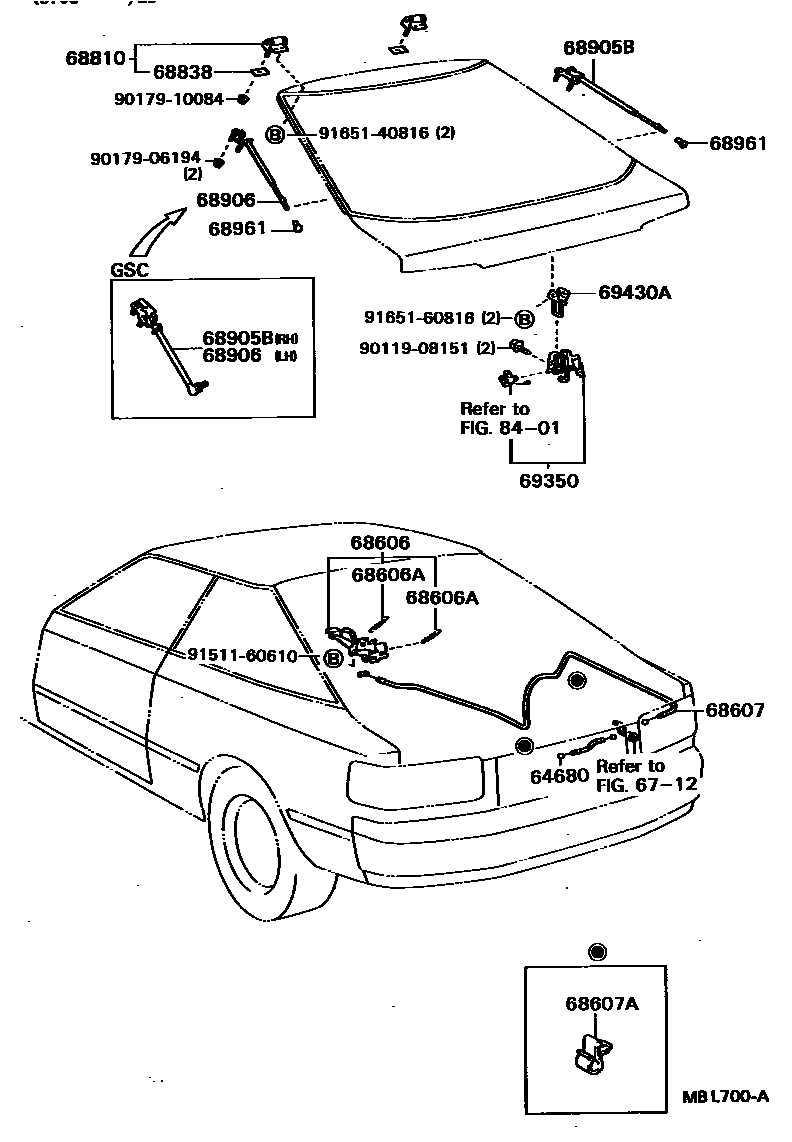

Parts diagram
64680CABLE ASSY, BACK DOOR LOCK CONTROL
main64680-20010i198708-198908
6712
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
main64606-20060i198708-198908
main64606-20070i198708-198908
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
main90506-09004i198708-198908
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
main64607-20190i198708-198908
main64607-20231i198708-198908
68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
main69749-12010i198708-198908
68810HINGE ASSY, BACK DOOR, UPPER
main68801-20030i198708-198808
sub68801-20031
main68801-20031i198810-198908
68838PAD, BACK DOOR HINGE, NO.1
main68838-20010i198708-198808
sub68838-20011
main68838-20011i198808-198908
68905BSTAY SUB-ASSY, BACK DOOR, RH
main68905-20011i198708-198808
KYB
sub68905-20012
main68905-20012i198808-198908
KYB
main68905-20021i198708-198808
W(RR WIPER),KYB
sub68905-20022
main68905-20021i198708-198808
W(TILT STEERING & RR WIPER),KYB
sub68905-20022
main68905-20021i198708-198808
KYB
sub68905-20022
main68905-20022i198808-198908
W(TILT STEERING & RR WIPER),KYB
main68905-20022i198808-198908
W(RR WIPER),KYB
main68905-20022i198808-198908
KYB
main68905-20031i198708-198808
W(REAR SPOILER),KYB
sub68905-20032
main68905-20031i198708-198808
W(REAR SPOILER & RR WIPER),KYB
sub68905-20032
main68905-20032i198808-198908
W(REAR SPOILER),KYB
main68905-20032i198808-198908
W(REAR SPOILER & RR WIPER),KYB
main68950-20091i198808-198908
GSC
sub68950-20092
68906STAY SUB-ASSY, BACK DOOR, LH
main68906-20011i198708-198808
KYB
sub68906-20012
main68906-20012i198808-198908
KYB
main68906-20021i198708-198808
W(RR WIPER),KYB
sub68906-20022
main68906-20021i198708-198808
W(TILT STEERING & RR WIPER),KYB
sub68906-20022
main68906-20021i198708-198808
KYB
sub68906-20022
main68906-20022i198808-198908
W(TILT STEERING & RR WIPER),KYB
main68906-20022i198808-198908
KYB
main68906-20022i198808-198908
W(RR WIPER),KYB
main68906-20031i198708-198808
W(REAR SPOILER),KYB
sub68906-20032
main68906-20031i198708-198808
W(REAR SPOILER & RR WIPER),KYB
sub68906-20032
main68906-20032i198808-198908
W(REAR SPOILER),KYB
main68906-20032i198808-198908
W(REAR SPOILER & RR WIPER),KYB
main68960-20031i198808-198908
GSC
sub68960-20032
68961BOLT, BACK DOOR STAY
main68961-20060i198708-198908
69350LOCK ASSY, BACK DOOR
main69350-20030i198708-198908
69430ASTRIKER ASSY, BACK DOOR LOWER LOCK
main69430-20060i198708-198908
8401
9011908151
main90119-08151
9017906194
main90179-06194
9017910084
main90179-10084
9151160610
main91511-60610
9165140816
main91651-40816
9165160816
main91651-60816

20 parts on this diagram · 1 diagram in section
