Toyota CELICA — BACK DOOR LOCK & HANDLE

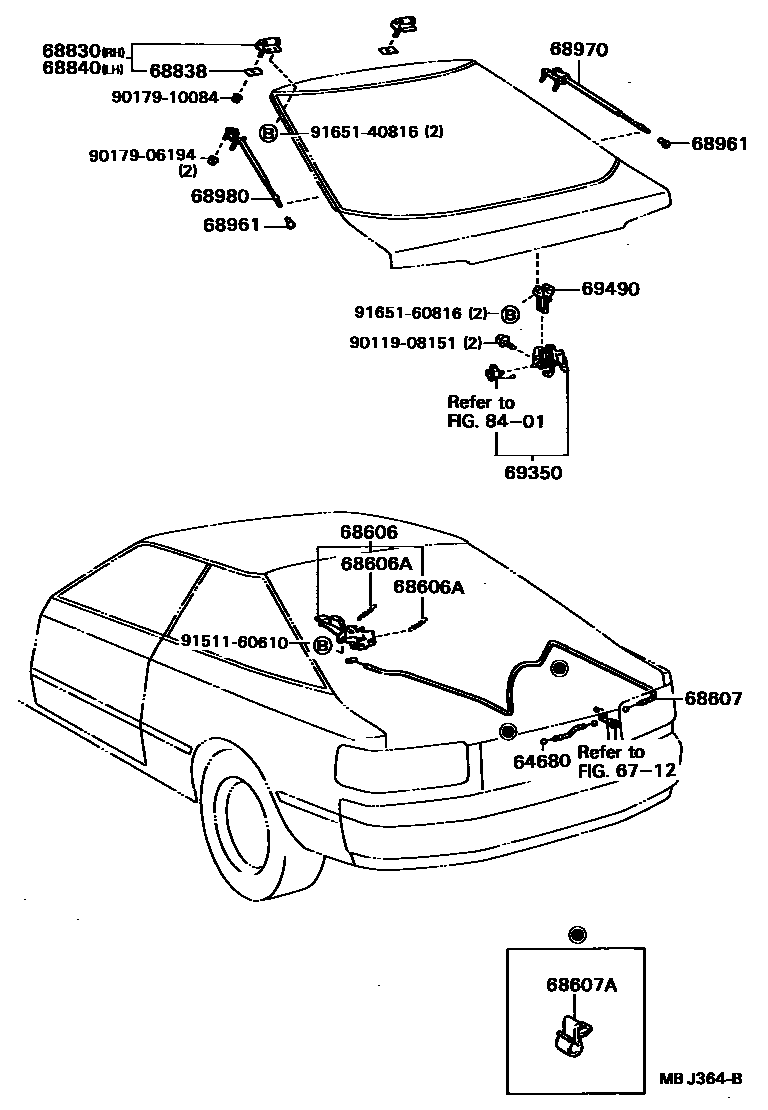

Parts diagram
64680CABLE ASSY, BACK DOOR LOCK CONTROL
main64680-20010i198508-198708
6712LOCK CYLINDER SET
→ Go to FIG 67-12
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
main64606-20060i198508-198708
main64606-20070i198508-198708
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
main90506-09004×2i198508-198708
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
main64607-20230i198508-198604
main64607-20231i198604-198708
main64607-20250i198508-198604
main64607-20251i198604-198708
68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
main69749-12010×2i198508-198708
68830HINGE ASSY, BACK DOOR, RH
main68801-20030i198508-198708
68838PAD, BACK DOOR HINGE, NO.1
main68838-20010×2i198508-198708
68840HINGE ASSY, BACK DOOR, LH
main68801-20030i198508-198708
68961BOLT, BACK DOOR STAY
main68961-20060×2i198508-198708
68970STAY ASSY, BACK DOOR, RH
main68905-20010i198508-198612
W/O RR WIPER,RR SPOILER
main68905-20011i198612-198708
W/O RR WIPER,RR SPOILER
main68905-20020i198508-198608
W/RR WIPER,W/O RR SPOILER
main68905-20021i198612-198708
W/RR WIPER,W/O RR SPOILER
main68905-20030i198508-198612
W/RR WIPER,RR SPOILER
main68905-20031i198612-198708
W/RR WIPER,RR SPOILER
68980STAY ASSY, BACK DOOR
main68906-20010i198508-198612
W/O RR WIPER,RR SPOILER
main68906-20011i198612-198708
W/O RR WIPER,RR SPOILER
main68906-20020i198508-198608
W/RR WIPER,W/O RR SPOILER
main68906-20021i198612-198708
W/RR WIPER,W/O RR SPOILER
main68906-20030i198508-198612
W/RR WIPER,RR SPOILER
main68906-20031i198612-198708
W/RR WIPER,RR SPOILER
69350LOCK ASSY, BACK DOOR
main69350-20030i198508-198708
69490STRIKER ASSY, BACK DOOR LOCK
main69430-20060i198508-198708
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9011908151
main90119-08151
9017906194
main90179-06194
9017910084
main90179-10084
9151160610
main91511-60610
9165140816
main91651-40816
9165160816
main91651-60816

21 parts on this diagram · 1 diagram in section

BACK DOOR LOCK & HANDLE for Toyota CELICA

This section contains 21 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota CELICA. Key components include: CABLE ASSY, BACK DOOR LOCK CONTROL, LOCK CYLINDER SET, LEVER SUB-ASSY, BACK DOOR LOCK OPEN, SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER), CABLE SUB-ASSY, BACK DOOR LOCK CONTROL.
