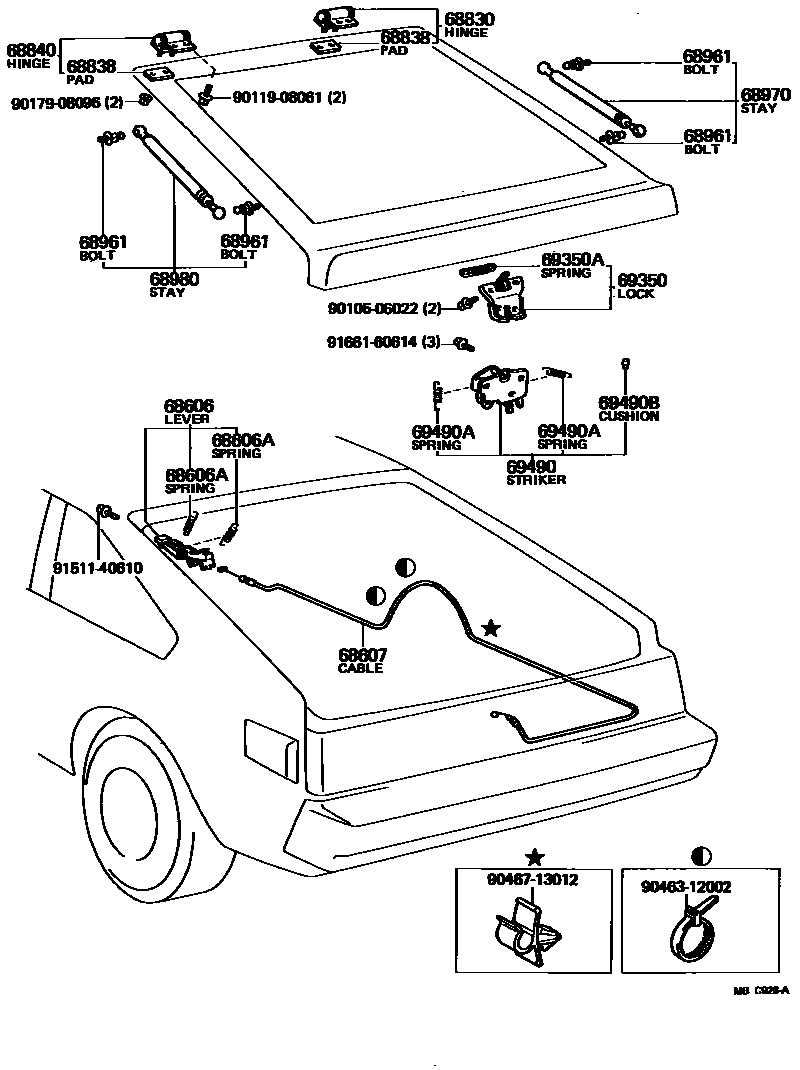

Toyota CELICA — BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
GENERAL COUNTRIES SPEC
68830HINGE ASSY, BACK DOOR, RH
68838PAD, BACK DOOR HINGE, NO.1
68840HINGE ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
68970STAY ASSY, BACK DOOR, RH
W/RR WIPER
68980STAY ASSY, BACK DOOR
W/RR WIPER
69350LOCK ASSY, BACK DOOR
W/OPENER
W/OPENER
69350ASPRING(FOR BACK DOOR LOCK)
69490STRIKER ASSY, BACK DOOR LOCK
W/OPENER
69490ASPRING(FOR BACK DOOR LOCK STRIKER)
WD=0.7
WD=1.6
WD=0.8,W/OPENER
69490BCUSHION(FOR BACK DOOR LOCK STRIKER)
9010506022
main90105-06022
9011908061
main90119-08061
9017908096
main90179-08096
9046312002
main90463-12002
9046713012
main90467-13012
9151140610
main91511-40610
9166160614
main91661-60614
21 parts on this diagram · 2 diagrams in section
BACK DOOR LOCK & HANDLE for Toyota CELICA
This section contains 23 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota CELICA. Key components include: LEVER SUB-ASSY, BACK DOOR LOCK OPEN, SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER), CABLE SUB-ASSY, BACK DOOR LOCK CONTROL, HINGE ASSY, BACK DOOR, RH, PAD, BACK DOOR HINGE, NO.1.
