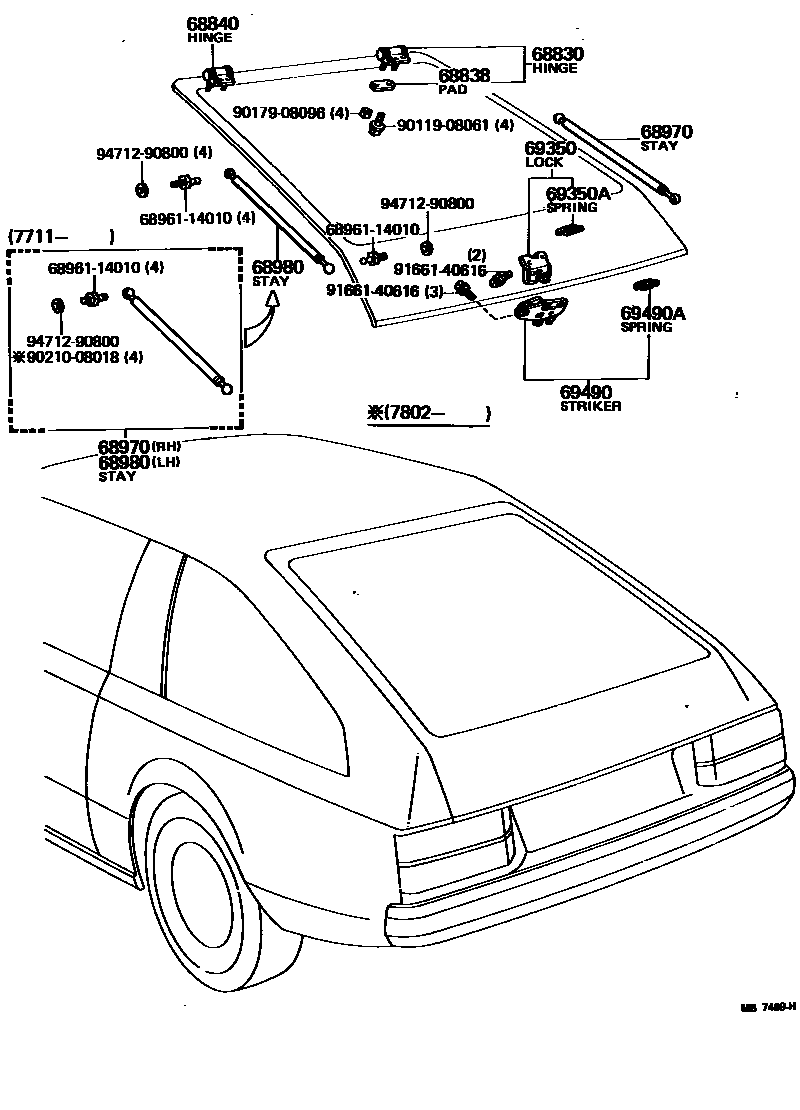

Toyota CELICA — BACK DOOR LOCK & HANDLE
68830HINGE ASSY, BACK DOOR, RH
68838PAD, BACK DOOR HINGE, NO.1
68840HINGE ASSY, BACK DOOR, LH
68970STAY ASSY, BACK DOOR, RH
68980STAY ASSY, BACK DOOR
69350LOCK ASSY, BACK DOOR
69350ASPRING(FOR BACK DOOR LOCK)
69490STRIKER ASSY, BACK DOOR LOCK
69490ASPRING(FOR BACK DOOR LOCK STRIKER)
WD=0.7
6896114010BOLT, BACK DOOR STAY
main68961-14010
9011908061
main90119-08061
9017908096
main90179-08096
9021008018
main90210-08018
9166140616
main91661-40616
9471290800
main94712-90800
15 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota CELICA
This section contains 15 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota CELICA. Key components include: HINGE ASSY, BACK DOOR, RH, PAD, BACK DOOR HINGE, NO.1, HINGE ASSY, BACK DOOR, LH, STAY ASSY, BACK DOOR, RH, STAY ASSY, BACK DOOR.
