Toyota CELICA — ARMREST & VISOR

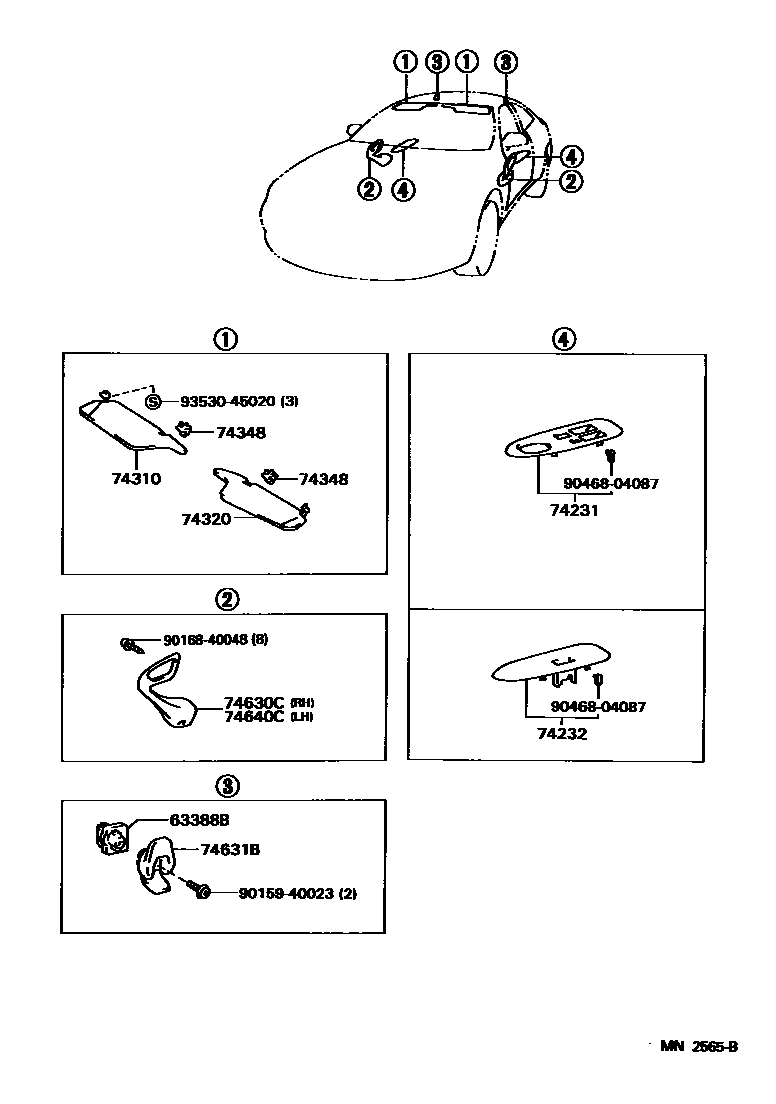

Parts diagram
63388BSTOPPER, ROOF HEADLINING TRIM CLIP
main63388-20030i199311
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-20380-C0i199311
BLACK,TRIM2#
main74231-20400-C0i199311
BLACK,TRIM2#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-20250-C0i199311
BLACK,TRIM2#
main74232-20260-C0i199311
BLACK,TRIM2#
74310VISOR ASSY, RH
main74310-2B430-B0i199508-199801
LT. GRAY,TRIM2#
main74310-2B440-B0i199508-199606
W(*80;DRIVER SIDE),LT. GRAY,TRIM2#
main74310-2B450-B0i199508-199606
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),LT. GRAY,TRIM2#
main74310-2B490-B0i199311-199405
SHADOW GRAY,TRIM2#
main74310-2B490-B1i199405-199508
LT. GRAY,TRIM2#
main74310-2B530-B0i199311-199405
W(*80;DRIVER SIDE),SHADOW GRAY,TRIM2#
main74310-2B530-B1i199405-199508
W(*80;DRIVER SIDE),LT. GRAY,TRIM2#
main74310-2B720-B0i199508-199606
LT. GRAY,TRIM2#
main74310-2B850-B0i199606-199708
W(*80;DRIVER SIDE),LT. GRAY,TRIM2#
main74310-2B851-B0i199708-199712
W(*80;DRIVER SIDE),LT. GRAY,TRIM2#
main74310-2B860-B0i199606-199708
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),LT. GRAY,TRIM2#
main74310-2B861-B0i199708-199801
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),LT. GRAY,TRIM2#
main74310-2B880-B0i199606-199708
LT. GRAY,TRIM2#
main74310-2B881-B0i199708-199710
LT. GRAY,TRIM2#
main74310-2D170-B0i199801
LT. GRAY,TRIM2#
main74310-2D180-B0i199801
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),LT. GRAY,TRIM2#
74320VISOR ASSY, LH
main74320-2B310-B0i199311-199405
SHADOW GRAY,TRIM2#
main74320-2B310-B1i199405-199508
LT. GRAY,TRIM2#
main74320-2B470-B0i199508-199801
LT. GRAY,TRIM2#
main74320-2B580-B0i199508-199606
LT. GRAY,TRIM2#
main74320-2B740-B0i199606-199708
LT. GRAY,TRIM2#
main74320-2B741-B0i199708-199801
LT. GRAY,TRIM2#
main74320-2B890-B0i199801
LT. GRAY,TRIM2#
main74320-2D010-B0i199801
LT. GRAY,TRIM2#
74348HOLDER, VISOR
main74348-22020-B2i199311-199508
LI. GRAY,TRIM2#
main74348-22020-B6i199508-199908
LT.GRAY,TRIM2#
74630CGRIP ASSY, DOOR ASSIST, RH
main74630-20070-C0i199311
BLACK,TRIM2#
74631BHOOK, COAT
main74631-20060-22i199311
BLACK,TRIM2#
74640CGRIP ASSY, DOOR ASSIST, LH
main74640-20070-C0i199311
SHADOW GRAY,TRIM2#
9015940023
main90159-40023
9016840048
main90168-40048
9046804087
main90468-04087
9353045020
main93530-45020

13 parts on this diagram · 1 diagram in section
