Toyota CELICA — ARMREST & VISOR

63388BSTOPPER, ROOF HEADLINING TRIM CLIP

main63388-20020i198910-199311

74310VISOR ASSY, RH

main74310-20830-03i198911-199311

SHADOW GRAY,TRIM1#

main74310-20830-04i198911-199311

DARK BLUE,TRIM8#

main74310-20870-03i198911-199311

W(SUNROOF),SHADOW GRAY,TRIM1#

main74310-20870-03i198911-199311

SHADOW GRAY,TRIM1#

main74310-20870-04i198911-199311

W(SUNROOF),DARK BLUE,TRIM8#

main74310-20870-04i198911-199311

DARK BLUE,TRIM8#

main74310-2B010-03i198910-199311

SHADOW GRAY,TRIM1#

main74310-2B010-04i198910-199311

DARK BLUE,TRIM8#

main74310-2B030-03i198910-199008

SHADOW GRAY,TRIM1#

main74310-2B160-03i199008-199311

SHADOW GRAY,TRIM1#

main74310-2B160-04i199008-199208

DARK BLUE,TRIM8#

main74310-2B170-03i199008-199311

SHADOW GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-20780-03i198911-199311

SHADOW GRAY,TRIM1#

main74320-20780-04i198911-199311

DARK BLUE,TRIM8#

main74320-20820-03i198911-199311

SHADOW GRAY,TRIM1#

main74320-20820-03i198911-199311

W(SUNROOF),SHADOW GRAY,TRIM1#

main74320-20820-04i198911-199311

DARK BLUE,TRIM8#

main74320-20820-04i198911-199311

W(SUNROOF),DARK BLUE,TRIM8#

main74320-20840-03i198910-199311

SHADOW GRAY,TRIM1#

main74320-20840-04i198910-199311

DARK BLUE,TRIM8#

main74320-20890-03i199008-199311

SHADOW GRAY,TRIM1#

main74320-20890-04i199008-199208

DARK BLUE,TRIM8#

74348HOLDER, VISOR

main74348-20040-02i199008-199108

RED,TRIM1#

main74348-20040-03i199008-199108

LIGHT GRAY

main74348-20040-03i198910-199311

LIGHT GRAY,TRIM1#

main74348-20040-04i198910-199311

LIGHT BLUE,TRIM8#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-22050-03i198910-199311

LIGHT GRAY,TRIM1#

main74610-22050-14i198910-199311

DARK BLUE,TRIM8#

74612COVER, ASSIST GRIP

main74612-20050i199309-199311

main74612-20050-03i199107-199309

SHADOW GRAY,TRIM1#

main74612-20050-04i199107-199311

DARK BLUE,TRIM8#

main74612-22050-13i198910-199109

LIGHT GRAY,TRIM1#

main74612-22050-24i198910-199109

DARK BLUE,TRIM8#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-20030-03i198910-199311

SHADOW GRAY,TRIM1#

main74630-20030-04i198910-199311

DARK BLUE,TRIM8#

main74630-20040-03i198911-199311

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main74630-20040-03i198911-199311

SHADOW GRAY,TRIM1#

main74630-20040-04i198911-199311

W(POWER WINDOW),DARK BLUE,TRIM8#

74631BHOOK, COAT

main74631-20060-03i198910-199309

SHADOW GRAY,TRIM1#

main74631-20060-04i198910-199311

DARK BLUE,TRIM8#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-20030-03i198910-199311

SHADOW GRAY,TRIM1#

main74640-20030-04i198910-199311

DARK BLUE,TRIM8#

main74640-20040-03i198910-199311

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main74640-20040-03i198910-199311

SHADOW GRAY,TRIM1#

main74640-20040-04i198910-199311

W(POWER WINDOW),DARK BLUE,TRIM8#

9015940023

main90159-40023

9015960503

main90159-60503

9016460008

main90164-60008

9016840027

main90168-40027

9016840100

main90168-40100

9018906030

main90189-06030

9353045020

main93530-45020

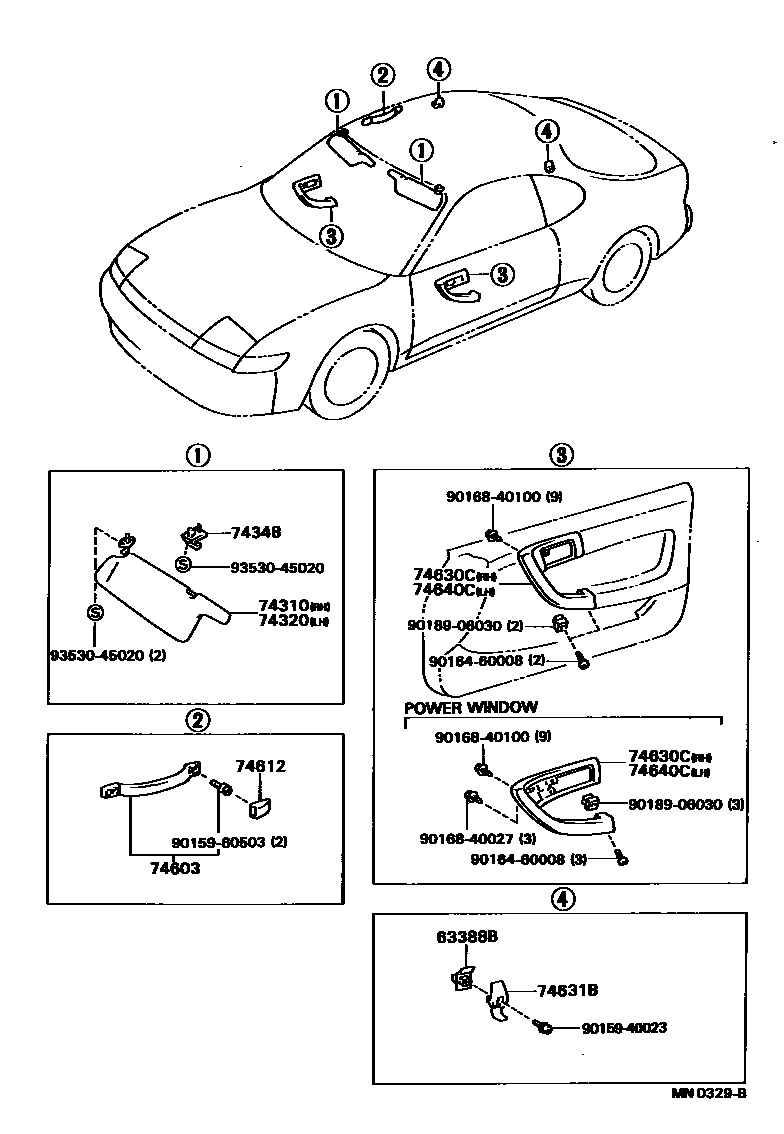

16 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota CELICA

This section contains 16 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CELICA. Key components include: STOPPER, ROOF HEADLINING TRIM CLIP, VISOR ASSY, RH, VISOR ASSY, LH, HOLDER, VISOR, GRIP SUB-ASSY, ASSIST, FRONT.
