Toyota CELICA — ARMREST & VISOR

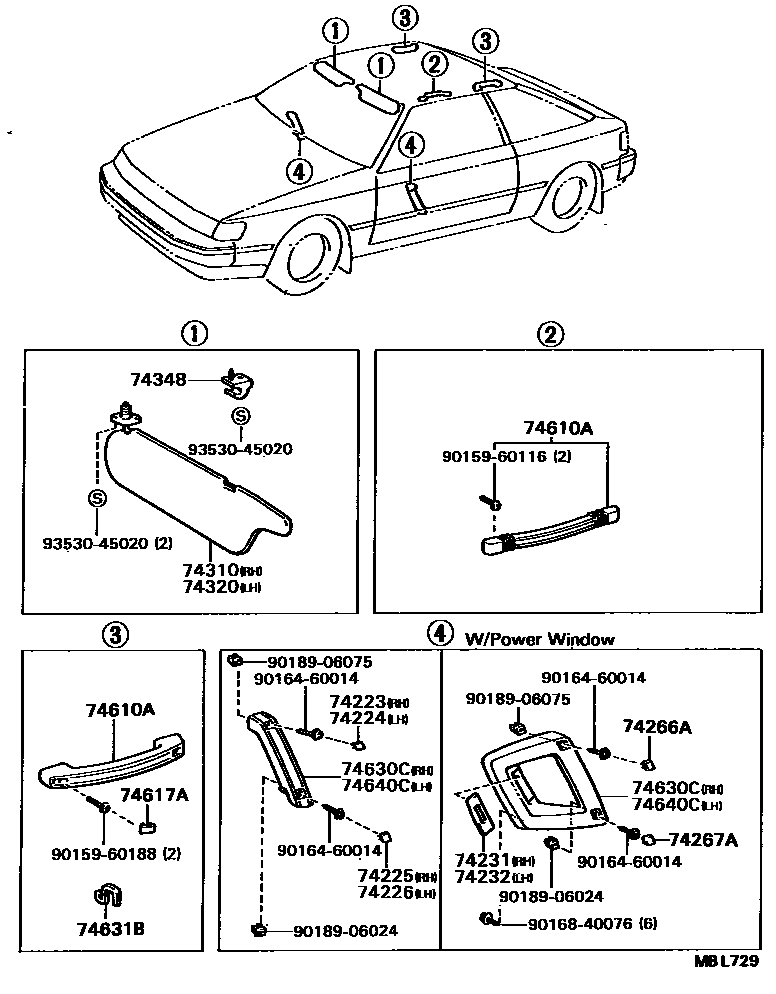

Parts diagram
74223CAP, DOOR ARMREST, RH
main74223-20030-01i198708-198908
BLACK,TRIM2#
main74223-20030-04i198708-198908
DEEP BLUE,TRIM8#
main74223-20030-05i198708-198908
DARK BEIGE,TRIM4#
74224CAP, DOOR ARMREST, LH
main74224-20030-01i198708-198908
BLACK,TRIM2#
main74224-20030-04i198708-198908
DEEP BLUE,TRIM8#
main74224-20030-05i198708-198908
DARK BEIGE,TRIM4#
74225CAP, DOOR ARMREST, REAR RH
main74225-20020-01i198708-198908
BLACK,TRIM2#
main74225-20020-04i198708-198908
DEEP BLUE,TRIM8#
main74225-20020-05i198708-198908
DARK BEIGE,TRIM4#
74226CAP, DOOR ARMREST, REAR LH
main74225-20020-01i198708-198908
BLACK,TRIM2#
main74225-20020-04i198708-198908
DEEP BLUE,TRIM8#
main74225-20020-05i198708-198908
DARK BEIGE,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-20141-01i198708-198908
BLACK,TRIM2#
main74231-20141-04i198708-198908
DEEP BLUE,TRIM8#
main74231-20141-05i198708-198908
DARK BEIGE,TRIM4#
main74231-20151-01i198708-198908
BLACK,TRIM2#
main74231-20151-04i198708-198908
DEEP BLUE,TRIM8#
main74231-20151-05i198708-198908
DARK BEIGE,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-20141-01i198708-198908
BLACK,TRIM2#
main74232-20141-04i198708-198908
DEEP BLUE,TRIM8#
main74232-20141-05i198708-198908
DARK BEIGE,TRIM4#
main74232-20151-01i198708-198908
BLACK,TRIM2#
main74232-20151-04i198708-198908
DEEP BLUE,TRIM8#
main74232-20151-05i198708-198908
DARK BEIGE,TRIM4#
74266ACAP, DOOR ARMREST, NO.1
main74266-20060-01i198708-198908
BLACK,TRIM2#
main74266-20060-04i198708-198908
DEEP BLUE,TRIM8#
main74266-20060-05i198708-198908
DARK BEIGE,TRIM4#
74267ACAP, DOOR ARMREST, NO.2
main74267-20040-01i198708-198908
BLACK,TRIM2#
main74267-20040-04i198708-198908
DEEP BLUE,TRIM8#
main74267-20040-05i198708-198908
DARK BEIGE,TRIM4#
74310VISOR ASSY, RH
main74310-20310-03i198708-198908
SHADOW GRAY,TRIM2#
main74310-20310-04i198708-198908
DEEP BLUE,TRIM8#
main74310-20310-05i198708-198908
DARK BEIGE,TRIM4#
main74310-20460-03i198708-198908
SHADOW GRAY,TRIM2#
main74310-20460-04i198708-198908
DEEP BLUE,TRIM8#
main74310-20460-05i198708-198908
DARK BEIGE,TRIM4#
main74310-20480-03i198708-198908
SHADOW GRAY,TRIM2#
main74310-20480-04i198708-198908
DEEP BLUE,TRIM8#
main74310-20480-05i198708-198908
DARK BEIGE,TRIM4#
main74310-20490-03i198708-198908
SHADOW GRAY,TRIM2#
main74310-20490-04i198708-198908
DEEP BLUE,TRIM8#
main74310-20490-05i198708-198908
DARK BEIGE,TRIM4#
main74310-20540-03i198708-198908
SHADOW GRAY,TRIM2#
main74310-20540-04i198708-198908
DEEP BLUE,TRIM8#
main74310-20540-05i198708-198908
DARK BEIGE,TRIM4#
74320VISOR ASSY, LH
main74320-20410-03i198708-198908
SHADOW GRAY,TRIM2#
main74320-20410-04i198708-198908
DEEP BLUE,TRIM8#
main74320-20410-05i198708-198908
DARK BEIGE,TRIM4#
main74320-20430-03i198708-198908
SHADOW GRAY,TRIM2#
main74320-20430-04i198708-198908
DEEP BLUE,TRIM8#
main74320-20430-05i198708-198908
DARK BEIGE,TRIM4#
main74320-20450-03i198708-198908
SHADOW GRAY,TRIM2#
main74320-20450-04i198708-198908
DEEP BLUE,TRIM8#
main74320-20450-05i198708-198908
DARK BEIGE,TRIM4#
main74320-20460-03i198708-198908
SHADOW GRAY,TRIM2#
main74320-20460-04i198708-198908
DEEP BLUE,TRIM8#
main74320-20460-05i198708-198908
DARK BEIGE,TRIM4#
main74320-20500-03i198708-198908
SHADOW GRAY,TRIM2#
main74320-20500-04i198708-198908
DEEP BLUE,TRIM8#
main74320-20500-05i198708-198908
DARK BEIGE,TRIM4#
74348HOLDER, VISOR
main74348-12020-03i198811-198908
LIGHT GRAY,TRIM2#
main74348-12020-04i198811-198908
LIGHT BLUE,TRIM8#
main74348-12020-25i198811-198908
DARK BEIGE,TRIM4#
main74348-20020-03i198708-198811
SHADOW GRAY,TRIM2#
main74348-20020-04i198708-198811
DEEP BLUE,TRIM8#
main74348-20020-05i198708-198811
DARK BEIGE,TRIM4#
74610AGRIP SUB-ASSY, ASSIST
main74610-10020-14i198708-198908
DEEP BLUE,TRIM8#,RR
main74610-10020-20i198708-198908
DARK BEIGE,TRIM4#,RR
main74610-10020-33i198708-198908
SHADOW GRAY,TRIM2#,RR
main74610-14030-24i198708-198908
DEEP BLUE,TRIM8#,FR
main74610-14030-33i198708-198908
SHADOW GRAY,TRIM2#,FR
main74610-14030-45i198708-198908
DARK BEIGE,TRIM4#,FR
74617APLUG, ASSIST GRIP
main74617-14010-10i198708-198908
SHADOW GRAY,TRIM2#
main74617-14010-30i198708-198908
DARK BEIGE,TRIM4#
main74617-14010-34i198708-198908
DEEP BLUE,TRIM8#
74630CGRIP ASSY, DOOR ASSIST, RH
main74630-20010-01i198708-198908
BLACK,TRIM2#
main74630-20010-04i198708-198908
DEEP BLUE,TRIM8#
main74630-20010-05i198708-198908
DARK BEIGE,TRIM4#
main74630-20021-01i198708-198908
W(POWER WINDOW),BLACK,TRIM2#
main74630-20021-01i198708-198908
BLACK,TRIM2#
main74630-20021-04i198708-198908
DEEP BLUE,TRIM8#
main74630-20021-04i198708-198908
W(POWER WINDOW),DEEP BLUE,TRIM8#
main74630-20021-05i198708-198908
DARK BEIGE,TRIM4#
main74630-20021-05i198708-198908
W(POWER WINDOW),DARK BEIGE,TRIM4#
74631BHOOK, COAT
main74631-14010-10i198708-198908
SHADOW GRAY,TRIM2#
main74631-14010-34i198708-198908
DEEP BLUE,TRIM8#
main74631-14010-45i198708-198908
LIGHT BEIGE,TRIM4#
74640CGRIP ASSY, DOOR ASSIST, LH
main74640-20010-01i198708-198908
BLACK,TRIM2#
main74640-20010-04i198708-198908
DEEP BLUE,TRIM8#
main74640-20010-05i198708-198908
DARK BEIGE,TRIM4#
main74640-20021-01i198708-198908
BLACK,TRIM2#
main74640-20021-01i198708-198908
W(POWER WINDOW),BLACK,TRIM2#
main74640-20021-04i198708-198908
DEEP BLUE,TRIM8#
main74640-20021-04i198708-198908
W(POWER WINDOW),DEEP BLUE,TRIM8#
main74640-20021-05i198708-198908
DARK BEIGE,TRIM4#
main74640-20021-05i198708-198908
W(POWER WINDOW),DARK BEIGE,TRIM4#
9015960116
main90159-60116
9015960188
main90159-60188
9016460014
main90164-60014
9016840076
main90168-40076
9018906024
main90189-06024
9018906075
main90189-06075
9353045020
main93530-45020

23 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota CELICA

This section contains 23 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CELICA. Key components include: CAP, DOOR ARMREST, RH, CAP, DOOR ARMREST, LH, CAP, DOOR ARMREST, REAR RH, CAP, DOOR ARMREST, REAR LH, PANEL, FRONT ARMREST BASE, UPPER RH.
