Toyota CELICA — ARMREST & VISOR

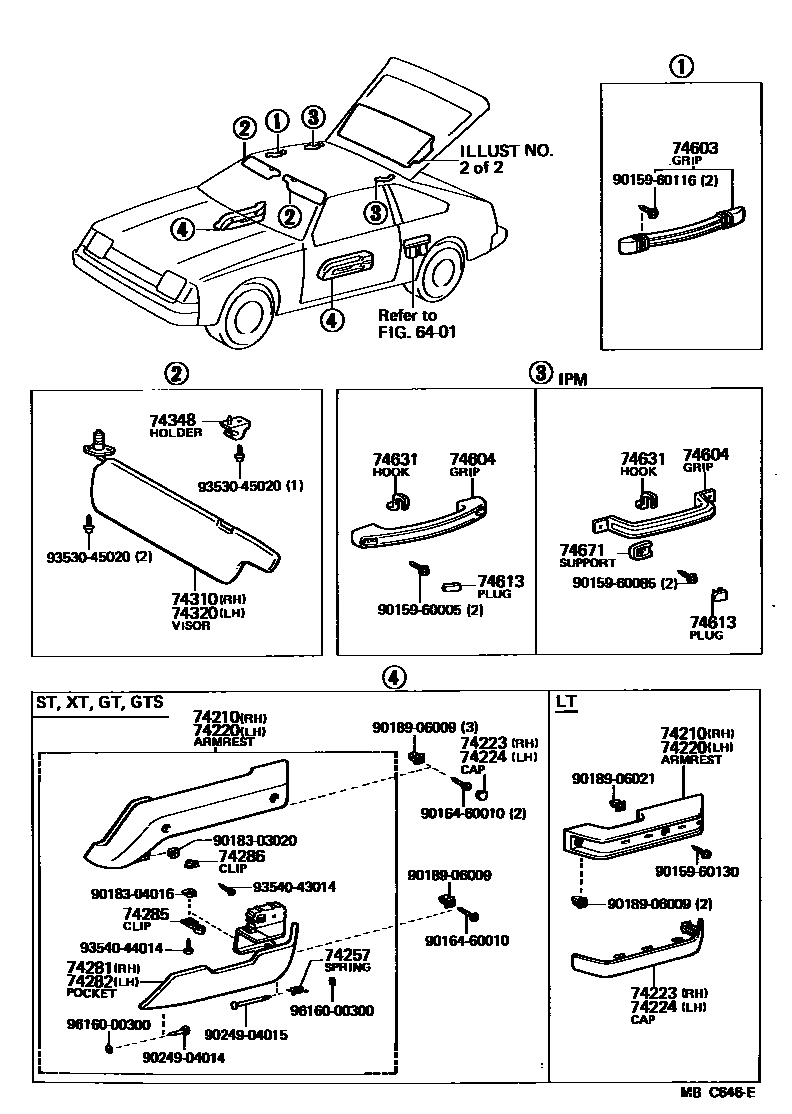

Parts diagram
6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
→ Go to FIG 64-01
74210ARMREST ASSY, FRONT, RH
main74210-12050-01i198108-198308
BLACK,BLACK,TRIM2#
main74210-12050-14i198108-198308
BLUE,BLUE,TRIM8#
main74210-12050-16i198108-198308
DARK BROWN,BROWN,TRIM4#
main74210-14080-01i198108-198507
BLACK,BLACK,TRIM2#
main74210-14080-04i198108-198507
BLUE,BLUE,TRIM8#
main74210-14080-06i198108-198507
DARK BROWN,BROWN,TRIM4#
main74210-14090-01i198112-198308
BLACK,BLACK,TRIM2#
main74210-14090-02i198208-198308
TERRA COTTA,RED/MAROON,TRIM3#
main74210-14090-02i198209-198308
GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#
main74210-14090-04i198112-198308
BLUE,BLUE,TRIM8#
main74210-14090-06i198112-198308
DARK BROWN,BROWN,TRIM4#
main74210-14110-01i198308-198512
BLACK,BLACK,TRIM2#
main74210-14110-02i198308-198512
DEEP MAROON,RED/MAROON,TRIM3#
main74210-14110-04i198308-198512
BLUE,BLUE,TRIM8#
main74210-14110-06i198308-198512
DARK BROWN,BROWN,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74210-12050-01i198108-198308
BLACK,BLACK,TRIM2#
main74210-12050-14i198108-198308
BLUE,BLUE,TRIM8#
main74210-12050-16i198108-198308
DARK BROWN,BROWN,TRIM4#
main74220-14080-01i198108-198507
BLACK,BLACK,TRIM2#
main74220-14080-04i198108-198507
BLUE,BLUE,TRIM8#
main74220-14080-06i198108-198507
DARK BROWN,BROWN,TRIM4#
main74220-14090-01i198112-198308
BLACK,BLACK,TRIM2#
main74220-14090-02i198208-198308
TERRA COTTA,RED/MAROON,TRIM3#
main74220-14090-02i198209-198308
GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#
main74220-14090-04i198112-198308
BLUE,BLUE,TRIM8#
main74220-14090-06i198112-198308
DARK BROWN,BROWN,TRIM4#
main74220-14110-01i198308-198512
BLACK,BLACK,TRIM2#
main74220-14110-02i198308-198512
DEEP MAROON,RED/MAROON,TRIM3#
main74220-14110-04i198308-198512
BLUE,BLUE,TRIM8#
main74220-14110-06i198308-198512
DARK BROWN,BROWN,TRIM4#
main74220-14120-01i198408-198512
W/*EL,BLACK,BLACK,TRIM2#
main74220-14120-01i198308-198512
BLACK,BLACK,TRIM2#
main74220-14120-02i198308-198512
DEEP MAROON,RED/MAROON,TRIM3#
main74220-14120-04i198308-198512
BLUE,BLUE,TRIM8#
main74220-14120-04i198408-198512
W/*EL,BLUE,BLUE,TRIM8#
main74220-14120-06i198408-198512
W/*EL,DARK BROWN,DARK BROWN,TRIM4#
74223CAP, DOOR ARMREST, RH
main74223-12020-01i198108-198308
BLACK,BLACK,TRIM2#
main74223-12020-04i198108-198308
BLUE,BLUE,TRIM8#
main74223-12020-06i198108-198308
DARK BROWN,BROWN,TRIM4#
main74223-14020-01i198108-198507
BLACK,BLACK,TRIM2#
main74223-14020-04i198108-198507
BLUE,BLUE,TRIM8#
main74223-14020-06i198108-198507
DARK BROWN,BROWN,TRIM4#
main74266-14030-01i198112-198512
BLACK,BLACK,TRIM2#
main74266-14030-02i198208-198308
TERRA COTTA,RED/MAROON,TRIM3#
main74266-14030-02i198209-198308
GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#
main74266-14030-04i198112-198512
BLUE,BLUE,TRIM8#
main74266-14030-06i198112-198512
DARK BROWN,BROWN,TRIM4#
main74266-14030-12i198308-198512
DEEP MAROON,RED/MAROON,TRIM3#
74224CAP, DOOR ARMREST, LH
main74223-12020-01i198108-198308
BLACK,BLACK,TRIM2#
main74223-12020-04i198108-198308
BLUE,BLUE,TRIM8#
main74223-12020-06i198108-198308
DARK BROWN,BROWN,TRIM4#
main74223-14020-01i198108-198507
BLACK,BLACK,TRIM2#
main74223-14020-04i198108-198507
BLUE,BLUE,TRIM8#
main74223-14020-06i198108-198507
DARK BROWN,BROWN,TRIM4#
main74266-14030-01i198112-198512
BLACK,BLACK,TRIM2#
main74266-14030-02i198209-198308
GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#
main74266-14030-02i198208-198308
TERRA COTTA,RED/MAROON,TRIM3#
main74266-14030-04i198112-198512
BLUE,BLUE,TRIM8#
main74266-14030-06i198112-198512
DARK BROWN,BROWN,TRIM4#
main74266-14030-12i198308-198512
DEEP MAROON,RED/MAROON,TRIM3#
74257SPRING, ARMREST, NO.1
main74257-14030i198108-198507
RH
main74258-14010i198108-198507
LH
74281POCKET, DOOR ARMREST, RH
main74205-14020-01i198112-198512
BLACK,BLACK,TRIM2#
main74205-14020-02i198209-198308
GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#
main74205-14020-02i198208-198308
TERRA COTTA,RED/MAROON,TRIM3#
main74205-14020-04i198112-198512
BLUE,BLUE,TRIM8#
main74205-14020-06i198112-198512
DARK BROWN,BROWN,TRIM4#
main74205-14020-12i198308-198512
DEEP MAROON,RED/MAROON,TRIM3#
main74281-14020-01i198108-198507
BLACK,BLACK,TRIM2#
main74281-14020-04i198108-198507
BLUE,BLUE,TRIM8#
main74281-14020-06i198108-198507
DARK BROWN,BROWN,TRIM4#
74282POCKET, DOOR ARMREST, LH
main74206-14020-01i198112-198512
BLACK,BLACK,TRIM2#
main74206-14020-02i198209-198308
GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#
main74206-14020-02i198208-198308
TERRA COTTA,RED/MAROON,TRIM3#
main74206-14020-04i198112-198512
BLUE,BLUE,TRIM8#
main74206-14020-06i198112-198512
DARK BROWN,BROWN,TRIM4#
main74206-14020-12i198308-198512
DEEP MAROON,RED/MAROON,TRIM3#
main74282-14020-01i198108-198507
BLACK,BLACK,TRIM2#
main74282-14020-04i198108-198507
BLUE,BLUE,TRIM8#
main74282-14020-06i198108-198507
DARK BROWN,BROWN,TRIM4#
74285CLIP, DOOR ARMREST POCKET
main74285-14010-01i198108-198507
BLACK,BLACK,TRIM2#
main74285-14010-04i198108-198507
BLUE,BLUE,TRIM8#
main74285-14010-06i198108-198507
DARK BROWN,BROWN,TRIM4#
74286CLIP, DOOR ARMREST POCKET, NO.2
main74286-14010i198108-198507
74310VISOR ASSY, RH
main74310-14170-04i198108-198308
BLUE,BLUE,TRIM8#
main74310-14170-08i198108-198308
IVORY,IVORY,TRIM2#,4#
main74310-14180-04i198108-198308
BLUE,BLUE,TRIM8#
main74310-14180-08i198108-198308
IVORY,IVORY,TRIM2#,4#
main74310-14190-04i198108-198308
BLUE,BLUE,TRIM8#
main74310-14190-08i198108-198308
IVORY,IVORY,TRIM2#,4#
main74310-14210-04i198208-198308
COLD SPEC,BLUE,BLUE,TRIM8#
main74310-14210-04i198108-198308
BLUE,BLUE,TRIM8#
main74310-14210-08i198208-198308
COLD SPEC,IVORY,IVORY,TRIM2#,4#
main74310-14210-08i198108-198308
IVORY,IVORY,TRIM2#,3#,4#
main74310-14230-04i198108-198308
BLUE,BLUE,TRIM8#
main74310-14230-08i198108-198308
IVORY,IVORY,TRIM2#,3#,4#
main74310-14230-08i198208-198308
IVORY,IVORY,TRIM2#,4#
main74310-14250-04i198308-198408
BLUE,BLUE,TRIM8#
main74310-14250-05i198408-198507
BEIGE,BEIGE,TRIM4#
main74310-14250-08i198308-198408
IVORY,IVORY,TRIM2#,4#
main74310-14270-04i198108-198308
BLUE,BLUE,TRIM8#
main74310-14270-08i198108-198308
IVORY,IVORY,TRIM2#,4#
main74310-14310-03i198408-198507
GRAY,GRAY,TRIM2#
main74310-14310-04i198408-198507
BLUE,BLUE,TRIM8#
main74310-14320-03i198408-198512
FINLAND SPEC,GRAY,GRAY,TRIM2#
main74310-14320-03i198408-198507
GRAY,GRAY,TRIM2#
main74310-14320-04i198308-198507
BLUE,BLUE,TRIM8#
main74310-14320-04i198312-198512
FINLAND SPEC,BLUE,BLUE,TRIM8#
main74310-14320-05i198408-198512
FINLAND SPEC,BEIGE,BEIGE,TRIM4#
main74310-14320-05i198408-198507
BEIGE,BEIGE,TRIM4#
main74310-14320-08i198308-198408
IVORY,IVORY,TRIM2#,4#
main74310-14320-08i198312-198408
FINLAND SPEC,IVORY,IVORY,TRIM2#,3#,4#
main74310-14330-03i198408-198512
GRAY,GRAY,TRIM2#
main74310-14330-04i198308-198512
BLUE,BLUE,TRIM8#
main74310-14330-05i198408-198512
BEIGE,BEIGE,TRIM4#
main74310-14330-08i198308-198408
IVORY,IVORY,TRIM2#,3#,4#
main74310-14340-03i198408-198512
GRAY,GRAY,TRIM2#
main74310-14340-03i198408-198507
COLD SPEC,GRAY,GRAY,TRIM2#
main74310-14340-04i198308-198512
BLUE,BLUE,TRIM8#
main74310-14340-04i198308-198507
COLD SPEC,BLUE,BLUE,TRIM8#
main74310-14340-05i198408-198512
BEIGE,BEIGE,TRIM4#
main74310-14340-05i198408-198507
COLD SPEC,BEIGE,BEIGE,TRIM4#
main74310-14340-08i198308-198408
IVORY,IVORY,TRIM2#,4#
main74310-14340-08i198308-198408
IVORY,IVORY,TRIM2#,3#,4#
main74310-14340-08i198308-198408
COLD SPEC,IVORY,IVORY,TRIM2#,4#
main74310-14360-03i198408-198512
GRAY,GRAY,TRIM2#
main74310-14360-04i198308-198512
BLUE,BLUE,TRIM8#
main74310-14360-05i198408-198512
BEIGE,BEIGE,TRIM4#
main74310-14360-08i198308-198408
IVORY,IVORY,TRIM2#,3#,4#
main74320-14280-04i198204-198308
BLUE,BLUE,TRIM8#
main74320-14280-08i198204-198308
IVORY,IVORY,TRIM2#,4#
74320VISOR ASSY, LH
main74310-14170-04i198108-198204
W/HOLDER,BLUE,BLUE,TRIM8#
main74310-14170-08i198108-198204
W/HOLDER,IVORY,IVORY,TRIM2#,4#
main74310-14230-04i198108-198308
BLUE,BLUE,TRIM8#
main74310-14230-08i198108-198204
IVORY,IVORY,TRIM2#,3#,4#
main74310-14230-08i198208-198308
IVORY,IVORY,TRIM2#,4#
main74310-14330-03i198408-198512
GRAY,GRAY,TRIM2#
main74310-14330-04i198308-198512
BLUE,BLUE,TRIM8#
main74310-14330-05i198408-198512
BEIGE,BEIGE,TRIM4#
main74310-14330-08i198308-198408
IVORY,IVORY,TRIM2#,3#,4#
main74320-14280-04i198108-198308
BLUE,BLUE,TRIM8#
main74320-14280-08i198108-198308
IVORY,IVORY,TRIM2#,4#
main74320-14290-04i198204-198308
W/HOLDER,BLUE,BLUE,TRIM8#
main74320-14290-08i198204-198308
W/HOLDER,IVORY,IVORY,TRIM2#,4#
main74320-14300-04i198108-198308
BLUE,BLUE,TRIM8#
main74320-14300-08i198108-198308
IVORY,IVORY,TRIM2#,4#
main74320-14310-04i198108-198308
BLUE,BLUE,TRIM8#
main74320-14310-08i198108-198308
IVORY,IVORY,TRIM2#,3#,4#
main74320-14320-04i198208-198308
COLD SPEC,BLUE,BLUE,TRIM8#
main74320-14320-04i198204-198308
BLUE,BLUE,TRIM8#
main74320-14320-08i198208-198308
COLD SPEC,IVORY,IVORY,TRIM2#,4#
main74320-14320-08i198204-198308
IVORY,IVORY,TRIM2#,3#,4#
main74320-14350-04i198204-198308
BLUE,BLUE,TRIM8#
main74320-14350-08i198204-198308
IVORY,IVORY,TRIM2#,4#
main74320-14370-04i198108-198308
BLUE,BLUE,TRIM8#
main74320-14370-08i198108-198308
IVORY,IVORY,TRIM2#,4#
main74320-14380-03i198408-198507
GRAY,GRAY,TRIM2#
main74320-14380-04i198308-198507
BLUE,BLUE,TRIM8#
main74320-14380-05i198408-198507
BEIGE,BEIGE,TRIM4#
main74320-14380-08i198308-198408
IVORY,IVORY,TRIM2#,4#
main74320-14400-03i198408-198507
GRAY,GRAY,TRIM2#
main74320-14400-04i198308-198507
BLUE,BLUE,TRIM8#
main74320-14400-05i198408-198507
BEIGE,BEIGE,TRIM4#
main74320-14400-08i198308-198408
IVORY,IVORY,TRIM2#,4#
main74320-14410-03i198408-198512
GRAY,GRAY,TRIM2#
main74320-14410-04i198308-198512
BLUE,BLUE,TRIM8#
main74320-14410-05i198408-198512
BEIGE,BEIGE,TRIM4#
main74320-14410-08i198308-198408
IVORY,IVORY,TRIM2#,3#,4#
main74320-14420-03i198408-198512
GRAY,GRAY,TRIM2#
main74320-14420-03i198408-198507
COLD SPEC,GRAY,GRAY,TRIM2#
main74320-14420-04i198308-198507
COLD SPEC,BLUE,BLUE,TRIM8#
main74320-14420-04i198308-198512
BLUE,BLUE,TRIM8#
main74320-14420-05i198408-198512
BEIGE,BEIGE,TRIM4#
main74320-14420-05i198408-198507
COLD SPEC,BEIGE,BEIGE,TRIM4#
main74320-14420-08i198308-198408
IVORY,IVORY,TRIM2#,3#,4#
main74320-14420-08i198308-198408
IVORY,IVORY,TRIM2#,4#
main74320-14420-08i198308-198408
COLD SPEC,IVORY,IVORY,TRIM2#,4#
main74320-14430-03i198408-198507
GRAY,GRAY,TRIM2#
main74320-14430-04i198308-198507
BLUE,BLUE,TRIM8#
main74320-14430-05i198408-198507
BEIGE,BEIGE,TRIM4#
main74320-14430-08i198308-198408
IVORY,IVORY,TRIM2#,4#
main74320-14440-04i198308-198408
BLUE,BLUE,TRIM8#
main74320-14440-08i198308-198408
IVORY,IVORY,TRIM2#,3#,4#
main74320-14470-03i198408-198512
GRAY,GRAY,TRIM2#
main74320-14470-04i198408-198512
BLUE,BLUE,TRIM8#
main74320-14470-05i198408-198512
BEIGE,BEIGE,TRIM4#
74348HOLDER, VISOR
main74348-12010-08i198108-198408
IVORY,IVORY,TRIM2#,4#
main74348-12010-14i198108-198512
BLUE,BLUE,TRIM8#
main74348-12010-23i198408-198512
GRAY,GRAY,TRIM2#
main74348-12010-35i198408-198512
BEIGE,BEIGE,TRIM4#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-14030-03i198408-198512
GRAY,GRAY,TRIM2#
main74610-14030-04i198108-198512
BLUE,BLUE,TRIM8#
main74610-14030-08i198108-198408
IVORY,IVORY,TRIM2#,4#
main74610-14030-25i198408-198512
BEIGE,BEIGE,TRIM4#
74604GRIP SUB-ASSY, ASSIST, REAR
main74603-22020-08i198108-198408
*IPM,IVORY,IVORY,TRIM2#,3#,4#
main74603-22020-13i198408-198512
*IPM,GRAY,GRAY,TRIM2#
main74603-22020-14i198108-198512
*IPM,BLUE,BLUE,TRIM8#
main74603-22020-15i198408-198512
*IPM,BEIGE,BEIGE,TRIM4#
main74610-20030-04i198108-198512
BLUE,BLUE,TRIM8#
main74610-20030-08i198108-198408
IVORY,IVORY,TRIM2#,3#,4#
main74610-20030-13i198408-198512
GRAY,GRAY,TRIM2#
main74610-20030-25i198408-198512
BEIGE,BEIGE,TRIM4#
74613PLUG, ASSIST GRIP
main74617-14010-08i198108-198408
IVORY,IVORY,TRIM2#,4#
main74617-14010-13i198408-198512
IVORY,GRAY,TRIM2#,3#,4#
main74617-14010-14i198108-198512
BLUE,BLUE,TRIM8#
main74617-14010-25i198408-198512
BEIGE,BEIGE,TRIM4#
main74617-22010-08i198108-198408
*IPM,IVORY,IVORY,TRIM2#,3#,4#
main74617-22010-23i198408-198512
*IPM,GRAY,GRAY,TRIM2#
main74617-22010-24i198108-198512
*IPM,BLUE,BLUE,TRIM8#
main74617-22010-35i198408-198512
*IPM,BEIGE,BEIGE,TRIM4#
74631HOOK, COAT, A
main74631-14010-08i198108-198408
IVORY,IVORY,TRIM2#,4#
main74631-14010-14i198108-198512
BLUE,BLUE,TRIM8#
main74631-14010-23i198408-198512
GRAY,GRAY,TRIM2#
main74631-14010-35i198408-198512
BEIGE,BEIGE,TRIM4#
74671SUPPORT, ASSIST GRIP
main74671-22010-08i198108-198408
*IPM,IVORY,IVORY,TRIM2#,3#,4#
main74671-22010-23i198408-198512
*IPM,GRAY,GRAY,TRIM2#
main74671-22010-24i198108-198512
*IPM,BLUE,BLUE,TRIM8#
main74671-22010-35i198408-198512
*IPM,BEIGE,BEIGE,TRIM4#
9015960005
main90159-60005
9015960085
main90159-60085
9015960116
main90159-60116
9015960130
main90159-60130
9016460010
main90164-60010
9018303020
main90183-03020
9018304016
main90183-04016
9018906009
main90189-06009
9018906021
main90189-06021
9024904014
main90249-04014
9024904015
main90249-04015
9353045020
main93530-45020
9354043014
main93540-43014
9354044014
main93540-44014
9616000300
main96160-00300

33 parts on this diagram · 4 diagrams in section

ARMREST & VISOR for Toyota CELICA

This section contains 61 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CELICA. Key components include: INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING, ARMREST ASSY, FRONT, RH, PANEL SUB-ASSY, DOOR ARMREST UPPER, ARMREST ASSY, FRONT, LH, CAP, DOOR ARMREST, RH.
