Toyota CELICA — ANTENNA

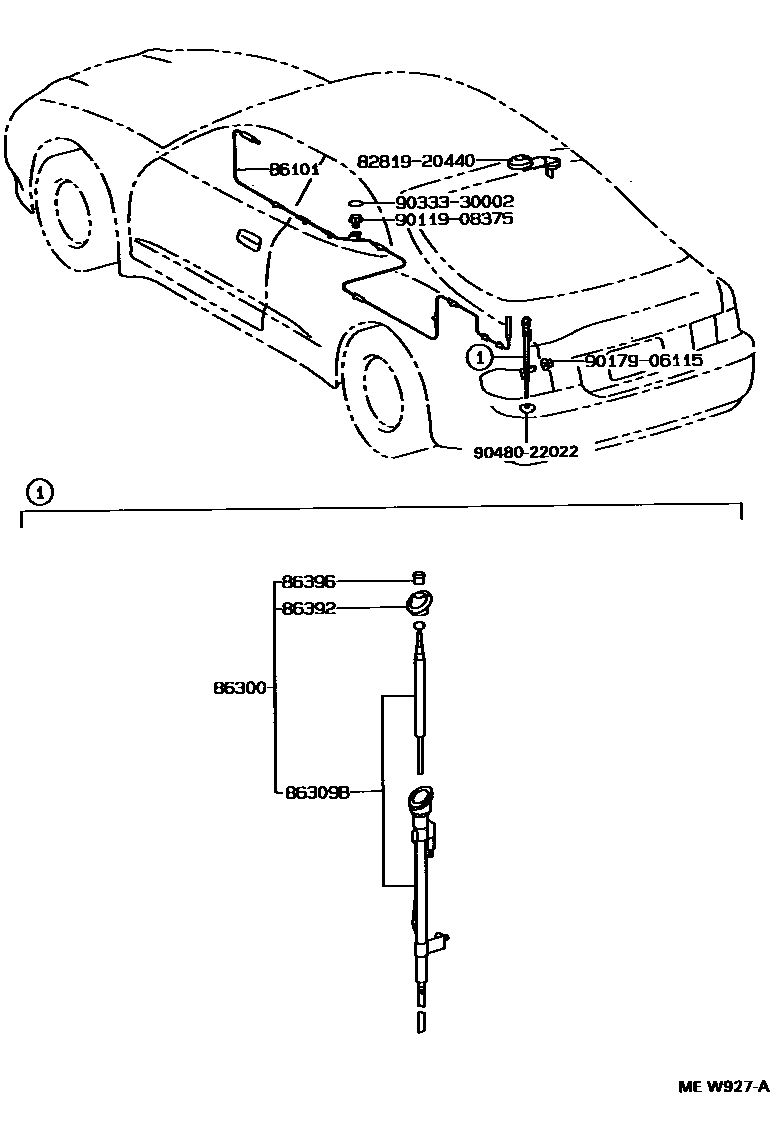

Parts diagram

86101CORD SUB-ASSY, ANTENNA

main86101-20640i199311-199508

main86101-20641i199508

86300ANTENNA ASSY, W/HOLDER

main86300-2B190i199311-199508

main86300-2B200i199311-199506

AUTOMATIC ANTENNA

main86300-2B201i199506

AUTOMATIC ANTENNA

86309BPOLE SUB-ASSY, PULL TOP ANTENNA

main86309-20270i199311-199508

86392ORNAMENT, ANTENNA

main86392-20180i199311-199508

main86392-20190i199311-199611

main86392-20191i199611

86396NUT, ANTENNA

main86396-12020i199311-199508

main86396-20030i199311

AUTOMATIC ANTENNA

8281920440GROMMET, WIRING HARNESS

main82819-20440

9011908375

main90119-08375

9017906115

main90179-06115

9033330002

main90333-30002

9048022022

main90480-22022

10 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota CELICA

This section contains 12 genuine Toyota parts for the ANTENNA system of the Toyota CELICA. Key components include: RELAY, MOTOR ANTENNA CONTROL, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, PULL TOP ANTENNA, ROD & PIPE, SEALED W/CABLE.
