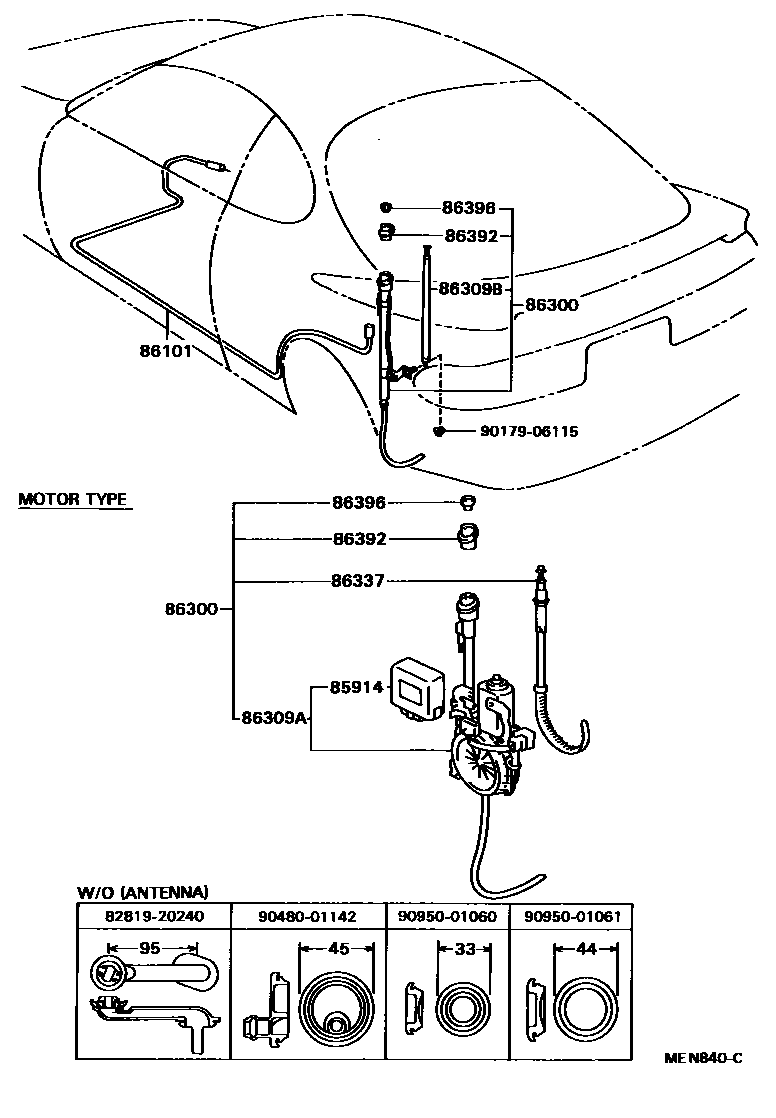

Toyota CELICA — ANTENNA

0001 1 0002 1

85914RELAY, MOTOR ANTENNA CONTROL

main85914-30010iST184..CP198910-199311

86101CORD SUB-ASSY, ANTENNA

main86101-20380iST184..CP198910-199311

86300ANTENNA ASSY, W/HOLDER

main86300-20670iST184,185..LB198910-199002

MOTOR TYPE

sub86300-20671

main86300-20671iST182199002-199311

MOTOR TYPE

main86300-20680iAT180..LB198911-199108

MANUAL TYPE

sub86300-20681

main86300-20680iST182198911-199108

MANUAL YYPE

sub86300-20681

main86300-20681iST182199108-199311

MANUAL TYPE

main86300-20681iAT180199108-199311

MANUAL YYPE

main86300-20690iAT180..CP198911-199108

MANUAL TYPE

sub86300-20691

main86300-20700iAT180..CP198910-199311

MOTOR TYPE

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-20220iAT180,ST184..CP198910-199311

main86309-20230iAT180,ST18#..LB198910-199002

sub86309-20231

main86309-20231iAT180,ST18#..LB199002-199311

86309BPOLE SUB-ASSY, PULL TOP ANTENNA

main86309-20200iAT180..CP198911-199108

sub86309-20201

main86309-20210iAT180,ST182..LB198911-199108

sub86309-20211

main86309-20211iAT180,ST182199108-199311

86337ROD & PIPE, SEALED W/CABLE

main86337-32200iAT180,ST18#198910-199311

86392ORNAMENT, ANTENNA

main86392-20110iAT180..CP198911-199108

MANUAL TYPE

main86392-20120iAT180..LB198911-199311

MANUAL TYPE

main86392-20130iST184..CP198910-199311

MOTOR TYPE

main86392-20140iST182198911-199311

MOTOR TYPE

86396NUT, ANTENNA

main86396-12020iST182198911-199311

MANUAL TYPE

main86396-50010iST182198910-199311

MOTOR TYPE

8281920240GROMMET, WIRING HARNESS

main82819-20240

9017906115

main90179-06115

9048001142

main90480-01142

9095001060

main90950-01060

9095001061

main90950-01061

13 parts on this diagram · 2 diagrams in section
