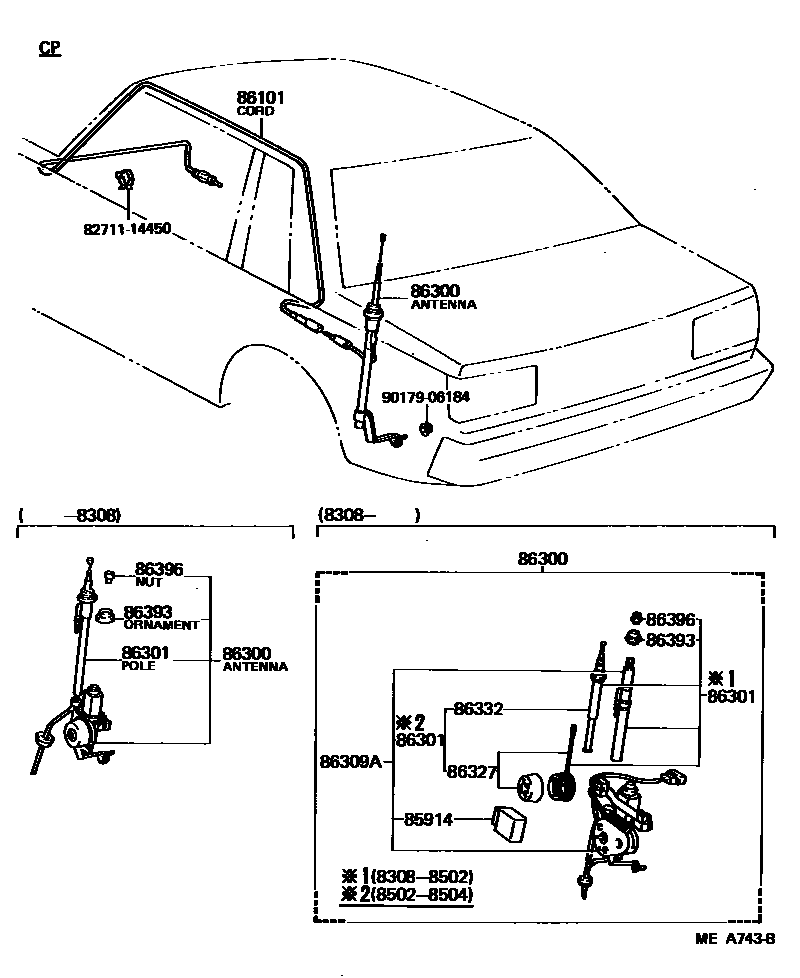

Toyota CELICA — ANTENNA

85914RELAY, MOTOR ANTENNA CONTROL

main85914-14020i198308-198512

86101CORD SUB-ASSY, ANTENNA

main86101-14280i198108-198507

main86101-14330i198108-198512

86300ANTENNA ASSY, W/HOLDER

main86300-14240i198108-198507

PULL TOP

main86300-14250i198108-198308

MOTOR

main86300-14270i198108-198308

MOTOR

main86300-14280i198108-198507

PULL TOP

main86300-14320i198308-198502

MOTOR

main86300-14321i198502-198507

MOTOR

main86300-14330i198308-198502

MOTOR

main86300-14331i198502-198512

MOTOR

86301POLE SUB-ASSY, ANTENNA

main86301-14251i198108-198404

main86301-14271i198108-198308

main86301-14331i198308-198404

main86353-14320i198407-198502

main86353-14330i198404-198407

main86353-32070i198502-198504

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-14190i198308-198502

main86309-14191i198502-198507

main86309-14200i198308-198502

main86309-14201i198502-198512

86327CABLE, W/ANTENNA DRUM

main86327-22210i198308-198512

86332ROD, ANTENNA

main86332-14321i198308-198502

main86336-22210i198502-198512

86393ORNAMENT, ANTENNA

main86392-14050i198108-198502

main86392-14051i198502-198507

main86392-14060i198108-198502

main86392-14061i198502-198512

86396NUT, ANTENNA

main86396-14040i198108-198502

main86396-14041i198502-198507

8271114450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14450

9017906184

main90179-06184

11 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota CELICA

This section contains 13 genuine Toyota parts for the ANTENNA system of the Toyota CELICA. Key components include: RELAY, MOTOR ANTENNA CONTROL, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, ANTENNA, POLE SUB-ASSY, MOTOR ANTENNA.
