Toyota CELICA — ALTERNATOR

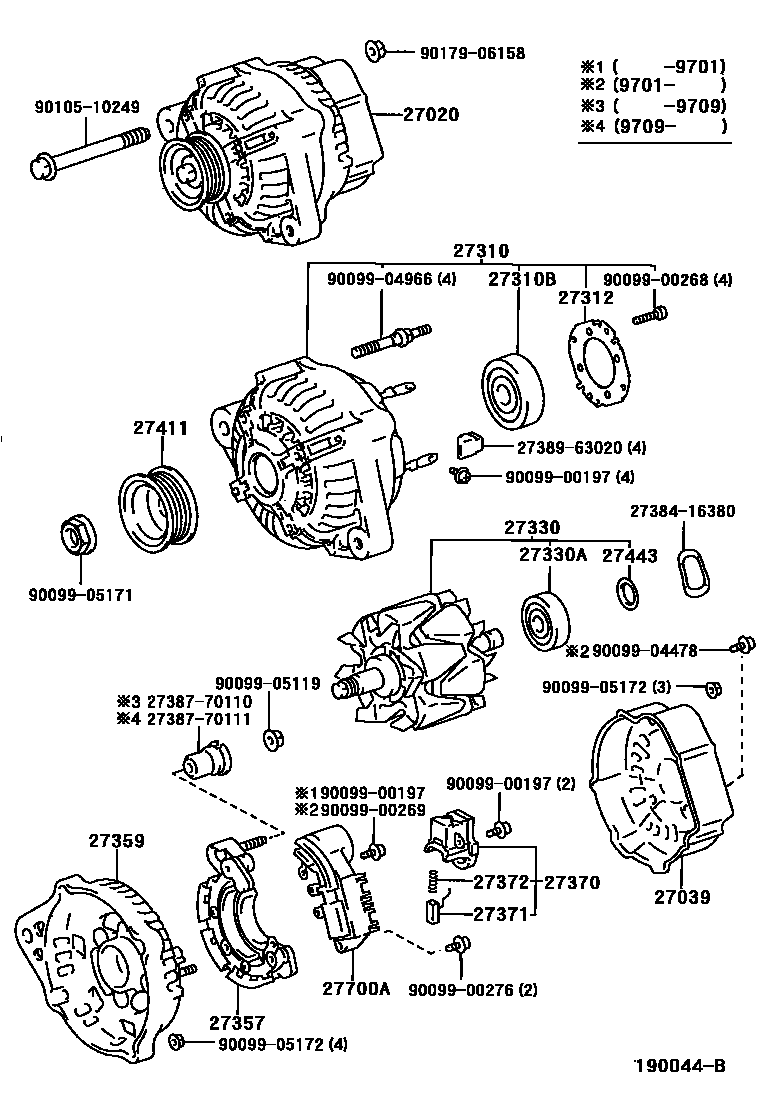

Parts diagram

27020ALTERNATOR ASSY

main27060-74380i199311

12V 70A

main27060-74390i199311

12V 80A

main27060-74490i199402

12V 80A

main27060-74510i199311-199703

12V 70A

main27060-74520i199703

12V 80A

27039COVER, ALTERNATOR REAR END

main27039-74380i199311-199701

main27039-74381i199701-199703

NO.1

main27039-74390i199311-199508

NO.1

main27039-74440i199311-199508

NO.2

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-70100i199703

main27310-74120i199311

main27310-74440i199402

main27310-74480i199703

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i199703

main90099-10192i199311-199703

27312PLATE, RETAINER

main27312-42010i199703

main27312-70200i199703

27330ROTOR ASSY, ALTERNATOR

main27330-64570i199701-199703

main27330-72101i199311-199701

main27330-76030i199311-199703

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i199311

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-70081i199311-199701

main27357-74260i199311-199703

main27357-74380i199701-199703

27359FRAME, ALTERNATOR RECTIFIER END

main27359-74120i199402

main27359-74130i199311-199601

main27359-74131i199701-199703

main27359-74132i199701

main27359-74140i199311

main27359-74480i199311-199703

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i199311-199703

main27370-75060i199311-199703

27371BRUSH, ALTERNATOR

main27371-70300×2i199311-199703

27372SPRING, ALTERNATOR BRUSH

main27372-63020×2i199311-199703

27411PULLEY, ALTERNATOR

main27411-16211i199311-199703

main27411-42030i199311-199703

main27411-74050i199402

27443COVER, ALTERNATOR BEARING

main27443-63020i199311

27700AREGULATOR ASSY, GENERATOR

main27700-74030i199311

main27700-74040i199311

2738416380WASHER

main27384-16380

2738770110INSULATOR, TERMINAL

main27387-70110

2738770111INSULATOR, TERMINAL

main27387-70111

2738963020INSULATOR, TERMINAL

main27389-63020

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510249

main90105-10249

9017906158

main90179-06158

30 parts on this diagram · 5 diagrams in section

ALTERNATOR for Toyota CELICA

This section contains 57 genuine Toyota parts for the ALTERNATOR system of the Toyota CELICA. Key components include: ALTERNATOR ASSY, DUCT SUB-ASSY, ALTERNATOR AIR, COVER, ALTERNATOR REAR END, SEAL, ALTERNATOR PLATE, DUCT, ALTERNATOR, NO.1.
