Toyota CELICA — ALTERNATOR

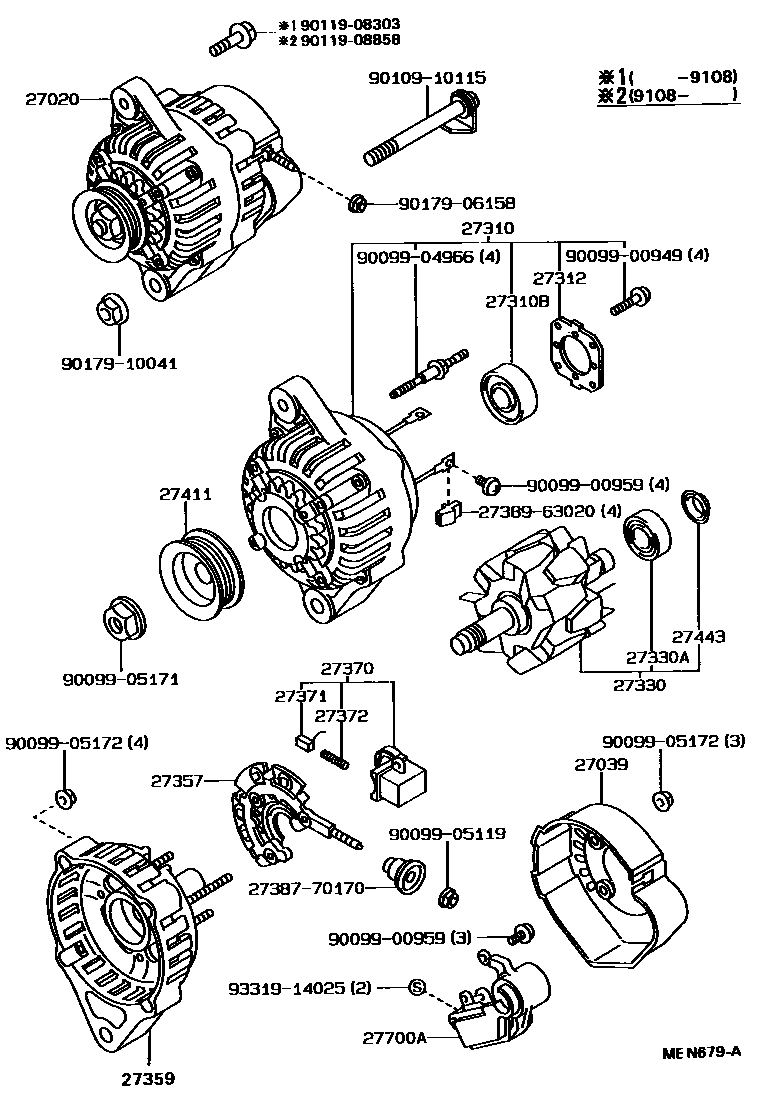

Parts diagram

27020ALTERNATOR ASSY

main27060-16170i198911-199311

12V 70A

main27060-74130i198910-199108

12V 70A

main27060-74140i198911-198912

12V 70A

main27060-74150i198910-199108

12V 70A

main27060-74190i198910-199108

12V 70A

main27060-74210i199108-199211

12V 70A

main27060-74260i198912-199108

12V 70A

main27060-74290i199108-199202

12V 80A

main27060-74291i199202-199211

12V 80A

main27060-74300i199108-199311

12V 80A

main27060-74450i199211-199311

12V 70A

main27060-74460i199211-199311

12V 80A

27039COVER, ALTERNATOR REAR END

main27039-15170i199109-199311

main27039-70081i198910-198912

main27039-72010i198911-199109

main27039-74140i198910-198912

main27039-74380i199211-199311

main27039-74390i199211-199311

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16190i198911-199311

main27310-42050i198910-199108

main27310-70100i198912-199311

main27310-74110i198912-199108

main27310-74120i198910-199108

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10160i198910-199108

main90099-10178i198910-198912

main90099-10192i198910-198912

27312PLATE, RETAINER

main27312-42010i198910-198912

main27312-70200i198912-199311

27330ROTOR ASSY, ALTERNATOR

main27330-42010i198912-199012

main27330-72101i198910-198912

main27330-76030i199012-199311

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i198910-199311

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i198911-199311

main27357-70081i198910-198912

main27357-74120i198912-199108

main27357-74140i198910-199108

main27357-74260i199211-199311

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16151i198911-199311

main27359-74120i198910-199311

main27359-74130i198912-199311

main27359-74140i198912-199311

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i199207-199311

main27370-42010i198910-198912

main27370-63021i198910-198912

main27370-70300i199105-199108

main27370-75060i199108-199311

27371BRUSH, ALTERNATOR

main27371-63020×2i198910-198912

main27371-70300×2i199108-199311

27372SPRING, ALTERNATOR BRUSH

main27372-63020×2i199108-199311

main27372-72100×2i198910-198912

27411PULLEY, ALTERNATOR

main27411-16180i199108-199311

main27411-16211i199108-199311

main27411-42030i199108-199311

main27411-74050i199108-199311

27443COVER, ALTERNATOR BEARING

main27443-63020i198910-199311

27700AREGULATOR ASSY, GENERATOR

main27700-16010i198910-198912

main27700-46030i199109-199211

main27700-70030i198911-199311

main27700-72080i198912-199108

main27700-74010i199009-199109

main27700-74030i199211-199311

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010910115

main90109-10115

9011908303

main90119-08303

9011908858

main90119-08858

9017906158

main90179-06158

9017910041

main90179-10041

9331914025

main93319-14025

29 parts on this diagram · 5 diagrams in section

ALTERNATOR for Toyota CELICA

This section contains 61 genuine Toyota parts for the ALTERNATOR system of the Toyota CELICA. Key components include: ALTERNATOR ASSY, DUCT SUB-ASSY, ALTERNATOR AIR, COVER, ALTERNATOR REAR END, SEAL, ALTERNATOR PLATE, DUCT, ALTERNATOR, NO.1.
